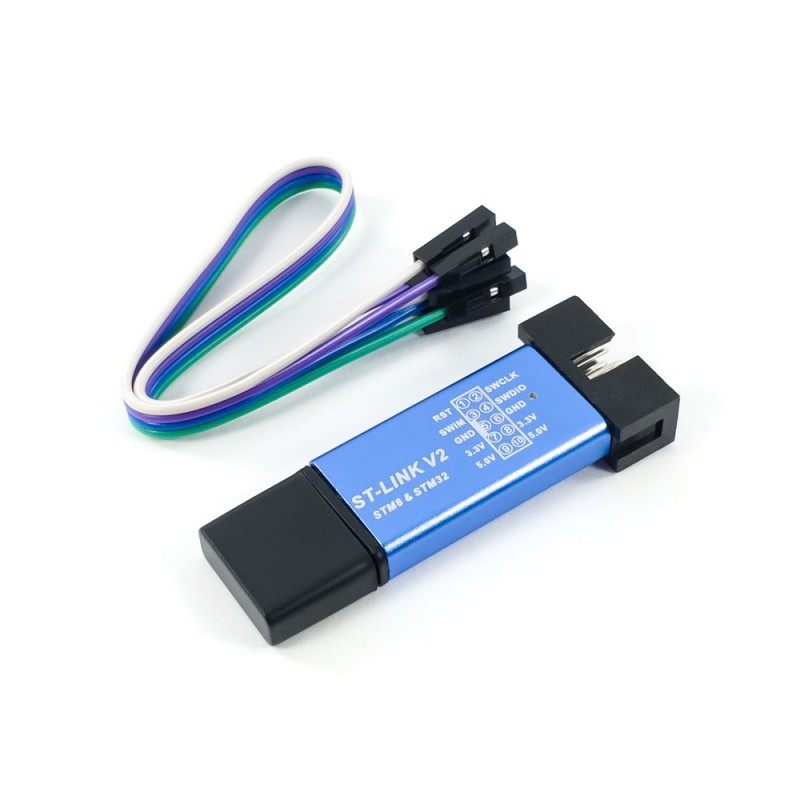

    ST-Link V2 Programmer - Original Chipset STM32F103C8T6 Robotics Bangladesh
    • ST-Link V2 Programmer - Original Chipset STM32F103C8T6 Robotics Bangladesh

    ST-Link V2 Programmer Imported Chipset STM32F103C8T6

    RBD-3000

    • PCB installed inside of aluminum alloy U disk shell, portable, safe and reliable!
    • Interface definition directly marked on the shell, clear, convenient and practical!
    • 5V, 3.3V offers at the same time, allowing you to program your target board with both 5V and 3.3V
    • Shell characters using laser engraving, never fade off! Permanent clarity!
    • 500MA internal resettable fuse, complete protection of your expensive computer motherboard!
    • SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector
    • SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed

    Although this ST-Link V2 is a clone version made in China, it features an original imported STM chipset, ensuring high speed and reliable performance.

    BDT 650
    BDT 650 BDT 650 BDT 650 BDT 650
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 650 Tax excluded
    BDT 650 Tax included
    BDT 0 Tax
    BDT 650 Tax excluded
    BDT 0 Tax
    BDT 650 Tax included
    Quantity
    In-Stock
    33 Items

    98 people have purchased this item
    5 people recently added this item to the cart
    33 items in stock
    Description

    ST-Link V2 Programmer For STM8 and STM32 is fully consistent with the official version, support for automatic upgrades, support the full range STM32 SWD (only 4pins including SWCLK, SWDIO, and power) and a full range STM8 SWIM (only 4pins including SWIM, Reset and power) download and debug.

    Use this device to send program code to the 32-bit STM32 ARM Cortex or 8-bit STM8 microcontrollers. The header for this ST-Link v2 programmer contains connections for 5V, 3.3V, SWCLK, SWDIO, SWIM, Reset (RST/NRST) and GND. The connector on the opposite side of this device is a USB connector and is intended to be plugged into the computer. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    To upgrade the programmer using STM32CubeProgrammer you need to enable the "Shared" options. Screenshot 2024-06-04 143904_1.jpg

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Note: The product is available in Multiple colors Will be shipped randomly. RoboticsBD

    Supports For ST-LINK V2 :

    1. ST-LINK Utility 2.0 and above.
    2. STVD 4.2.1 and above.
    3. STVP 3.2.3 and above.
    4. IAR EWARM V6.20 and above.
    5. IAR EWSTM8 V1.30 and above.
    6. KEIL RVMDK V4.21 and above.

    Features :

    1. PCB installed inside of aluminum alloy U disk shell, portable, safe and reliable!
    2. Interface definition directly marked on the shell, clear, convenient and practical!
    3. 5V, 3.3V offers at the same time, allowing you to program your target board with both 5V and 3.3V
    4. Shell characters using laser engraving, never fade off! Permanent clarity!
    5. 500MA internal resettable fuse, complete protection of your expensive computer motherboard!
    6. Red and blue color LED indicator, allowing you to always observe ST-LINK V2 working condition!
    7. With 4 DuPont line, so you can easily respond to different target board line order!
    8. Use anti-static bag packaging. RoboticsBD
    9. Direct firmware update feature supported (DFU)
    10. Status LED which blinks during communication with the PC
    11. Operating temperature 0 to 50°C

    SWIM specific features:

    • SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector
    • 1.65 V to 5.5 V application voltage supported on SWIM interface
    • SWIM low-speed and high-speed modes supported
    • SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed

    • SWIM cable for connection to the application

    Product Applications:

    1. Microcontroller Programming: Ideal for programming STM8 and STM32 microcontrollers.
    2. Debugging: Suitable for debugging applications using SWD or SWIM interfaces.
    3. Firmware Development: Useful for firmware development and updates.
    4. Educational Purposes: A valuable tool for learning microcontroller programming and debugging.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specifications
    ChipsetSTM32F103C8T6
    Supported InterfacesSWD (STM32), SWIM (STM8)
    Voltage Support1.65V to 5.5V
    SWIM Programming Speed RateLow speed: 9.7 Kbytes/s, High speed: 12.8 Kbytes/s
    Operating Temperature0 to 50°C
    LED IndicatorsRed and blue for working condition status
    ProtectionResettable 500mA fuse for overcurrent protection
    Shell MaterialAluminum alloy
    ConnectivityUSB (to computer), 4 DuPont lines (to target board)
    Additional FeaturesDirect firmware update (DFU), laser-engraved shell markings
    Height (mm)8.5
    Weight (g)15
    Shipping Weight0.018 kg
    Shipping Dimensions7 × 3 × 3 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation :

    1. ST-LINK/V2 in-circuit debugger/programmer for STM8 and STM32
    2. Programming STM8 MCU

    Package Includes:

    1 x ST-Link V2 Programmer For STM8 and STM32.

    1 x Connecting Wires.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Product Details
    RBD-3000
    33 Items

    Specific References

    EAN13
    3000
