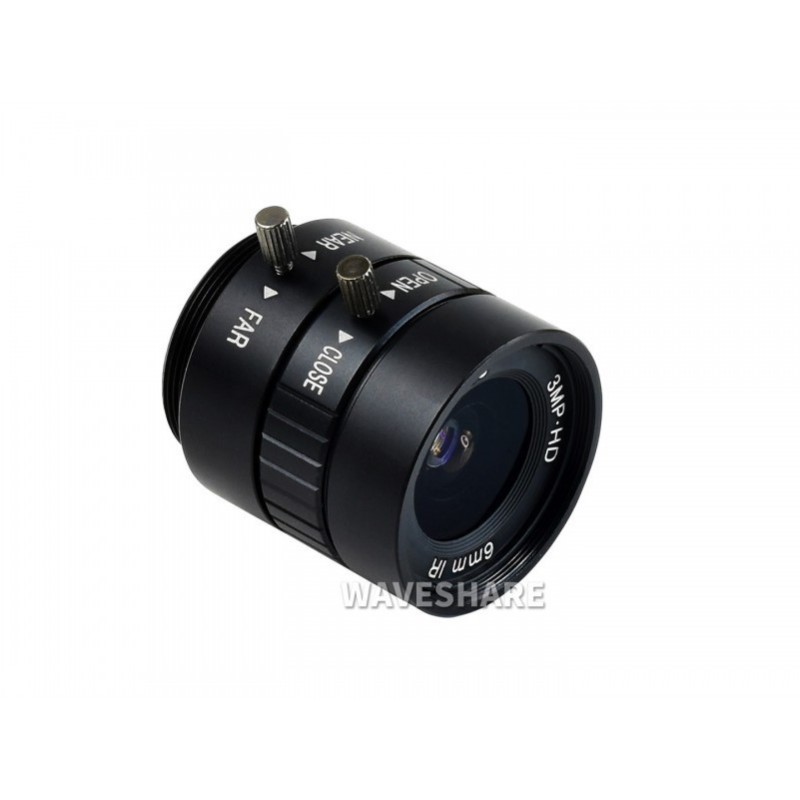

The 6mm Wide Angle Lens from Waveshare is a high-quality, industrial-grade lens designed for use with the Raspberry Pi High Quality Camera. Featuring a 6mm focal length and a 63° field of view, this wide angle lens allows users to capture broader scenes with exceptional clarity. Its CS-mount design ensures compatibility and easy installation with the Raspberry Pi HQ Camera module. Built with durable materials, this lens is suitable for a variety of applications, including photography, surveillance, machine vision, and embedded vision projects. Compact and lightweight, it offers excellent performance for both hobbyists and professionals working with Raspberry Pi imaging solutions. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Wide Field of View – 63° angle for capturing larger areas in one frame.
6mm Focal Length – Delivers wide-angle imaging ideal for close-range photography.
CS-Mount Compatibility – Designed specifically for Raspberry Pi High Quality Camera.
Industrial-Grade Build – Ensures durability and long-term reliable performance.
Versatile Applications – Perfect for photography, security cameras, and vision-based projects.
Lightweight Design – Easy to carry, install, and integrate into any setup.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Raspberry Pi photography and videography projects.
DIY surveillance and monitoring systems.
Robotics and machine vision applications.
Smart home and IoT imaging solutions.
Educational and research projects involving image processing.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Product Type | Wide Angle Lens |
| Focal Length | 6mm |
| Field of View | 63° |
| Lens Mount | CS-Mount |
| Compatibility | Raspberry Pi High Quality Camera |
| Build Quality | Industrial-grade |
| Use Case | Photography, Surveillance, Machine Vision |
| Shipment Weight | 0.1089 kg |
| Shipment Dimensions | 7 × 7 × 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
6MM WIDE ANGLE LENS
6mm CS-Mount Wide Angle Lens For Raspberry Pi High Quality Camera
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Wider Field Of View
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Fitting To The Camera
Fitting The Lens To Raspberry Pi High Quality Camera (C-CS Adapter Should Be Removed)
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Working With Raspberry Pi
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Lens Selection
| PRODUCT |
6mm Wide Angle Lens |
16mm Telephoto Lens |
25mm Telephoto Lens |
35mm Telephoto Lens |
8-50mm Zoom
Lens |
100X Microscope Lens for Pi |
|---|
| IMAGE FORMAT | 1/2" | 1" | 2/3" | 1" | 1/2.3" | 1/2" |
|---|
| FOCAL LENGTH | 6mm | 16mm | 25mm | 35mm | 8-50mm | - |
|---|
| APERTURE | F1.2 | F1.4-16 | F1.4-16 | F1.7-16 | F1.4 | - |
|---|
| OPTICAL MAGNIFICATION | - | 0.12X~1.8X |
|---|
| ZOOM RATIO | - | 15:01 |
|---|
| MOUNT | CS-mount | C-mount | C/CS-mount |
|---|
| ANGLE OF VIEW | 63° | 1" 44.6° × 33.6°
2/3" 30.0° × 23.2°
1/1.8" 24.7° × 18.6°
1/2" 21.8° ×16.4° | 2/3" 20.2° × 15.1°
1/1.8" 16.5° × 12.4°
1/2" 14.5° × 10.5° | 1" 20.9° × 15.8°
2/3" 14.4° × 10.8°
1/2" 10.5° × 7.9° | 45°-5.35° | - |
|---|
| BACK FOCUS | 7.53mm | 17.53mm | - |
|---|
| OPTICAL LENGTH | - | 67.53mm | - |
|---|
| DISTORTION | - | 1"（-0.7%）
1/2"（-0.5%）
1/3"（-0.15%） | 0.05% | 0.35% | - | < -0.1% |
|---|
| M.O.D. | 0.20m | 0.20m | 0.25m | 0.30m | 0.20m | 2.4mm |
|---|
| DIMENSIONS | Φ30.00 × 34.00mm | Φ39.00 × 50.00mm | Φ34.00 × 34.00mm | Φ35.00 × 34.00mm | Φ40.00×68.30mm | Φ39.00×112.00mm |
|---|
| OPERATION | Manual aperture adjustment | Fixed aperture |
|---|
| WEIGHT | 53g | 133.7g | 82g | 78g | 148g | 202g |
|---|
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Resources & Services
Wiki: www.waveshare.com/wiki/Raspberry_Pi_HQ_Camera
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x 6mm Wide Angle Lens for Raspberry Pi High Quality Camera Waveshare
