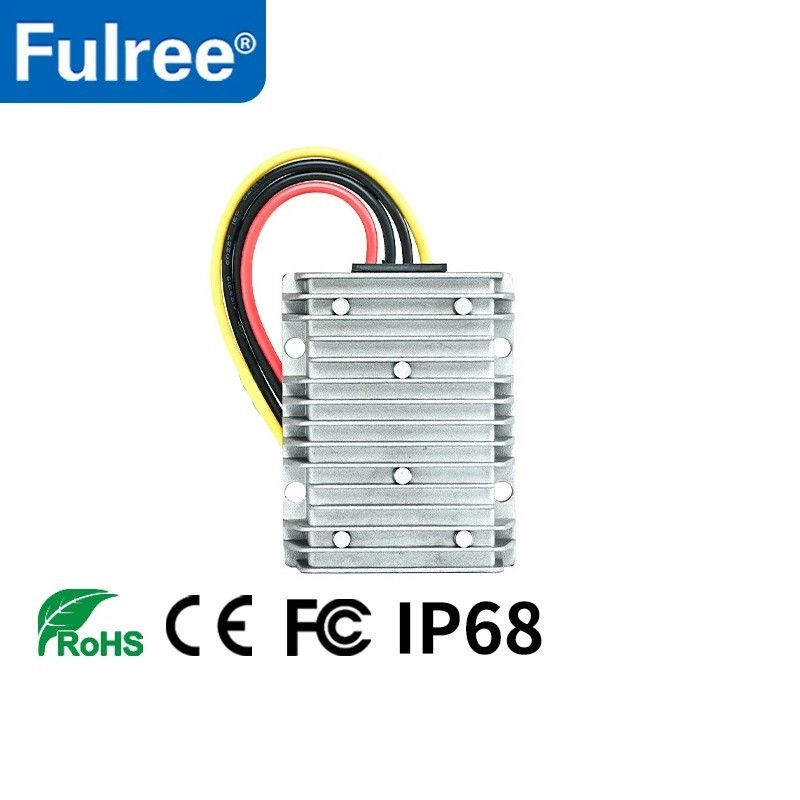

Fulree F35J5V10A5L 5V 10A DC-DC Buck Power Converter

Reference RBD-3201

Fulree F35J5V10A5L DC-DC Buck Converter provides 5V 10A (50W) stable output.
Wide input range: 10V–35V DC, suitable for automotive and industrial use.
High efficiency >93% ensures minimal power loss.
IP68 waterproof enclosure for outdoor or harsh environments.
Built-in overcurrent, overheat, and short-circuit protection.
Ideal for vehicles, renewable energy, IoT, and industrial power systems.

Description
Product Details

Description

The Fulree F35J5V10A5L 5V 10A DC-DC Buck Power Converter is a high-performance, waterproof voltage regulator designed for reliable 5V power delivery in demanding environments. With a wide 10–35V input range, it efficiently converts voltage for automotive, solar, and industrial applications. Its >93% conversion efficiency, IP68-rated housing, and multiple protection features ensure dependable operation with minimal heat and noise. Compact and rugged, this converter is ideal for powering dash cameras, GPS modules, sensors, controllers, and IoT devices that require a consistent 5V supply. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

High Efficiency: Converts DC 10–35V input to 5V output with >93% efficiency.
High Output Power: Supports up to 10A load current (50W maximum output).
Stable Regulation: Maintains precise voltage even under load variation.
Rugged Design: Encased in IP68 waterproof housing for outdoor or automotive use.
Built-in Protection: Safeguards against overcurrent, overheating, and short circuits.
Silent Operation: Uses passive air convection for cooling—no fans required.
Compact and Lightweight: Measures only 74 x 74 x 32 mm for easy mounting.
Wide Compatibility: Works with 12V/24V vehicle systems and industrial setups.
Extended Temperature Range: Operates reliably from -40°C to +80°C.
Easy Installation: Simple wiring and automatic voltage adjustment on power-up.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Automotive Electronics: Powers car accessories like GPS, dashcams, and DVRs.
Industrial Control Systems: Supplies 5V to sensors, PLCs, and controllers.
Renewable Energy Systems: Converts solar or wind power for 5V devices.
IoT Projects: Provides stable DC output for Wi-Fi modules and edge devices.
Marine or Outdoor Equipment: Waterproof design suitable for boats and field instruments.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Model	Fulree F35J5V10A5L
Input Voltage Range	DC 10V – 35V
Output Voltage	DC 5V
Output Current	10A
Output Power	50W
Conversion Efficiency	>93%
Ripple	<150mV
No-load Current	<100mA
Waterproof Rating	IP68
Cooling Method	Passive (air convection)
Operating Temperature	-40°C to +80°C
Dimensions	74 × 74 × 32 mm
Protection Features	Overcurrent, overheat, short-circuit
Applications	Automotive, solar, industrial, IoT
Shipping Weight	0.2205 kg
Shipping Dimensions	9 × 8 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

How to Use:

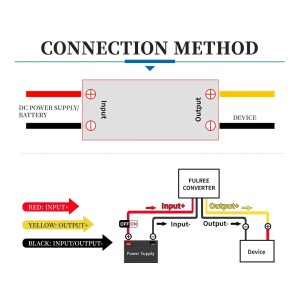

Connection:

Connect the input cables to a DC power source within the 10-35V range.
Connect the output cables to your device requiring a 5V power supply.

Installation:

Mount the device in a secure location, ensuring proper airflow or external heat dissipation if used in high temperatures.

Operation:

Once connected, the converter will automatically adjust the input voltage to maintain a stable 5V output.

Package Includes:

1 x Fulree F35J5V10A5L 5V 10A DC-DC Buck Power Converter
