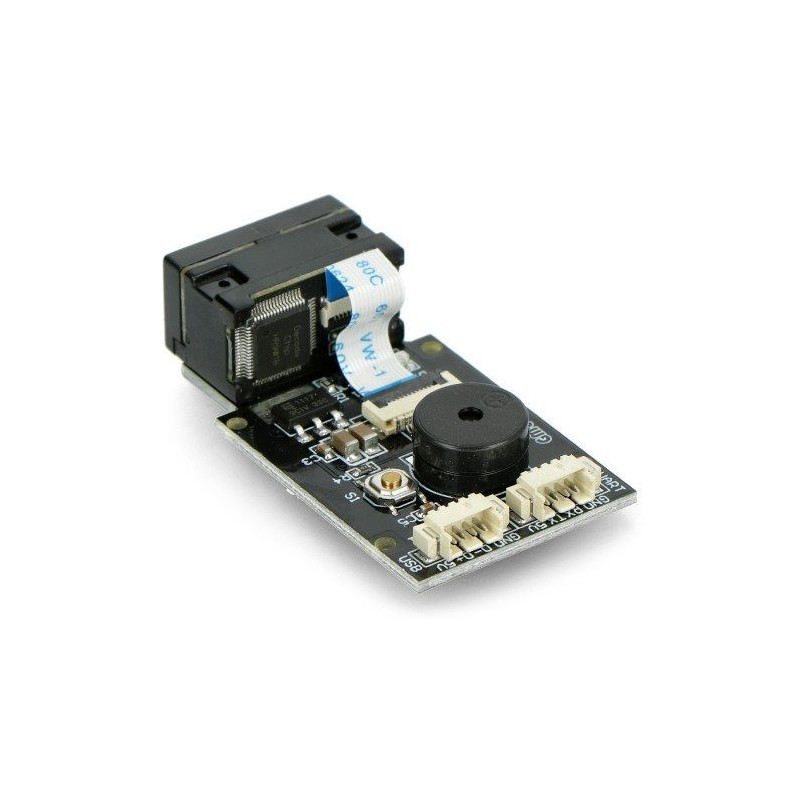

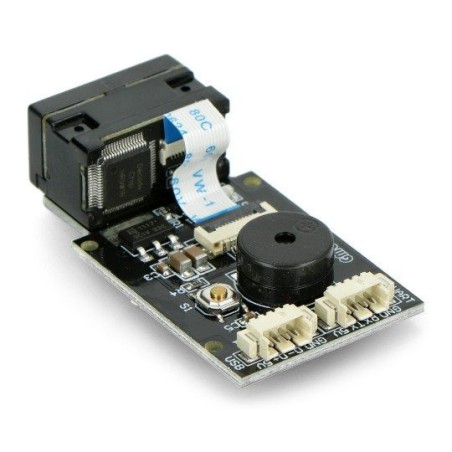

GM65 QR & Barcode Scanner Module Robotics Bangladesh

GM65 CM65 QR & Barcode Scanner Module

Reference RBD-3232

Brand DFRobot

GM65 (CM65) QR & Barcode Scanner Module for high-speed 1D/2D decoding.
Reads barcodes and QR codes from paper or screens in under 1 second.
Built-in white LED light for reliable scanning even in low-light conditions.
Supports both USB and UART interfaces for flexible integration.
Compatible with multiple 1D and 2D code standards including QR, PDF417, and Data Matrix.
Ideal for vending machines, access control, payment kiosks, and automation systems.

Description
Product Details

Description

The GM65 CM65 QR & Barcode Scanner Module is a compact and efficient scanning solution designed for seamless 1D and 2D barcode decoding. Featuring an advanced CMOS optical system and intelligent image recognition algorithm, it can quickly identify barcodes and QR codes from both printed materials and digital screens, even under low-light conditions. Supporting USB and UART communication, it easily integrates with PCs, microcontrollers, and embedded devices. With its onboard LED illumination and robust performance across 0℃–50℃, the GM65 provides stable operation in retail, automation, and access control environments. Whether used in vending machines, kiosks, or factory automation, this scanner ensures fast and accurate data capture for industrial and commercial applications. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

High-Speed Decoding: Reads QR and barcodes within approximately 1 second.
Wide Compatibility: Supports most popular 1D and 2D codes such as QR, PDF417, EAN, and Code 128.
Dual Interface Options: Equipped with USB and UART ports for versatile connectivity.
Low-Light Operation: Integrated white LED ensures clear scanning in dim environments.
Compact and Reliable: Small form factor ideal for embedded and portable devices.
Intelligent Recognition: Built-in algorithm enables fast and accurate decoding.
Flexible Mounting: Easily embedded in vending machines, access gates, or POS terminals.
Stable Performance: Operates efficiently under varying light and temperature conditions.
Configuration Mode: Adjustable settings through scanning configuration codes.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Access Control Systems: Scan employee IDs, tickets, or passes for entry management.
Self-Service Machines: Integrate into vending machines and payment kiosks for automated scanning.
Retail & POS Systems: Speed up checkout and inventory management processes.
Automation Projects: Ideal for warehouse and logistics barcode recognition systems.
Smart Gates & Turnstiles: Enable ticket verification or QR-based entry.
IoT Devices: Use for data logging and machine communication systems.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Model	GM65 (CM65)
Optical System	CMOS
Capture Light Source	617nm LED
Lighting Source	6500K White LED
Resolution	648 × 488 pixels
Voltage	DC 5V
Current Consumption	120mA (Scanning), 30mA (Standby)
Interface	USB, UART
Scanning Angle	34° (Horizontal), 26° (Vertical)
Scan Angles	Roll 360°, Pitch ±60°, Skew ±65°
Minimum Contrast	30%
Supported 1D Codes	Code 11, Code 39, Code 128, EAN, UPC, Interleaved 2 of 5, GS1 Databar
Supported 2D Codes	QR Code, Data Matrix, PDF417
Ambient Light Tolerance	0~86000 lux
Operating Temperature	0°C ~ 50°C
Storage Temperature	-40°C ~ 70°C
Operating Humidity	10% ~ 80%
Shipment Weight	0.045 kg
Shipment Dimensions	4 × 4 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Package Includes:

1 x GM65 CM65 QR & Barcode Scanner Module
