The High Precision Milliohm Meter is a compact and reliable low-resistance and capacitance testing module designed for accurate electrical measurements. With a wide resistance range of 0.001Ω to 120Ω and an impressive 1mΩ resolution, it allows precise testing of PCB traces, battery internal resistance, inductors, and low-value resistors. Additionally, the built-in capacitance measurement function supports values from 10pF to 20000μF, making it a versatile diagnostic tool for electronics repair and development. Because it operates on a simple 7–12V DC supply and consumes less than 100mA, it ensures stable and efficient performance. Whether you are working in a laboratory, service center, or R&D environment, this module delivers fast, accurate, and repeatable results. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Wide Low-Resistance Measurement Range – Accurately measures from 0.001Ω to 120Ω, making it perfect for sensitive circuit diagnostics.
High 1mΩ Resolution – Detect even tiny resistance changes in PCB traces, coils, and battery cells.
Integrated Capacitance Testing – Supports 10pF to 20000μF with fine 1pF resolution for precise capacitor analysis.
Easy Calibration System – Built-in short-circuit and open-circuit calibration ensures reliable and repeatable measurements.
Simple User Interface – “FUN” button switches measurement mode, while “Mes/Cal” performs calibration quickly.
Low Power Consumption – Operates under 100mA, ensuring stable and efficient performance.
Compact & Portable Design – Lightweight and small form factor makes it suitable for bench and field use.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
PCB Trace Testing – Measure low resistance and verify circuit continuity during PCB repair or manufacturing.
Battery Internal Resistance Testing – Evaluate lithium-ion and lead-acid battery performance accurately.
Capacitor Health Check – Test capacitor values in SMPS and electronic circuits.
Inductor & Coil Testing – Check winding resistance with milliohm-level precision.
Automotive Electrical Diagnostics – Analyze low-resistance connections in vehicle systems.
R&D and Laboratory Work – Ideal for research labs, electronics prototyping, and quality inspection.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Product Type | Low Resistance Ohmmeter & Capacitance Tester |
| Resistance Range | 0.001Ω to 120Ω |
| Resistance Resolution | 1mΩ |
| Capacitance Range | 10pF to 20000μF |
| Capacitance Resolution | 1pF |
| Working Voltage | 7–12V DC |
| Working Current | < 100mA |
| Calibration Method | Short-circuit (Resistance), Open-circuit (Capacitance) |
| Terminal Labels | VDD, GND, R+, R-, CAP+, GND |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:

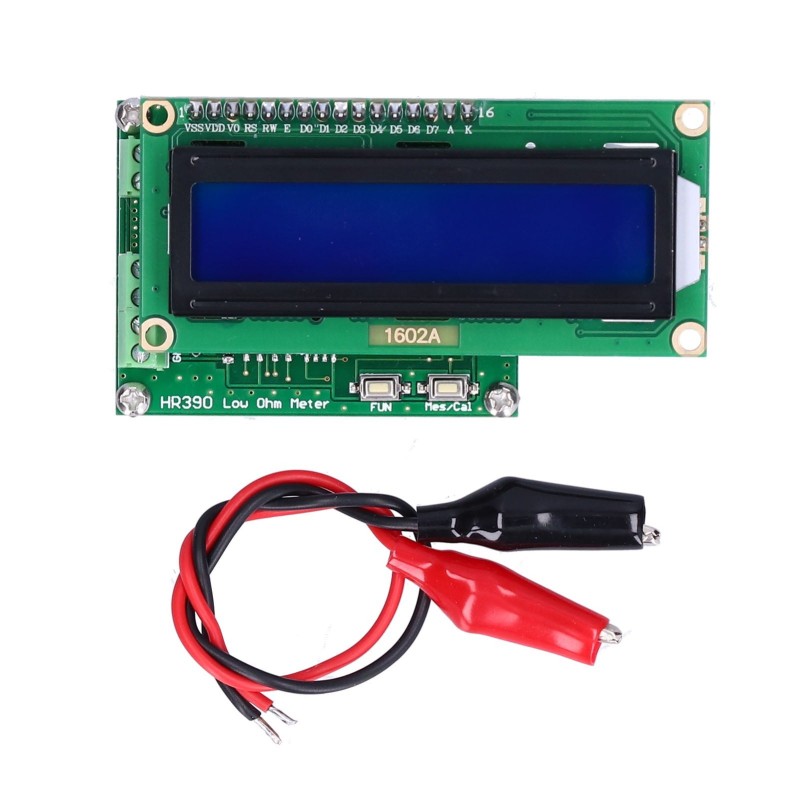

1 x HR390 Milliohm Meter (Low Resistance & Capacitance Tester)
1 x Set of Alligator Testing Clips
