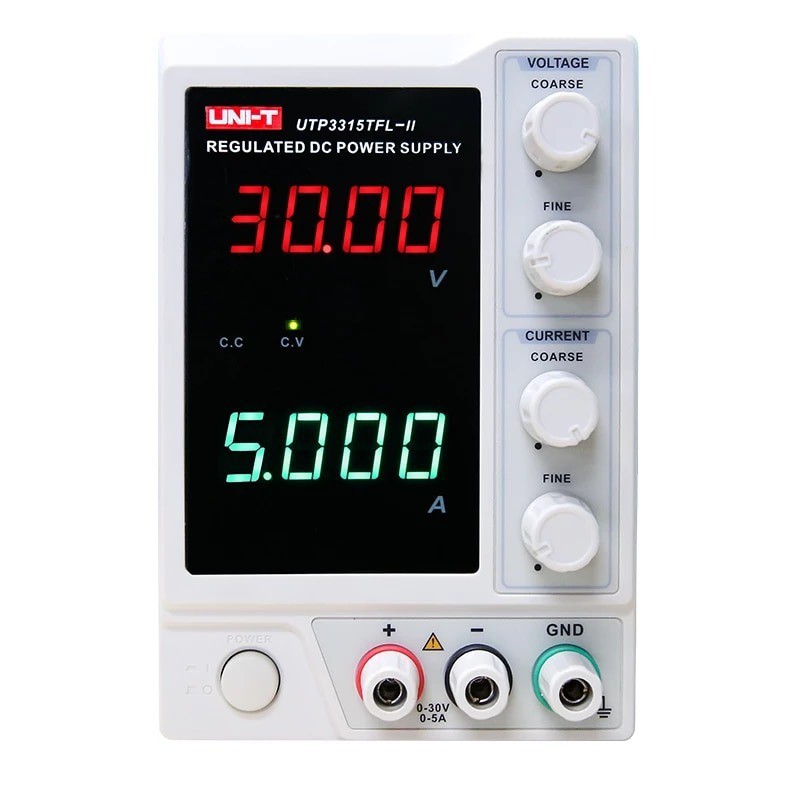

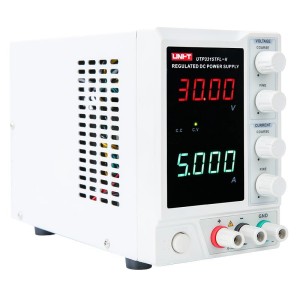

UNI-T UTP3315TFL-II is a single-channel transformer DC power supply with an LED display. UNI-T UTP3315TFL-II ensures the power supply of electronic devices and circuits with DC voltage in a range of 0 to 30 V and with the current in a range of 0 to 5 A. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- High-quality and stable device. RoboticsBD
- Data display: LED indicators.
- Short-circuit protection, overload protection, reverse polarity protection etc.
- Adjustability of the required current value.
- Automatic conversion of voltage and current stabilization.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Output voltage | 0-30 V |
| Output current | 0-5 A |
| Output power | 150 W |
| Load regulation | CV: ≤0.01%+5 mV, CC: ≤0.1%+10 mA |
| Accuracy (25°C±5°C) | Voltage: <0.5%+20 mV
Current: <0.5%+10 mA |
| Ripple and noise | ≤2 mVrms |
| Output regulation resolution | CV: 10 mV (typical), CC: 1 mA (typical) |
| Display | LCD |

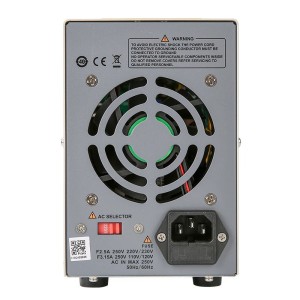

| Power | input voltage: 110 V/220 V±5% AC; frequency: 50 Hz/60 Hz |
| Dimensions | 105 mm × 165 mm × 249 mm |
| Weight | 4 kg |
| Shipment Weight | 4.1 kg |
| Shipment Dimensions | 31 × 23 × 17 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Manual

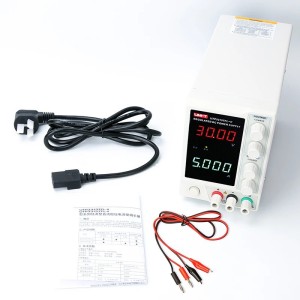

Package Includes:
1 x UNI-T UTP3315TFL-II DC Power Supply .
