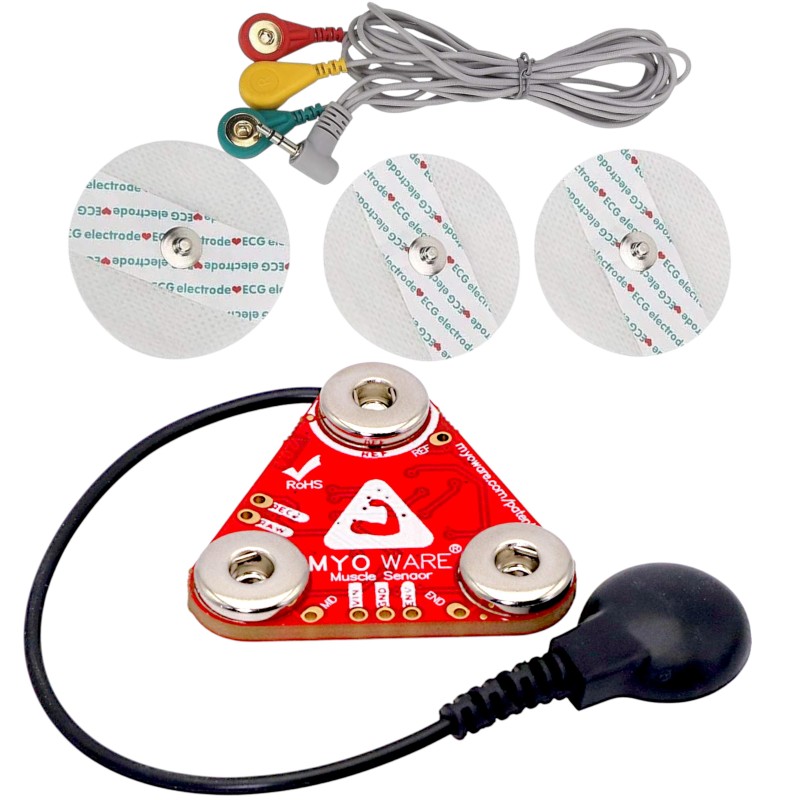

MyoWare 2.0 Muscle Sensor

The MyoWare Muscle Sensor by Advancer Technologies is a compact, Arduino-compatible electromyography (EMG) sensor designed to measure and analyze muscle activity. Ideal for robotics, prosthetics, gaming interfaces, and biomedical experimentation, the MyoWare 2.0 allows users to detect electrical activity from muscle movements and convert it into an analog voltage signal that correlates with muscle flex intensity. With an improved chipset and form factor, the sensor offers enhanced performance, accuracy, and ease of integration. It features a snap-on connector system that eliminates the need for soldering, making setup fast and beginner-friendly. The three output modes—Raw, Rectified, and Envelope—offer flexible signal processing for various applications. Lightweight and wearable, it’s a powerful tool for integrating muscle control into modern electronics, microcontrollers, and human-interaction systems. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Note: This product may be based on a SparkFun design, but we are unable to confirm its origin. Please consider it as Made in China for all practical purposes.

Note: MyoWare and the Muscle Sensor are not intended for use in the diagnosis of disease or other conditions, or in the cure, mitigation treatment, or prevention of disease, in a man or other animals.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

1. Surface EMG Sensing – Detects electric potential generated by muscle movements

2. Arduino-Compatible – Easily integrates with microcontrollers for DIY or professional projects

3. No Soldering Required – Snap connector system enables fast setup and prototyping

4. Three Output Modes – Raw EMG, Rectified, and Envelope signals provide flexible data options

5. Compact & Wearable Design – Ideal for portable biomedical and control applications

6. Reverse Polarity Protection – Built-in safety for voltage input connections

7. Adjustable Gain – Allows signal strength tuning based on use case

8. Indicator LEDs – VIN and ENV status LEDs assist in monitoring power and signal activity

9. Expandable via Shields – Seamlessly integrates into larger MyoWare 2.0 systems

10. Robust Build – Engineered for performance and durability in dynamic environments

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

1. Robotics Control – Use muscle movements to wirelessly operate robotic limbs or systems

2. Prosthetics Development – Integrate with artificial limbs for real-time human input

3. Gaming Interfaces – Control video games through flex-based movements

4. Biomedical Research – Measure muscle performance and monitor rehabilitation progress

5. Interactive Wearables – Develop smart clothing and gesture-based interfaces

6. Education and STEM Projects – Ideal for students learning biofeedback and bio-signals

7. Gesture-Based Automation – Create systems that respond to human flex input in real-time

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

1. Board Dimensions
2. Hookup Guide
3. Quickstart Guide
4. Advanced Guide

Package Includes:

1 x MyoWare 2.0 Muscle Sensor
