ECG/EKG/EMG Shield Kit for Arduino with Cables & Electrodes

Product Description:
The ECG/EKG/EMG Shield Kit is a versatile bio-signal acquisition module for Arduino-compatible boards, enabling accurate capture and analysis of Electrocardiography (ECG/EKG) and Electromyography (EMG) signals. Perfect for biofeedback experiments, heart rate monitoring, and muscle activity analysis, it offers stackable connectors, calibration features, and compatibility with both standard and active electrodes. The shield comes fully assembled, tested, and pre-calibrated so you can start your biomedical projects right away.

Key Features:

• Compatible with Arduino-like boards (3.3V and 5V)

• Stackable connectors – supports up to 6 channels (A0–A6 analog inputs)

• Built-in calibration signal generation via D4/D9 digital outputs

• Precision trimmer potentiometer for calibration adjustment

• Works with standard and active electrodes

• Fully assembled, tested, and pre-calibrated for immediate use

• Open-source hardware and software support

Technical Specifications:

• Signal Types: ECG (Electrocardiography), EMG (Electromyography)

• Channels: Up to 6 stackable (A0–A6)

• Operating Voltage: 3.3V and 5V compatible

• Calibration: Onboard trimmer potentiometer + digital output signal

• Input: Standard or active electrode connector

• Form Factor: Arduino shield

How to Use:

1. Mount the shield onto your Arduino or compatible board.

2. Connect the included cables and electrodes to the shield’s input.

3. Attach electrodes to the desired body positions following proper placement guidelines.

4. Upload the sample Arduino code to start capturing data.

5. Use compatible software such as Electric Guru to visualize results.

6. Adjust the onboard trimmer potentiometer for calibration if required.

Applications:

• Heart rate monitoring and ECG waveform recording

• EMG-based gesture and movement recognition

• Biofeedback and rehabilitation projects

• Biomedical training and research

• Wearable health monitoring prototypes

Package Includes:

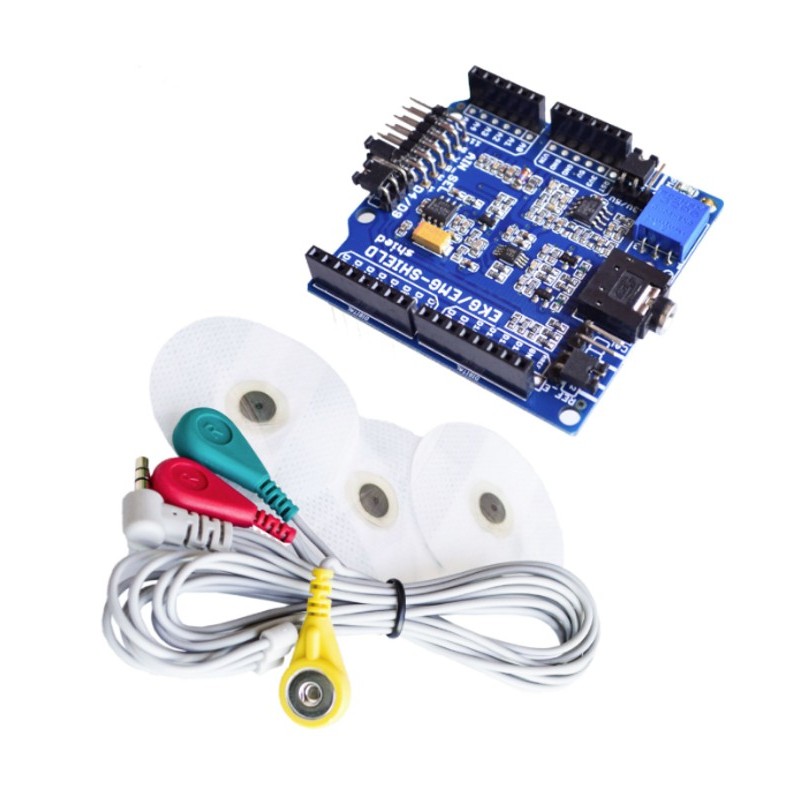

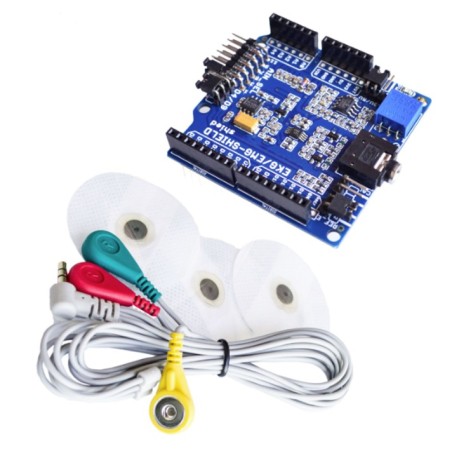

• 1 × ECG/EKG/EMG Shield

• 1 × Set of Cables and Electrodes

Reference Links:

• Datasheet – ECG/EKG/EMG Shield

• Demo with Arduino IDE

Why Choose This Product?
This shield delivers precise, real-time bio-signal capture in a compact, easy-to-use form. With open-source resources and broad compatibility, it’s a valuable tool for students, hobbyists, and researchers exploring biomedical engineering and human-machine interaction.

Start measuring, recording, and analyzing bio-signals today—add the ECG/EKG/EMG Shield Kit to your toolkit now!
