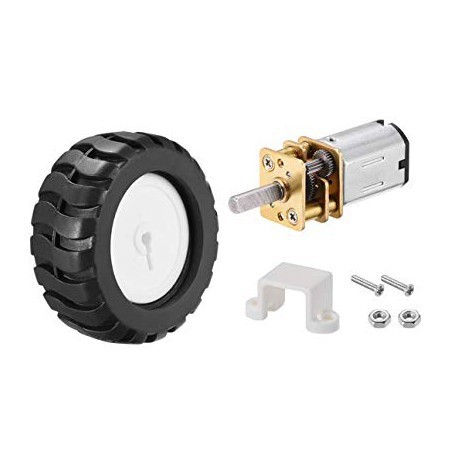

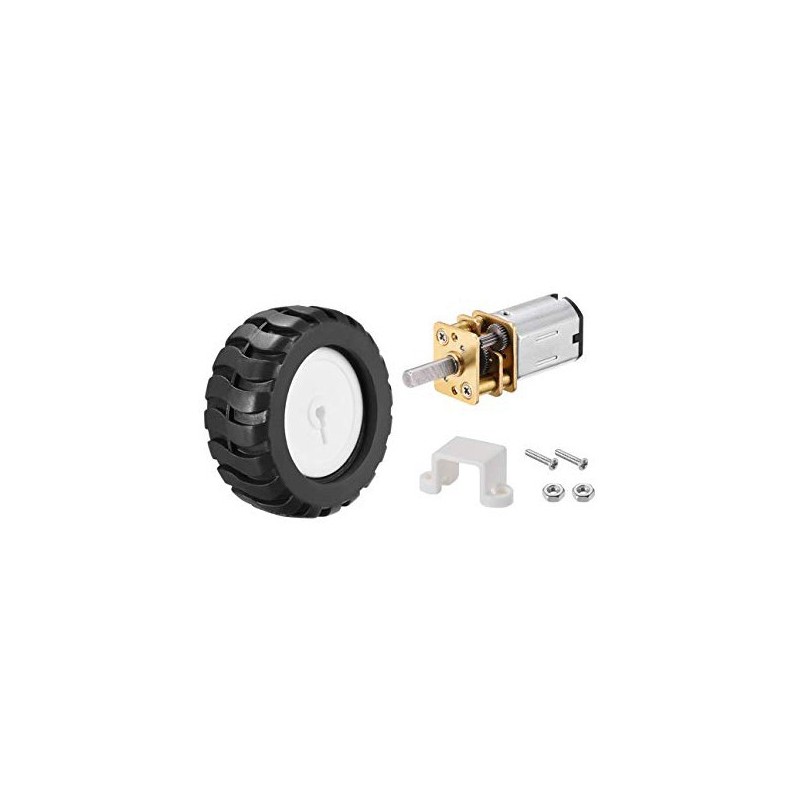

DC12V N20 Gear Motor 200 RPM & Mount Bracket & 43mm Wheel

The N20 Micro Gear 12V 200RPM DC Motor (High Torque) is lightweight, high torque, and low RPM motor. It is equipped with gearbox assembly so as to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. It has a very small size so as fit in complex spaces of small-scale application. One can connect this Micro Gear Motor to wheels to drive them from one place to other while carrying high loads. RoboticsBD

Mounting Bracket for N20 Micro Gear motors.

The product 3PI miniQ Car wheel Tyre 43mm N20 DC Gear Motor Wheel is a customized high-quality rubber wheel, a diameter of 43mm. The hub for N20 micro motor output shaft design of the bayonet, the ferry can plug and play, without an additional field. RoboticsBD

Product Images are shown for illustrative purposes only and may differ from the actual product.

N20 Gear Motor Features:

1. Type: N20 Micro Gearbox
2. Fuselage Dimensions: 15 x 12 x 10 (LxWxH) mm
3. Gearbox Dimensions: 10 x 12 x 10 (LxWxH) mm
4. This is a DC Mini Metal Gear Motor, ideal for making robots
5. Lightweight, high torque and low RPM.
6. Fine craftsmanship, durable, not easy to wear.
7. With excellent stall characteristics, can climb hills easily.
8. You can also easily mount a wheel on the motor’s output shaft.

N20 DC Gear Motor Wheel 3PI miniQ Car wheel Tyre Features :

1. Coder Accuracy: 12 pulses per revolution
2. Heavy Duty Material
3. Durable and specially design 3PI miniQ Car wheel

N20 Motor Mounting Bracket Features :

1. Height: 11mm.
2. Width: 25mm.
3. Material: ABS plastic.
4. Pitch: about 16mm.
5. Aperture: 2mm M2 screws.

Featured By RoboticsBD.

Please allow 5% measuring deviation due to manual measurement.

Package Includes:

1 x DC12V N20 Gear Motor 200 RPM & Mount Bracket & 43mm Wheel
