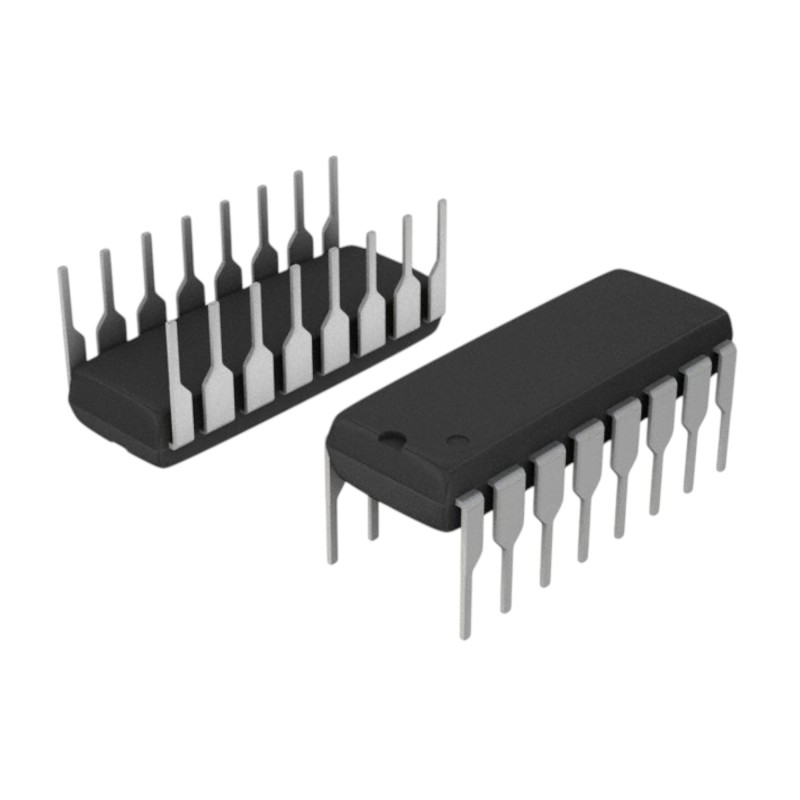

The IC 7475 4-Bit Latch is a transparent data latch designed for temporary data storage and signal buffering in digital systems. Each of its four latches can hold one bit of data, making it suitable for use in parallel data transfer, memory interfacing, and display driving applications. The device features an active-low enable input that controls data flow between the input and output, allowing for precise synchronization across multiple circuits. Fully TTL-compatible and operating on a 5V logic level, the 7475 provides reliable performance and high-speed operation. Its 16-pin DIP package makes it easy to integrate into breadboards or PCBs for both prototyping and production. This IC is a fundamental component in sequential logic and data handling systems. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
4-bit transparent latch for holding and buffering digital data.
Active-low enable input for controlled synchronization.
High-speed TTL-compatible logic ensures stable operation.
Useful for interfacing between microprocessors and peripheral devices.
Compact 16-pin DIP package for easy prototyping and assembly.
Reliable and widely used in data bus control and display systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Temporary data storage in digital systems.
Data buffering between microprocessors and memory modules.
Display driving for LEDs or digital readouts.
Used in data bus latching and signal synchronization.
Suitable for timing and sequencing operations in logic circuits.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| IC Type | 4-Bit Transparent Latch |
| Logic Family | TTL |
| Number of Latches | 4 |
| Supply Voltage | 4.75V – 5.25V |
| Logic Compatibility | TTL |
| Enable Control | Active-Low |
| Input Type | D (Data), Enable |
| Output Type | Q |
| Package Type | DIP-16 |
| Typical Propagation Delay | 20 ns |
| Operating Temperature Range | 0°C to +70°C |
| Typical Supply Current | 8 mA |
| Shipment Weight | 0.0016 kg |
| Shipment Dimensions | 4 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x IC 7475 4-Bit Latch
