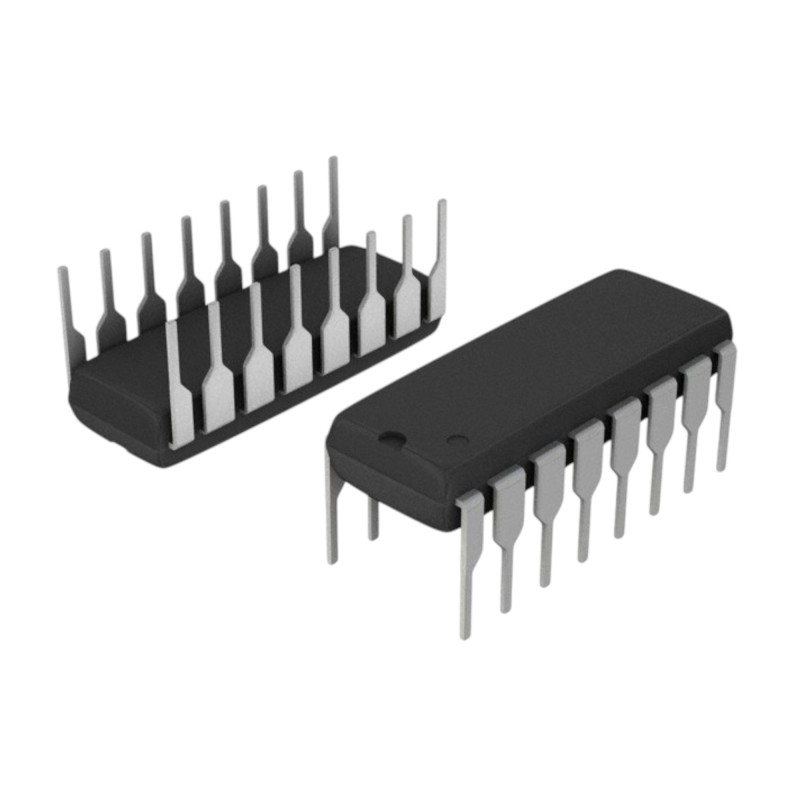

The IC 7476 Dual JK Flip-Flop with Preset & Clear is a versatile digital logic component designed for high-speed sequential circuits. It consists of two independent JK flip-flops featuring asynchronous preset and clear inputs, allowing immediate output control regardless of the clock state. The 7476 offers edge-triggered operation, making it suitable for use in counters, frequency dividers, registers, and control logic systems. Fully TTL-compatible, it operates reliably at standard 5V logic levels, providing stable and predictable output transitions. Its dual flip-flop design and compact 14-pin DIP package make it ideal for both educational and professional applications in digital logic, microprocessor support, and timing systems. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Dual JK flip-flops with asynchronous preset and clear inputs.
TTL-compatible logic ensures smooth integration in digital systems.
Edge-triggered operation for precise timing and synchronization.
High-speed switching suitable for sequential logic and counter designs.
Compact 14-pin DIP package for breadboard or PCB use.
Reliable performance across a wide range of operating conditions.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Used in digital counters and frequency dividers.
Ideal for sequential logic circuits and control systems.
Suitable for timing and synchronization applications.
Commonly used in data storage and toggle flip-flop designs.
Perfect for educational use in digital logic experiments and labs.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| IC Type | Dual JK Flip-Flop with Preset & Clear |
| Logic Family | TTL |
| Number of Flip-Flops | 2 |
| Supply Voltage | 4.75V – 5.25V |
| Logic Compatibility | TTL |
| Package Type | DIP-14 |
| Trigger Type | Edge-Triggered |
| Input Type | J, K, CLK, PRE, CLR |
| Output Type | Q, Q̅ (Complementary Outputs) |
| Propagation Delay | 20 ns typical |
| Operating Temperature Range | 0°C to +70°C |
| Typical Supply Current | 8 mA |
| Shipment Weight | 0.0016 kg |
| Shipment Dimensions | 4 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x IC 7476 Dual JK Flip-Flop with Preset & Clear
