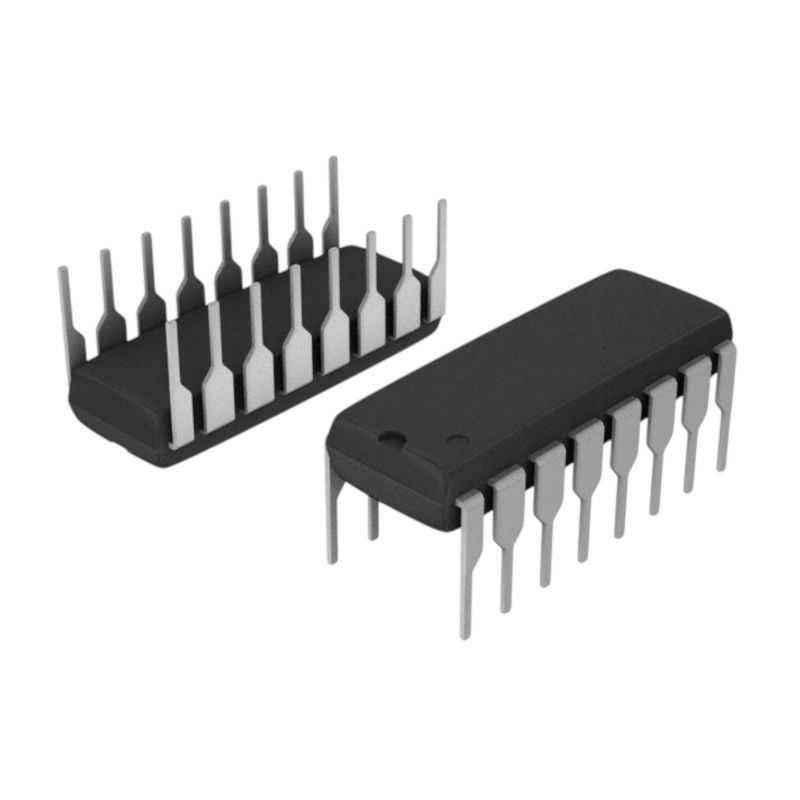

The IC 74LS283 4-Bit Binary Full Adder is a high-speed TTL logic device designed to perform 4-bit binary addition with both carry input and carry output functions. It allows the addition of two 4-bit binary numbers and can be cascaded to create wider arithmetic systems. As a part of the LS (Low Power Schottky) TTL family, the 74LS283 provides improved switching speed with reduced power consumption. Its TTL-compatible inputs and outputs ensure smooth interfacing with digital logic circuits. This IC is widely used in arithmetic logic units (ALUs), counters, and digital computing systems that require fast, reliable addition and carry propagation. Packaged in a standard 16-pin DIP format, it is ideal for educational, prototyping, and industrial digital logic applications. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Performs high-speed 4-bit binary addition with carry input and output.
Cascadable design for multi-bit arithmetic expansion.
TTL-compatible logic for easy system integration.
Low power consumption with Schottky technology.
Suitable for arithmetic, logic, and counter operations.
Compact 16-pin DIP package for easy prototyping and assembly.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Arithmetic logic units (ALUs) and digital adders.
Binary counters and summing circuits.
Microprocessor arithmetic and data processing systems.
Digital computing and signal processing circuits.
Educational projects and logic system demonstrations.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| IC Type | 4-Bit Binary Full Adder |
| Logic Family | LS TTL (Low Power Schottky) |
| Number of Bits | 4 |
| Inputs | Two 4-bit Binary Inputs (A, B) |
| Carry Input | 1 (CIN) |
| Carry Output | 1 (COUT) |
| Output Type | TTL-Compatible |
| Supply Voltage | 4.75V – 5.25V |
| Propagation Delay | 15 ns typical |
| Logic Compatibility | TTL |
| Package Type | DIP-16 |
| Operating Temperature Range | 0°C to +70°C |
| Typical Supply Current | 4 mA |
| Shipment Weight | 0.0016 kg |
| Shipment Dimensions | 4 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x IC 74LS283 4-Bit Binary Full Adder
