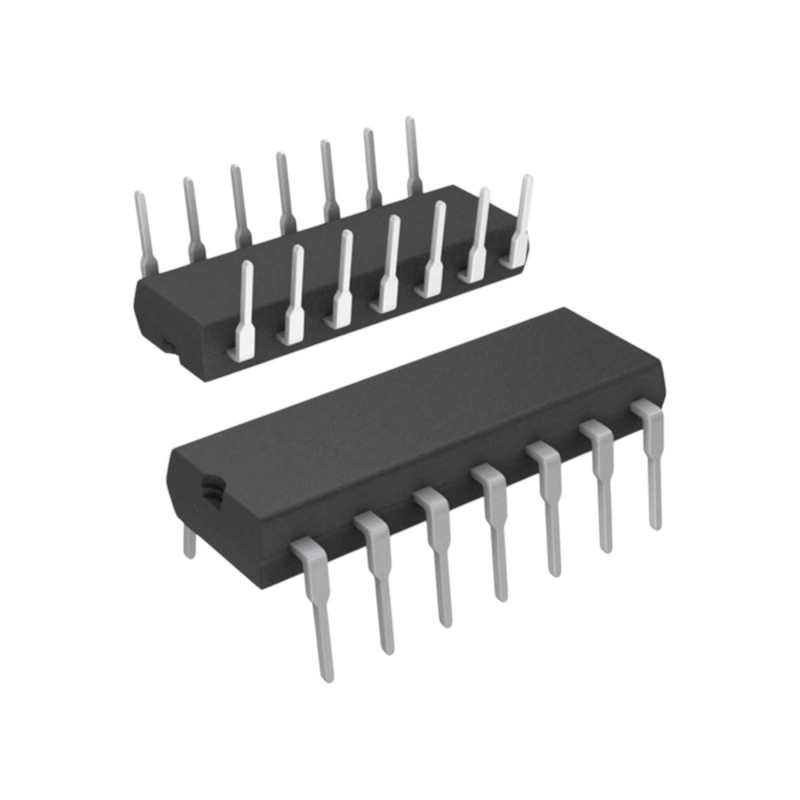

IC 7474 Dual D Flip-Flop with Preset & Clear

Reference RBD-3868

Dual D-type flip-flop with preset and clear functions
Operates with standard 5V TTL logic compatibility
Provides edge-triggered data storage and synchronization
Ideal for counters, registers, and timing circuits
Compact 14-pin DIP package for easy breadboard use
Reliable performance for digital electronics projects

Description
Product Details

Description

The IC 7474 Dual D Flip-Flop with Preset & Clear is a versatile digital logic device designed for data storage, synchronization, and control applications. It consists of two independent D-type flip-flops that store binary data and respond to clock pulses, making it essential in timing, frequency division, and data sequencing systems. Each flip-flop includes asynchronous preset and clear inputs that allow immediate setting or resetting of outputs, ensuring precise operation in digital designs. Operating from a standard 5V supply and fully compatible with TTL logic levels, this IC is widely used in counters, registers, latches, and clocked data circuits, making it a fundamental component in digital electronics and educational projects. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Dual D-type flip-flops with independent preset and clear inputs.
TTL-compatible logic for seamless integration with standard circuits.
Edge-triggered operation ensures precise data capture.
Commonly used in frequency dividers, counters, and shift registers.
Compact 14-pin DIP package simplifies circuit prototyping.
Stable performance across a wide range of operating conditions.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Used in digital counters, timers, and data storage systems.
Suitable for use in frequency dividers and synchronization circuits.
Ideal for control logic systems in automation and embedded devices.
Common in educational and experimental digital logic projects.
Employed in sequential logic design and microprocessor support circuits.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
IC Type	Dual D-Type Flip-Flop with Preset & Clear
Logic Family	TTL
Number of Flip-Flops	2
Supply Voltage	4.75V – 5.25V
Logic Compatibility	TTL
Package Type	DIP-14
Trigger Type	Edge-Triggered
Operating Temperature Range	0°C to +70°C
Typical Propagation Delay	20 ns
Typical Supply Current	8 mA
Input Type	D, CLK, PRE, CLR
Output Type	Q, Q̅ (Complementary Outputs)
Shipment Weight	0.0016 kg
Shipment Dimensions	4 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x IC 7474 Dual D Flip-Flop with Preset & Clear
