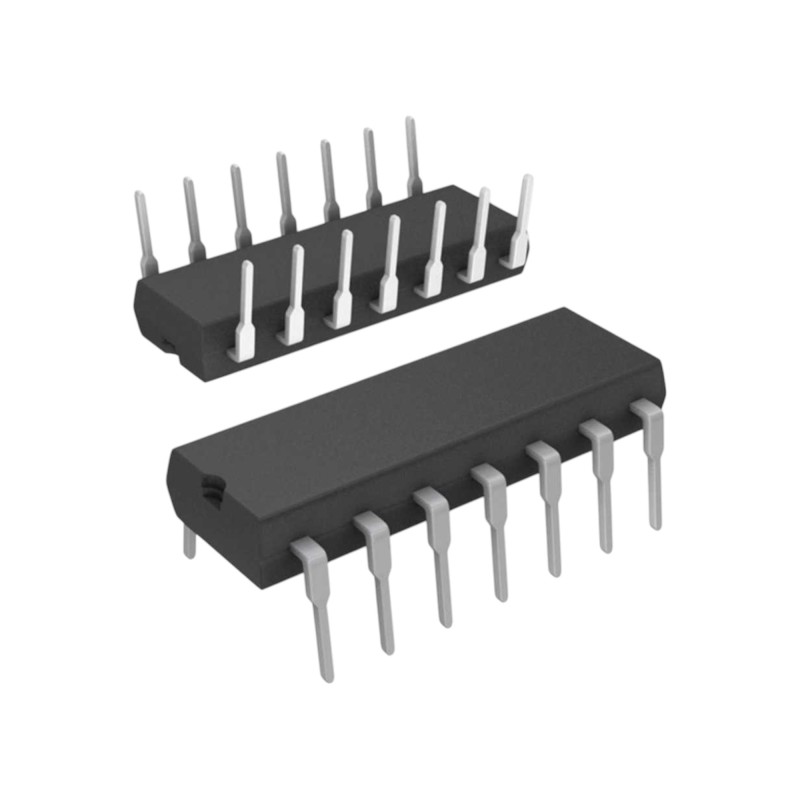

IC 74164 8-Bit Serial-In Parallel-Out Shift Register

Reference RBD-3874

8-bit serial-in, parallel-out (SIPO) shift register for data conversion
Converts serial data streams into parallel output form efficiently
TTL-compatible design for seamless integration with logic circuits
Ideal for LED displays, data storage, and serial-to-parallel interfaces
Supports cascading for extended data width applications
Compact 14-pin DIP package suitable for prototyping and PCB use

Description
Product Details

Description

The IC 74164 8-Bit Serial-In Parallel-Out Shift Register is a versatile TTL-compatible device designed to convert serial input data into parallel output. It consists of eight flip-flops connected in sequence, enabling smooth data transfer and storage operations. The 74164 accepts serial data on two inputs (A and B) and shifts it with each clock pulse, producing an 8-bit parallel output. It is widely used in LED display drivers, digital control systems, and data communication interfaces requiring serial-to-parallel conversion. With its ability to be cascaded, the IC 74164 is perfect for expanding output width in larger systems. Packaged in a 14-pin DIP form, it provides easy implementation for both educational and industrial circuit designs. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

8-bit serial-in, parallel-out shift register for data conversion.
Dual serial data inputs (A and B) for flexible data control.
TTL-compatible logic ensures reliable high-speed operation.
Cascadable for extended register and output width.
Compact 14-pin DIP package for easy prototyping and integration.
Ideal for LED driving, data storage, and signal conversion circuits.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

LED and segment display control systems.
Serial-to-parallel data conversion in microcontroller interfaces.
Data buffering and temporary storage circuits.
Digital communication and signal sequencing systems.
Educational use in logic circuit and digital electronics training.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
IC Type	8-Bit Serial-In Parallel-Out Shift Register
Logic Family	TTL
Number of Bits	8
Data Input	Dual Serial Inputs (A, B)
Output Type	Parallel (Q0–Q7)
Supply Voltage	4.75V – 5.25V
Logic Compatibility	TTL
Clock Type	Edge Triggered
Maximum Clock Frequency	25 MHz typical
Propagation Delay	20 ns typical
Package Type	DIP-14
Operating Temperature Range	0°C to +70°C
Typical Supply Current	8 mA
Shipment Weight	0.0016 kg
Shipment Dimensions	4 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x IC 74164 8-Bit Serial-In Parallel-Out Shift Register
