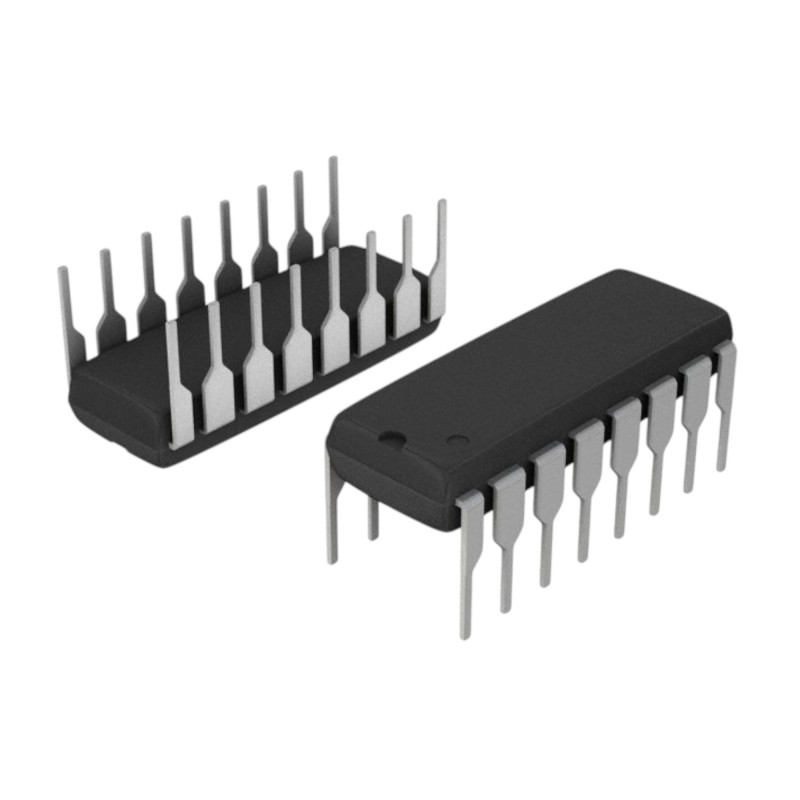

The IC 74153 Dual 4-to-1 Multiplexer is a high-speed TTL logic device that contains two independent 4-input multiplexers with common select lines. It allows selection of one data input from each group of four based on binary select inputs, enabling efficient digital data routing and signal selection. Designed for TTL-compatible operation, the 74153 offers high noise immunity and fast switching capabilities, making it ideal for logic function generation, data processing, and microcontroller interfacing. Its dual configuration provides flexibility for handling multiple data sources simultaneously. Packaged in a compact 16-pin DIP, the IC 74153 is widely used in digital electronics, control systems, and educational logic circuit experiments. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Dual 4-input multiplexers with independent enable controls.
Common select lines for synchronized data selection.
TTL-compatible logic for reliable high-speed performance.
Fast propagation delay for time-critical digital applications.
Ideal for data routing, logic function, and signal selection circuits.
Compact 16-pin DIP package for easy integration in prototypes and PCBs.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Digital data routing and bus control systems.
Logic function generation and waveform selection.
Signal switching and multiplexed data transmission.
Control logic and microcontroller interfacing.
Educational and experimental digital logic projects.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| IC Type | Dual 4-to-1 Multiplexer |
| Logic Family | TTL |
| Number of Multiplexers | 2 |
| Inputs per Multiplexer | 4 |
| Common Select Lines | 2 |
| Enable Inputs | 2 (Independent) |
| Supply Voltage | 4.75V – 5.25V |
| Logic Compatibility | TTL |
| Propagation Delay | 20 ns typical |
| Output Drive Capability | 10 TTL Loads |
| Package Type | DIP-16 |
| Operating Temperature Range | 0°C to +70°C |
| Typical Supply Current | 8 mA |
| Shipment Weight | 0.0016 kg |
| Shipment Dimensions | 4 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x IC 74153 Dual 4-to-1 Multiplexer
