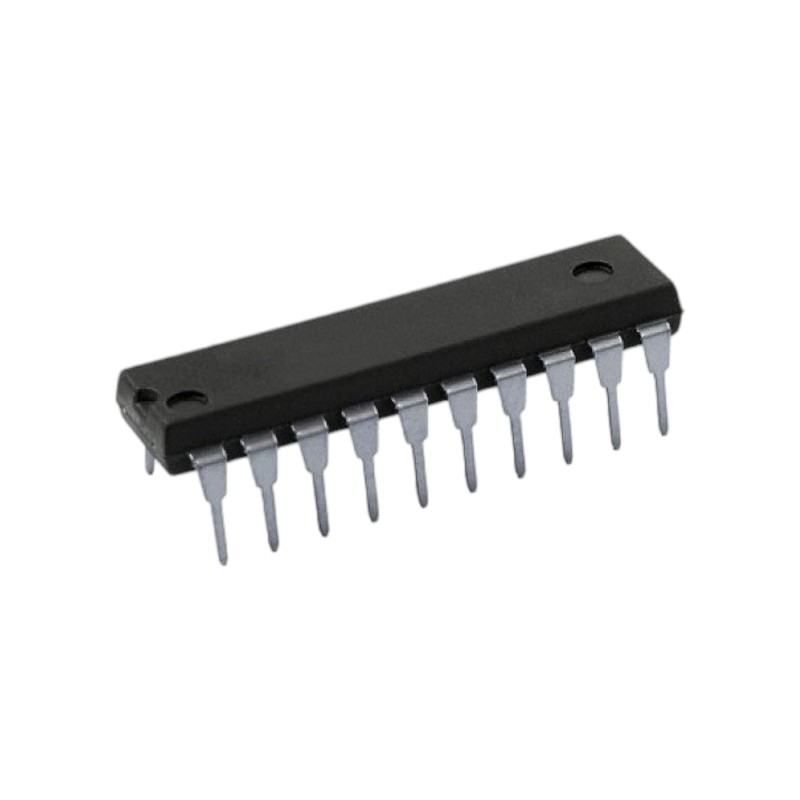

    TPIC6B595 High Power 8-Bit Shift Register

    RBD-3390

    • TPIC6B595 High Power Shift Register with 8-bit serial-in parallel-out control
    • Open-drain DMOS power outputs for direct load driving
    • Handles up to 50V output voltage and ~150mA per channel
    • Built-in clamp protection for inductive loads
    • Cascade multiple ICs for unlimited output expansion
    • Ideal for LEDs, relays, solenoids, and automation systems
    BDT 99
    BDT 99 BDT 99 BDT 99 BDT 99
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 99 Tax excluded
    BDT 99 Tax included
    BDT 0 Tax
    BDT 99 Tax excluded
    BDT 0 Tax
    BDT 99 Tax included
    Quantity
    In-Stock
    38 Items

    2 people have purchased this item
    38 items in stock
    Description

    The TPIC6B595 High Power 8-Bit Shift Register is a robust serial-in, parallel-out driver IC designed for controlling higher-current loads directly from microcontrollers such as Arduino, ESP32, STM32, and other embedded platforms. Unlike the standard 74HC595, this device integrates DMOS open-drain power outputs capable of handling up to 50V loads and approximately 150mA continuous current per channel. Because it includes built-in output clamp protection, it safely drives inductive loads such as relays and solenoids without requiring external protection diodes. Moreover, multiple TPIC6B595 ICs can be cascaded together, allowing easy expansion of digital outputs using SPI-style serial control. As a result, it is widely used in robotics, industrial control panels, LED matrices, and embedded automation systems.Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. High-Power DMOS Outputs – Drives relays, solenoids, and high-power LEDs directly.

    2. 8-Bit Serial-In Parallel-Out Design – Expands digital outputs using minimal MCU pins.

    3. 50V Output Capability – Suitable for industrial and higher-voltage loads.

    4. 150mA Continuous Current per Channel – Supports stronger loads than standard shift registers.

    5. Built-in Clamp Protection – Protects against voltage spikes from inductive devices.

    6. Cascade Support – Chain multiple ICs for large output expansion.

    7. SPI-Style Interface Compatibility – Easy integration with common microcontrollers.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Applications:

    1. LED matrices and 7-segment display control.

    2. Relay and solenoid driver circuits.

    3. Motor and actuator switching systems.

    4. Industrial indicator panels and control boards.

    5. Robotics and embedded automation projects.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specifications
    Product NameTPIC6B595 Shift Register
    Type8-Bit Serial-In Parallel-Out
    Output TypeOpen-Drain DMOS Power Outputs
    Output Voltage RatingUp to ~50V
    Continuous Output Current~150mA per channel
    Supply Voltage4.5V – 5.5V
    Cascade SupportYes
    Protection FeatureBuilt-in Output Clamp
    Package TypeDIP / SOP (varies by version)
    Shipment Weight0.005 kg
    Shipment Dimensions3 × 3 × 3 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Package Includes:

    1 x TPIC6B595 High Power 8-Bit Shift Register
