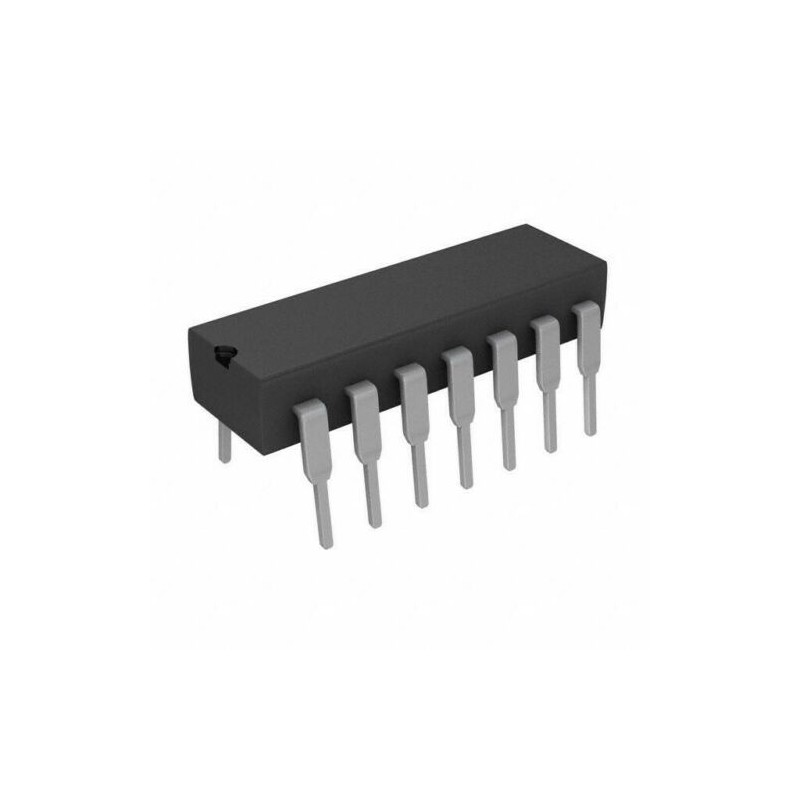

IC 7420 4 Input NAND Gate

The 74x20 is a 14 Pin Quad 4-Input NAND Gate IC. This device contains four independent gates each of which performs the logic NAND function. NAND gates utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. All gates have buffered outputs.

All devices have high noise immunity and the ability to drive 10 LS-TTL loads. The 74xx logic family is functionally as well as pin-out compatible with the standard 74xx logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground. Featured By RoboticsBD.

For part numbers in this section, "x" is the 7400-series logic family, such as LS, ALS, HCT, AHCT, HC, AHC, LVC, .

Product Images are shown for illustrative purposes only and may differ from the actual product.

Note: Product images/ Components brand may vary from actual product as our stock rotates.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

1. Complies with JEDEC standard JESD7A
2. Low-power dissipation
3. Input Levels : For 74HC20: CMOS level / For 74HCT20: TTL level
4. Operating Temperature up to 70°C
5. ESD protection: HBM JESD22-A114F exceeds 2000 V / MM JESD22-A115-A exceeds 200 V

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

1. Datasheet

Package Includes:

1 x IC 7420 4 Input NAND Gate
