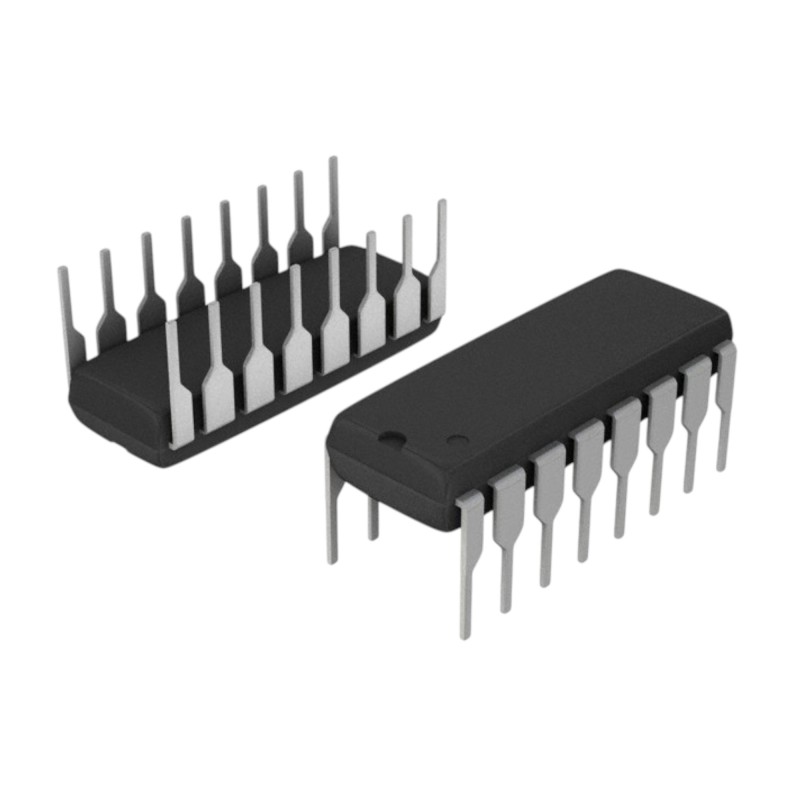

The MCP3008-I/P 8-Channel 10-Bit A/D Converter is a reliable and efficient solution for converting analog signals into digital data for microcontrollers and embedded systems. Featuring an SPI communication interface, this ADC allows seamless integration with popular platforms such as Arduino, Raspberry Pi, and ESP32. It offers 8 single-ended inputs or 4 differential input pairs, enabling multiple sensor readings from a single chip. With a wide operating voltage range of 2.7V to 5.5V and low power consumption design, the MCP3008 ensures stable and accurate data acquisition performance. Its DIP-16 through-hole package makes it easy to prototype on breadboards or PCB designs, making it an excellent choice for robotics, IoT, automation, and industrial monitoring applications. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
8-Channel Analog Input Support – Connect multiple sensors without adding extra ADC modules.
10-Bit Resolution – Provides accurate digital representation of analog signals for precise measurements.
SPI Communication Interface – Ensures fast and stable data transfer with minimal wiring complexity.
Flexible Input Configuration – Supports both single-ended and differential input modes.
Wide Voltage Compatibility (2.7V–5.5V) – Works with 3.3V and 5V microcontrollers.
Low Power Consumption – Suitable for battery-powered and IoT projects.
Industrial Temperature Range – Reliable performance in demanding environments.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Reading analog sensors such as temperature, gas, light, and pressure sensors.
Expanding analog input capability of Raspberry Pi (which lacks built-in ADC).
Robotics and automation systems requiring multiple sensor feedback inputs.
IoT monitoring systems for environmental and industrial data logging.
Educational electronics and embedded system development projects.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Product Name | MCP3008-I/P |
| Type | 8-Channel 10-Bit ADC |
| Resolution | 10-bit |
| Analog Channels | 8 Single-Ended / 4 Differential |
| Communication Interface | SPI |
| Operating Voltage | 2.7V – 5.5V |
| Sampling Rate | Up to ~200 ksps |
| Package Type | DIP-16 (Through-Hole) |
| Operating Temperature | -40°C to +85°C |
| Input Type | Single-Ended / Differential |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x MCP3008-I/P 8-Channel 10-Bit A/D Converter
