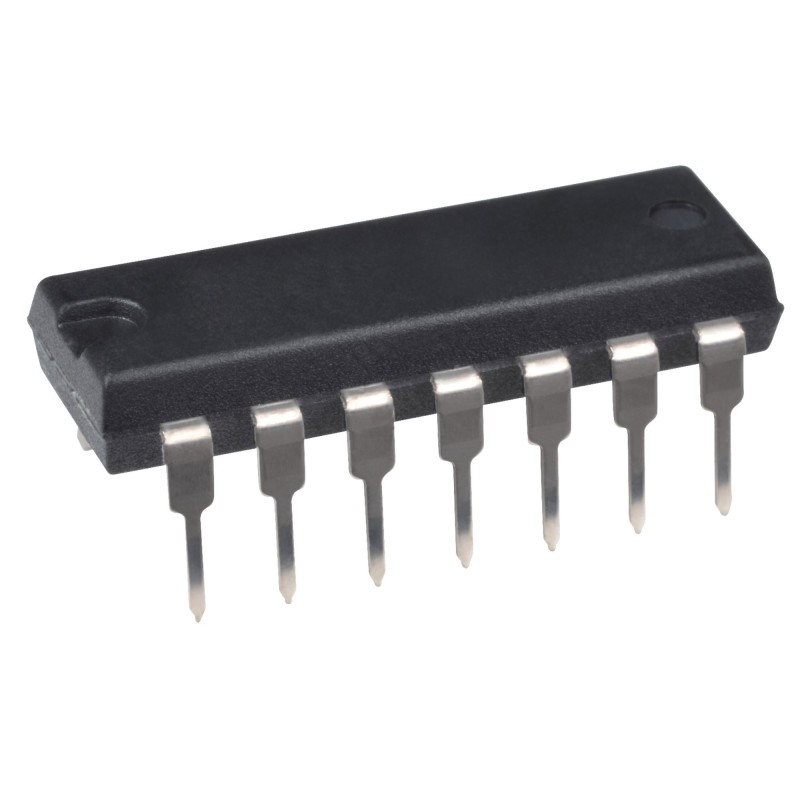

CD4068B 8 Input NAND-AND Gate
- Versatile 8-input NAND/AND gate IC, configurable for multiple logic functions.
- Low power consumption and high noise immunity thanks to CMOS technology.
- Wide operating voltage range from 3V to 15V for flexible circuit designs.
- Standard 14-pin DIP package, ideal for through-hole mounting.
- Suitable for digital circuits, counters, sequencers, and more.
Description
The CD4068B 8 Input NAND-AND Gate is a highly versatile integrated circuit (IC) designed by Texas Instruments, offering exceptional performance in various logic operations. This configurable multiple-function gate can perform both NAND and AND logic functions, making it an essential component for digital circuits, counters, sequencers, and other electronic applications. Fabricated using CMOS technology, the CD4068B delivers low power consumption and high noise immunity, ensuring reliable operation even in challenging environments.
The IC is housed in a standard 14-pin dual-in-line package (DIP), making it easy to integrate into through-hole mounting projects. With a wide operating voltage range of 3V to 15V and a typical propagation delay of just 25 ns, the CD4068B is a popular choice for designers seeking flexibility and efficiency in their circuits. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- 8-Input Configurable Gate: Supports both NAND and AND logic operations with 8 input pins and 1 output pin.
- CMOS Technology: Ensures low power consumption and high noise immunity for stable performance.
- Wide Operating Voltage Range: Operates from 3V to 15V, offering flexibility in various circuit designs.
- Standard 14-Pin DIP Package: Easy to integrate with through-hole mounting for traditional PCB designs.
- Low Propagation Delay: Delivers fast switching times with a typical propagation delay of 25 ns.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Digital Circuits: Ideal for implementing complex logic functions in digital circuit designs.
- Counters and Sequencers: Used in designing counters and sequencers for timing and control applications.
- Signal Processing: Suitable for applications requiring reliable signal processing with minimal power consumption.
- Educational Projects: Perfect for students and hobbyists building logic circuits and learning about digital electronics.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Number of Gates | 1 |
| Gate Logic Family | 4000 |
| Number of Input Lines | 8 |
| Package / Case | PDIP-14 |
| Low Level Output Current | 6.8 mA |
| High Level Output Current | -6.8 mA |
| Propagation Delay Time | 75 ns |
| Supply Voltage - Min | 3 V |
| Supply Voltage - Max | 18 V |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | =+125°C |
| Mounting Style | Through Hole |
| Height | 4.57 mm |
| Length | 19.3 mm |
| Logic Type | 8-Input NAND/AND |
| Operating Supply Current | 15 µA |
| Operating Supply Voltage | 10 V |
| Output Type | CMOS |
| Power Dissipation (Pd) | 500 mW (1/2 W) |
| Quiescent Current | 20 nA |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 3 × 3 × 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
Package Includes:
1 x CD4068B 8 Input NAND-AND Gate
