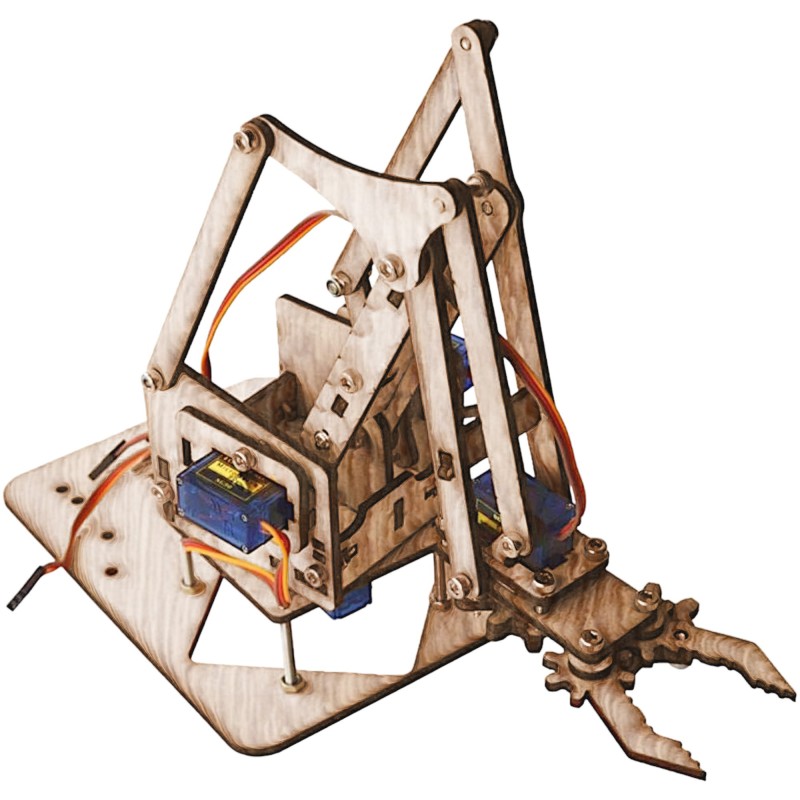

The 4 DOF Robotic Arm wooden DIY unassembled kit offers a premium quality solution for building your own robotic arm. The kit includes wood cutting parts, screws, and 4 sg90 servos, providing all the necessary components for assembly. With 4 degrees of freedom, this robotic arm offers untrammeled and flexible motion, delivering an unparalleled user experience. Each joint of the mechanical arm is driven by a sg90 servo, ensuring a long service life and convenient use.
- Servo Motor Installation Guidelines
- Run the servo in free state first: Before attaching the servo to anything, run
myservo.write(90); to set it to the middle position. - Check the mechanical limits of the arm: Verify that the servo motor will not try to rotate beyond the arm’s mechanical limit.
- Limit rotation angle in the code: Define the maximum and minimum rotation angles in your program so that the motor does not hit its physical limit.
- Avoid overload: If the servo tries to go past its limit, it may overheat or burn out due to excessive load.
- Note: Failing to check limits and set angles may cause multiple servos to fail at once.
The kit is precisely manufactured with high-quality wood material and excellent workmanship, resulting in a lightweight and portable robotic arm. It is an ideal DIY assembly kit for college students, middle school students, DIY enthusiasts, and anyone interested in robotics. Featured By RoboticsBD.
Important: Kindly review the following information attentively before proceeding with your order.
This compact robotic arm features four degrees of freedom, operated through fundamental servo code and electronics. Designed solely for educational purposes, it is not intended for heavy lifting tasks. Do not expect it to carry any weight; its primary aim is to provide hands-on learning experiences in robotic arm axis programming & electronics setup.
- This product does not have a circuit board
- Shipment for parts needs to be assembled ( DIY KIT )
- Installation manual is online (contact us for the link )
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Premium quality robotic arm kit
- Includes wood cutting parts and screws
- Comes with 4 sg90 servos for joint motion
- Offers 4 degrees of freedom for untrammeled and flexible motion
- Long service life and convenient use
- Precisely manufactured with high-quality wood material
- Lightweight and portable design
- Ideal for college students, middle school students, and DIY enthusiasts
- Provides an engaging and educational robotics project
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Robotics education and learning
- STEM (Science, Technology, Engineering, Mathematics) projects
- College and school robotics clubs
- DIY hobby projects and experimentation
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Product Name | 4 DOF Robotic Arm wooden DIY unassembled |
| Material | Wood |
| Servos | 4 sg90 |
| Degrees of Freedom | 4 |
| Shipment Weight | 0.120 kg |
| Shipment Dimensions | 10 x 10 x 6 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- For Installation Guide Please contact us with your ORDER ID
Package Includes:
1 x set of wood cutting parts
1 x pack of screws
4 x sg90 servos
