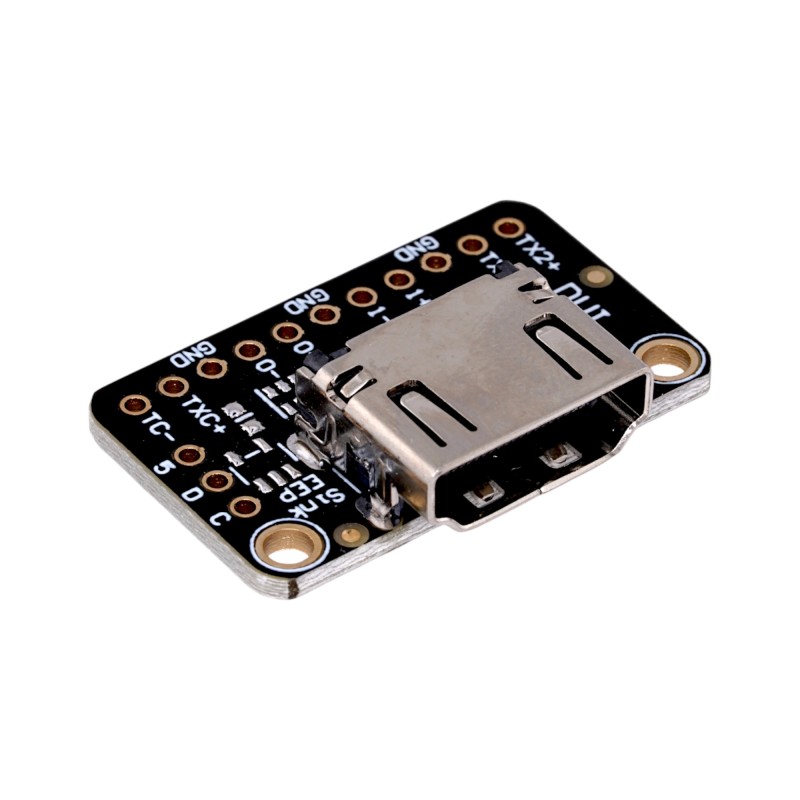

    DVI Breakout Board for HDMI Source Devices (Passive Connector Board)

    RBD-4109

    This DVI breakout board is a passive adapter designed to connect HDMI or DVI display cables to microcontroller-based video source projects. It contains only the required connector and series resistors, making it suitable for generating digital video signals from compatible controllers such as RP2040-based boards.

    BDT 450
    BDT 450 BDT 450 BDT 450 BDT 450
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 450 Tax excluded
    BDT 450 Tax included
    BDT 0 Tax
    BDT 450 Tax excluded
    BDT 0 Tax
    BDT 450 Tax included
    Quantity
    5 Items

    1 person has purchased this item
    2 people recently added this item to the cart
    Only 5 items left in stock
    Description

    Short Description

    This DVI breakout board is a passive adapter designed to connect HDMI or DVI display cables to microcontroller-based video source projects. It contains only the required connector and series resistors, making it suitable for generating digital video signals from compatible controllers such as RP2040-based boards.

    Key Features

    • Passive HDMI/DVI breakout board

    • Designed for video source applications only

    • Includes series resistors for signal lines

    • No active components on board

    • Supports custom digital video generation

    • Compact PCB layout

    Technical Specifications

    • Board Type: DVI / HDMI source breakout

    • Components:

      • HDMI/DVI connector

      • 220 ohm series resistors

    • Active Components: None

    • EEPROM Footprint: Optional, not populated

    • Intended Use: Video source only (not sink)

    • Signal Type: TMDS (DVI/HDMI compatible signaling)

    • PCB Color: Varies by batch

    • Country of Origin: Made in China

    Applications / Use Cases

    • Microcontroller-based video generation

    • RP2040 video output experiments

    • Embedded display demos

    • Educational digital video projects

    • Custom HDMI/DVI signal generation

    Connection Notes

    Typical signal mapping for RP2040-style projects may include differential data and clock pairs. All ground connections must be tied together to a common ground. Actual pin mapping depends on the controller and firmware used.

    Package Includes

    • 1 x DVI breakout board for HDMI source devices

    Notes / Warnings

    • This board is for source devices only and does not function as an HDMI/DVI sink

    • Requires firmware and hardware capable of generating compatible digital video signals

    • No active signal conditioning or protection is provided

    • HDMI/DVI cable not included

    This DVI breakout board provides a simple and low-cost way to connect digital video source projects to HDMI or DVI displays. Its passive design makes it ideal for experimentation, learning, and custom video output applications where full control of signal generation is handled by the host controller.
