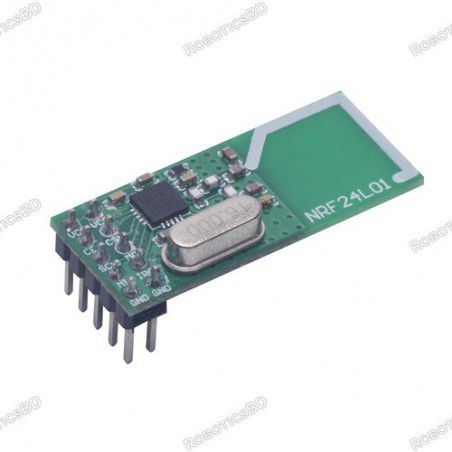

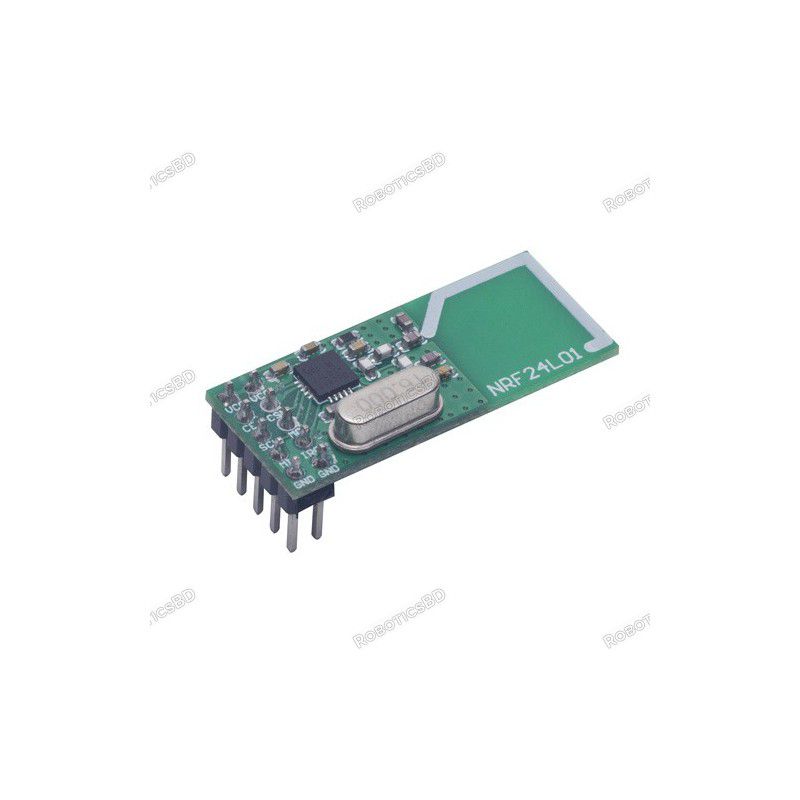

The NRF24L01 Wireless Data Transmission module in green, featuring 10 pins, enables seamless wireless communication in the 2.4GHz band. With high-speed data rates up to 2 Mbps, it facilitates reliable data exchange over a few hundred meters. Its SPI interface simplifies integration with microcontrollers, while low power consumption ensures efficient operation at 3.3V. This module, equipped with power, ground, SPI, and control pins, serves diverse applications. From remote control systems to IoT devices, its compact design and robust capabilities make it a go-to choice for enabling efficient and secure wireless data transmission in various electronic projects.
Features:
- Maximum operating speeds up to 2Mbps, GFSK modulation efficiency, Anti-interference ability, Particularly suitable for industrial control applications.
- 125 Channels, Multi-point communication, and frequency hopping to meet the communication needs
- Built-in hardware CRC error detection, Multipoint communication address control.
- Low-power 1.9 ~ 3.6V, only 1uA on Power-down mode
- Built-in 2.4Ghz antenna
- Available software to set the address only received local Address when output data(Provide interrupt instruction), can be directly connected to a variety of microcontrollers, Software programming is very convenient.
- Built-in voltage regulator
- Standard DIP Pitch Interface for embedded applications
- size: 34mm X 17mm X 1mm
Package Includes:
1 x NRF24L01 Wireless Data Transmission module (Green) The NRF24L01 Wireless Data Transmission module in green, featuring 10 pins, enables seamless wireless communication in the 2.4GHz band. With high-speed data rates up to 2 Mbps, it facilitates reliable data exchange over a few hundred meters. Its SPI interface simplifies integration with microcontrollers, while low power consumption ensures efficient operation at 3.3V. This module, equipped with power, ground, SPI, and control pins, serves diverse applications. From remote control systems to IoT devices, its compact design and robust capabilities make it a go-to choice for enabling efficient and secure wireless data transmission in various electronic projects.
Features:
- Maximum operating speeds up to 2Mbps, GFSK modulation efficiency, Anti-interference ability, Particularly suitable for industrial control applications.
- 125 Channels, Multi-point communication, and frequency hopping to meet the communication needs
- Built-in hardware CRC error detection, Multipoint communication address control.
- Low-power 1.9 ~ 3.6V, only 1uA on Power-down mode
- Built-in 2.4Ghz antenna
- Available software to set the address only received local Address when output data(Provide interrupt instruction), can be directly connected to a variety of microcontrollers, Software programming is very convenient.
- Built-in voltage regulator
- Standard DIP Pitch Interface for embedded applications
- size: 34mm X 17mm X 1mm
Package Includes:
1 x NRF24L01 Wireless Data Transmission module (Green) 10pin
