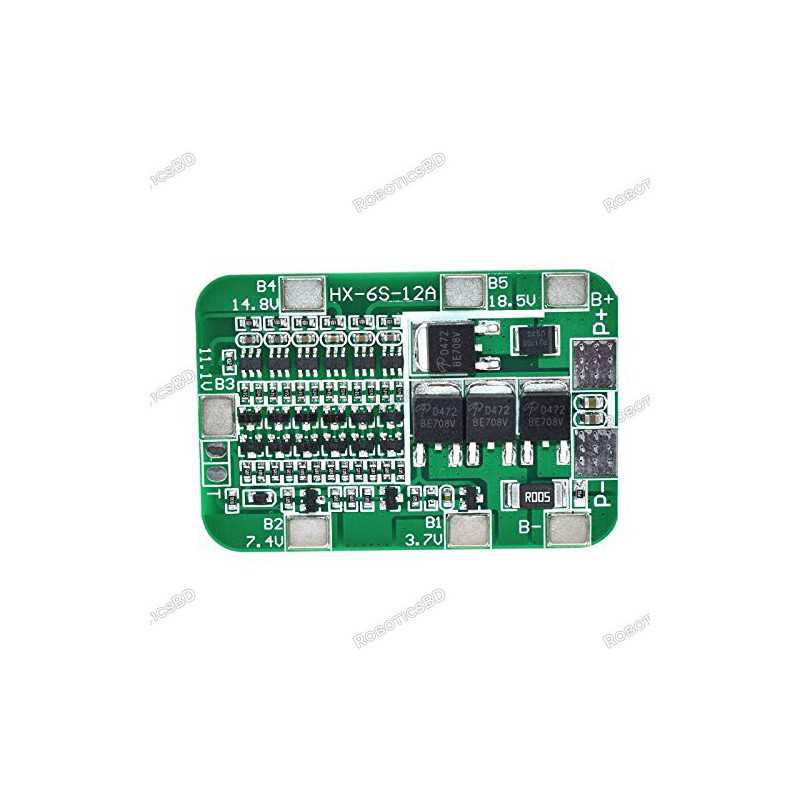

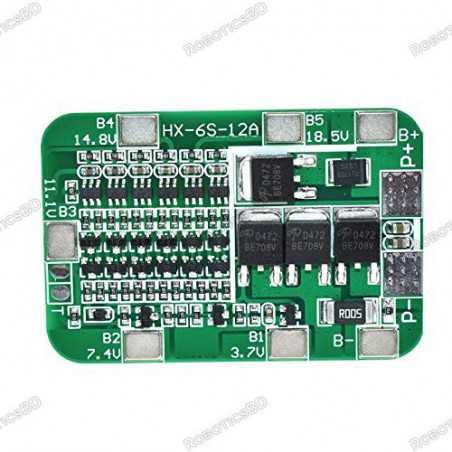

6S 15A 24V PCB BMS Protection Board for 6 Pack 18650 Li-ion Lithium Battery Cell Module DIY Kit Robotics Bangladesh
  • 6S 15A 24V PCB BMS Protection Board for 6 Pack 18650 Li-ion Lithium Battery Cell Module DIY Kit Robotics Bangladesh
  • 6S 15A 24V PCB BMS Protection Board for 6 Pack 18650 Li-ion Lithium Battery Cell Module DIY Kit Robotics Bangladesh
  • 6S 15A 24V PCB BMS Protection Board for 6 Pack 18650 Li-ion Lithium Battery Cell Module DIY Kit Robotics Bangladesh

6S 15A 24V PCB BMS Protection Board for 6 Pack 18650 Li-ion Lithium Battery Cell Module DIY Kit

RBD-1419

  • Model: 6S 15A 18650 Lithium Battery Protection Board
  • Balanced charge: None
  • Short circuit protection: Yes
BDT 450.00
BDT 450.00 BDT 450.00 BDT 450.00 BDT 450.00
Tax included Tax excluded Tax included Tax excluded
BDT 450.00 Tax excluded
BDT 450.00 Tax included
BDT 0.00 Tax
BDT 450.00 Tax excluded
BDT 0.00 Tax
BDT 450.00 Tax included
Quantity
In-Stock
29 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Battery protection board, as the name suggests battery protection board is mainly rechargeable (Refers to the lithium battery) and protects the integrated circuit board. As the lithium battery, its material determines itself can not be overcharge, over-discharge, overcurrent, short circuit, and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with sampling resistor, and a current fuse. RoboticsBD

Providing all above features this 6S BMS board can combine 6 x 18650 battery to form a battery pack to provide up to 24VDC output at 15A current which can be used for heavy applications such as Drilling Machine, Car Washer etc. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Overcharging and Over Discharging Protection

  2. Short circuit protection: Yes

  3. Applicable assembly: Nominal 3.7V Batteries / 6 strings.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Maximum discharge current 15A
Instantaneous discharge current 25A
Charging voltage 25.5V
Charging current 15A (MAX)
Overcharge detection voltage 4.28 ± 0.05V
Overcharge protection delay 0.1S
Overcharge release voltage 4.08 ± 0.05V
Over discharge detection voltage 2.55 ± 0.08V
Over discharge detection delay 0.1S
Over discharge release voltage 2.9 ± 0.1V
Overcurrent detection voltage 150mV
Main circuit conduction resistance ≤20mΩ
Working current ≤30uA
Sleep current (battery over discharge) ≤10uA
Length (mm) 49
Width (mm) 32
Height (mm) 2
Weight (gm) 16
Shipment Weight 0.01 kg
Shipment Dimensions 5 × 3 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 6S 25A 18650 Lithium Battery Protection Board.
