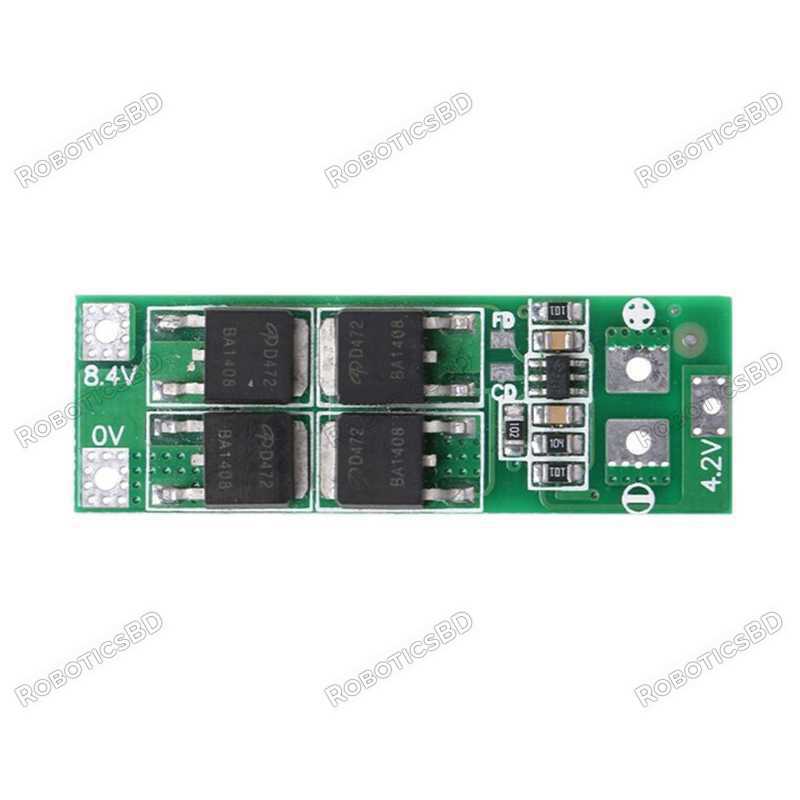

2S 20A 7.4V 8.4V 18650 Lithium Battery Protection Board/BMS Board Standard Robotics Bangladesh
  • 2S 20A 7.4V 8.4V 18650 Lithium Battery Protection Board/BMS Board Standard Robotics Bangladesh
  • 2S 20A 7.4V 8.4V 18650 Lithium Battery Protection Board/BMS Board Standard Robotics Bangladesh
  • 2S 20A 7.4V 8.4V 18650 Lithium Battery Protection Board/BMS Board Standard Robotics Bangladesh
  • 2S 20A 7.4V 8.4V 18650 Lithium Battery Protection Board/BMS Board Standard Robotics Bangladesh

2S 20A 7.4V 8.4V 18650 Lithium Battery Protection Board/BMS Board Standard

RBD-1536

  • Over Charge Voltage Range: 4.25-4.35 V + 0.05  V
  • Over Voltage Range: 2.5-3.0 V + 0.05 V
  • Max. Operating Current: 13 A
  • Max. Limiting Current: 20 A
  • Charging Voltage: 8.4-9 V
BDT 125.00
BDT 125.00 BDT 125.00 BDT 125.00 BDT 125.00
Tax included Tax excluded Tax included Tax excluded
BDT 125.00 Tax excluded
BDT 125.00 Tax included
BDT 0.00 Tax
BDT 125.00 Tax excluded
BDT 0.00 Tax
BDT 125.00 Tax included
Quantity
In-Stock
100 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

BMS (Battery Management System) – a battery management system that is designed to monitor the status of batteries, control the process of charging/discharging the battery, etc. RoboticsBD

Two batteries (18650) can be connected simultaneously to the charge-discharge controller module. The module has protection against short circuit, overcharge and over-discharge. One of the functions of the charge controller is to turn off the power supply for the batteries when the maximum capacity of at least one battery is reached. This BMS controller is designed for more than 30,000 hours of operation. The maximum allowable current is 20 A. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

This BMS module has 5 pins:

B+     : Battery positive pole
B-      : Battery negative pole
BM    : Mid-point of a battery assembly
P-      : Negative charge / discharge terminal
P+     :Positive charge/discharge terminal

If the maximum permissible value of the supply voltage is exceeded, the charge controller activates the “protection” mode. In order to restore the module, it is necessary to re-apply voltage to the input of the BMS board or wait a while until the charge controller automatically disables protection.

Power is supplied to the module from an external power source. The voltage range of the module is from 7.4 to 8.4 V. For charging, you can use a step-up voltage converter with a current limiter. Please note that this module is not a charger. RoboticsBD

Features:

  1. Small size designed for a four-cell battery pack.
  2. Simple and  convenient circuit for easy connections
  3. Over-charge/Over-discharge Protection.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Over Charge Voltage Range 4.25-4.35 V + 0.05 V
Over Voltage Range 2.5-3.0 V + 0.05 V
Max. Operating Current 13 A
Max. Limiting Current 20 A
Charging Voltage 8.4-9 V
Quiescent Current Lower than 10 µA
Internal Resistance <300 Ohm
Operating Temperature -40°C to +50°C
Length (mm) 44.77
Width (mm) 18.85
Height (mm) 3.5
Weight (gm) 4
Shipment Weight 0.005 kg
Shipment Dimensions 4 × 4 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 2S 20A 7.4V 8.4V 18650 Lithium Battery Protection Board/BMS Board Standard.
