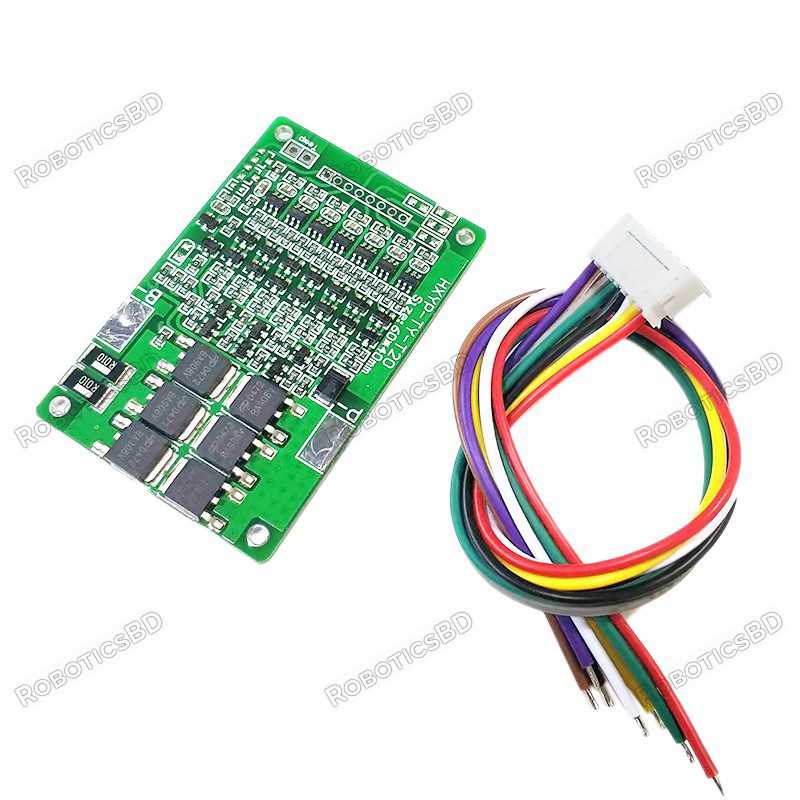

7S 24V 20A Balancing Li-ion 18650 BMS Protection Board

RBD-1474

  • This Lithium ion battery protection PCB protect single Lithium ion batteries.
  • 20A continous current.
  • Suitable for electric drills,motors,or aircraft models which require heavy current load.

BDT 650.00
BDT 650.00 BDT 650.00 BDT 650.00 BDT 650.00
Tax included Tax excluded Tax included Tax excluded
BDT 650.00 Tax excluded
BDT 650.00 Tax included
BDT 0.00 Tax
BDT 650.00 Tax excluded
BDT 0.00 Tax
BDT 650.00 Tax included
Quantity
In-Stock
27 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Discharge products with above 3A current, battery discharge rate should be more than 3C.RoboticsBD

Magnification calculation formula: 1C rate battery,2000 capacity equals 2AH x 1=2A working current;3C rate battery,2000 capacity equals 2AH x 3=6A working current. Short circuit protection, delay self-recovery, provides overcurrent, overcharge and over discharge protection. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Massager battery pack
  2. LED light backup power supply
  3. 12V electronic products
  4. Solar street light battery pack
  5. Monitoring standby power supply,etc.

Specification:

  1. 7 Series (7 batteries in series)
  2. 25.2V (rated voltage of 3.6V polymer battery)
  3. 25.9V (rated voltage of 18650 or 3.7V lithium battery)
  4. 29.4V (voltage after the lithium battery is fully charged)
  5. Upper limit working current: 15A
  6. Upper limit instantaneous current: 20A
  7. Overcharge voltage range: 4.25 +/- 0.05V
  8. Over-discharge voltage range: 2.5 +/- 0.05V
  9. Charging voltage: 29.4V
  10. Quiescent current: less than 30uA

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Material: Plastic + Metal
Model: HX-7S-TY-T20
Color: Green
Size: 6x4x0.6cm/1.3x1.2x0.1in(LxWxT)
Weight: 30 g
Shipment Weight 0.043 kg
Shipment Dimensions 12 × 9 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Note:

  1. CAN NOT be used for lithium iron phosphate battery, xenon lamp, and drill battery pack, electric fish battery pack, electric bicycle battery pack, baby car battery, 550 or more power type motor,1W fish eye LED light.
  2. Strictly to install as per wiring diagram OV(B-),3.7V(B1),7.4V(B2),11.1V(B +),do not intentionally short circuit! Connect the wire and then charge it.

Package Includes:

1 x 7S 24V 20A Balancing Li-ion 18650 BMS Protection Board.
