UNI-T UT120A Pocket Size Digital Multimeter Robotics Bangladesh
  • UNI-T UT120A Pocket Size Digital Multimeter Robotics Bangladesh

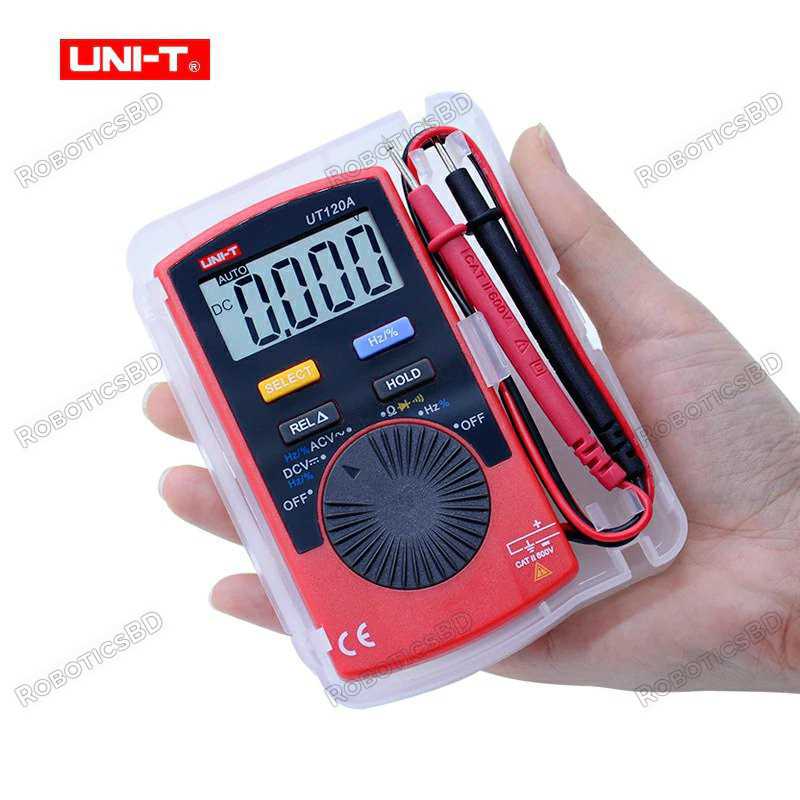

UNI-T UT120A Pocket Size Digital Multimeter

RBD-2510

UT120 series multimeters are designed for DIYers and electronics engineers to troubleshoot electronics systems development and electronics circuits. It is a simple and portable multimeter for every electronics engineer.



Models in UT120 Series: UT120A, UT120B, UT120C

Our Model Version is UT120A

BDT 1,850.00
BDT 1,850.00 BDT 1,850.00 BDT 1,850.00 BDT 1,850.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,850.00 Tax excluded
BDT 1,850.00 Tax included
BDT 0.00 Tax
BDT 1,850.00 Tax excluded
BDT 0.00 Tax
BDT 1,850.00 Tax included
Quantity
8 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Specifications of UT120 Series Pocket Size Digital Multimeters

Specifications Range UT120A UT120B UT120C
DC voltage (V) 600V ±(0.8%+1) ±(0.8%+1) ±(0.8%+1)
AC voltage (V) 600V ±(1.2%+3) ±(1.2%+3) ±(1.2%+3)
DC current (A) 400mA ±(1%+3)
AC current (A) 400mA ±(1.5%+5)
Resistance (Ω) 40MΩ ±(1%+2) ±(1%+2) ±(1%+2)
Capacitance (F) 100μF ±(4%+3) ±(4%+3)
Frequency (Hz) 10MHz ±(0.5%+3) ±(0.5%+3) ±(0.5%+3)
Features
Display count 4000 4000 4000
Auto range √ √ √
Duty cycle 0.1%~99.9% √ √ √
Diode √ √ √
Auto power off Around 30 minutes √ √ √
Continuity buzzer √ √ √
Low battery indication ≤2.4V √ √ √
Data hold √ √ √
Relative mode √ √ √
Input impedance for DCV Around 10MΩ √ √ √
General Characteristics
Power 3V battery (CR2032)
Display 43mm x 22mm
Product color Red and grey
Product net weight 76g
Product size 110mm x 58.2mm x 10.8mm
Standard accessories Battery, carrying case
Standard individual packing Blister, English manual
Standard quantity per carton 100pcs
Standard carton measurement 750mm x 275mm x 490mm (0.1CBM per export carton)
Standard carton gross weight 20kg
Product Details
RBD-2510
8 Items

Specific References

EAN13
2510
