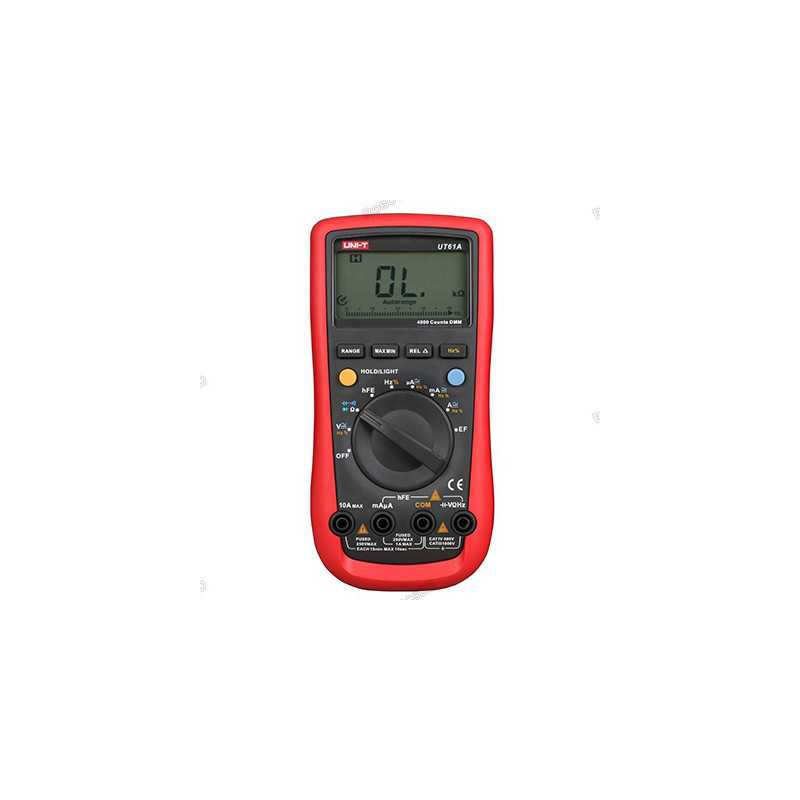

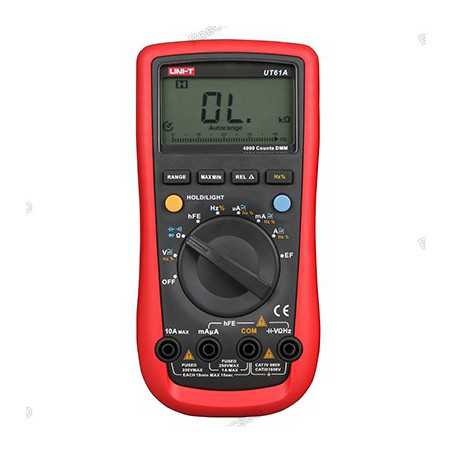

UNI-T UT61A Digital Multimeter

RBD-0711

  • Auto range
  • MAX/MIN/REL mode
  • Auto power off
  • LCD backlight
  • Analog bar graph
BDT 4,300.00 BDT 4,300.00 BDT 4,300.00 BDT 4,300.00 BDT 4,300.00
BDT 4,100.00 Save BDT 200.00
BDT 4,100.00 BDT 4,100.00 BDT 4,100.00 BDT 4,100.00
Tax included Tax excluded Tax included Tax excluded
BDT 4,300.00 BDT 4,100.00 Tax excluded
BDT 4,300.00 BDT 4,100.00 Tax included
BDT 0.00 BDT 0.00 Tax
BDT 4,300.00 BDT 4,100.00 Tax excluded
BDT 0.00 BDT 0.00 Tax
BDT 4,300.00 BDT 4,100.00 Tax included
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The UT61A is a digital multimeter manufactured by Uni-T. It is a versatile and accurate tool used to measure various electrical values such as voltage, current, resistance, capacitance, frequency, and temperature.

The UT61A has a 4 3/4 digit LCD display and can measure AC/DC voltage up to 1000 volts, AC/DC current up to 10 amps, resistance up to 40 megaohms, capacitance up to 4000 microfarads, frequency up to 40 MHz, and temperature up to 1000 degrees Celsius. It also has a continuity test function, a diode test function, and a data hold function.

The UT61A is powered by a 9-volt battery and is housed in a durable and ergonomic plastic case. It also features overload protection and is designed to meet the safety standards of EN61010-1, CAT III 1000V and CAT IV 600V.

The UT61A also has some additional features such as a relative measurement function, a peak value measurement function, and a USB interface for connecting to a computer for data logging and analysis.

Overall, the UT61A is a high-quality and versatile multimeter that can be used in a variety of applications, from basic electrical work to more advanced testing and analysis. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
DC voltage (V) 1000V ±(0.5%+1)
AC voltage (V) 750V ±(1%+3)
DC current (A) 10A ±(1%+2)
AC current (A) 10A ±(1.2%+5)
Resistance (Ω) 40MΩ ±(1%+2)
Capacitance (F) 4000μF ±(3%+5)
Frequency (Hz) 10Hz~10MHz ±(0.1%+4)

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Features
Display count 4000
Bandwidth (Hz) 45Hz~400Hz
Duty cycle 0.1%~99.9% √

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Large LCD screen
  2. High resolution analog pointer display.
  3. Full range overload protection.
  4. Data hold, REL, Peak value measurement.
  5. Low battery indication, backlight, and sleep mode
  6. External interface supports RS-232C and USB cable.
  7. Adjustment Buttons to select Mode, Setup, and Memory.

General Specification
Power 9V battery (6F22)
Display 65mm x 43mm
Product color Red and grey
Product net weight 370g
Product size 180mm x 87mm x 47mm
Shipment Weight 0.380 kg
Shipment Dimensions 18 × 9 × 5 cm
Frequency 9.999Hz～9.999MHz

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x UT61A Digital Multimeter

Product Details
RBD-0711

Specific References

EAN13
0711
