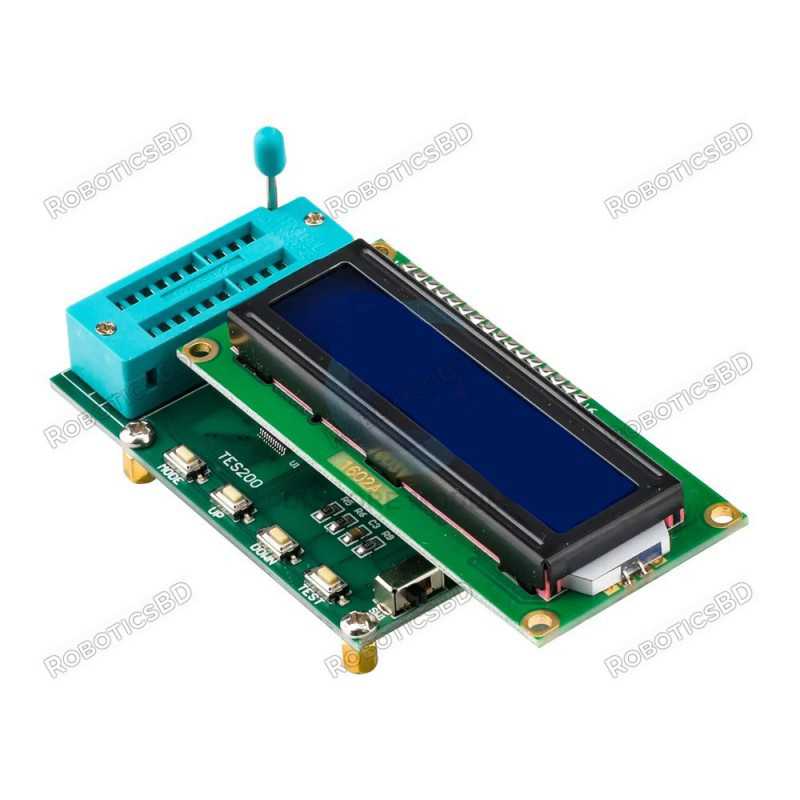

TES200 Digital Integrated Circuit 74 Series 40 series IC Logic Gate IC Tester

Product Selling Point:

1. Wide Applicability: Suitable for testing 74 series and 40 series digital ICs, with the capability to test over 200 types of integrations.
2. User-Friendly: Simple to use, IC testing can be easily performed through key operations.
3. Fast Response: Delivers results in as fast as 3 seconds.
4. Versatile Power Supply: Supports a DC wide voltage power supply, making it compatible with most power sources.
5. Compact Design: Small and exquisite appearance for convenience and portability.

Product Features:

The TES200 is a digital IC tester designed primarily for testing 74 series and 40 series digitalICs. It simplifies the testing of logic integrations and allows the user to identify faulty logic gates. IC testing is selected through key operation.

Product Application:

• Digital IC Test

Technical Parameters:

• Working Voltage: 7～12 VDC
• Working Current: <30 mA
• Working Temperature: -40℃～65℃
• Storage Temperature: -40℃～65℃

Interface Description and Related Operations:

• JK1 Power Interface (DC Head D13): Positive inside and negative outside. Supply voltage (7～12V) DC regulated power supply.
• SW1 Power Switch:
  • ON: Power is on.
  • OFF: Power is off.

Key Description:

• MODE: Selects the IC type (74 series or 40 series).
• UP: Selects the previous integrated model.
• DOWN: Selects the next integrated model.
• TEST: Tests the selected integrated model.

IC Models (74 series): 7400, 7401, 7402, 7403, 7404, 7405, 7406, 7407, 7408, 7409, 7410, 7411, 7412, 7413, 7414, 7415, 7416, 7417, 7418, 7419, 7420, 7421, 7422, 7424, 7425, 7426, 7427, 7428, 7430, 7432, 7433, 7434, 7435, 7436, 7437, 7438, 7439, 7440, 7442, 7443, 7444, 7445, 7446, 7447, 7448, 7454, 7464, 7470, 7472, 7473, 7474, 7475, 7476, 7477, 7478, 7480, 7482, 7483, 7485, 7486, 7487, 7489, 7494, 7495, 7496, 74101, 74102, 74103, 74107, 74108, 74109, 74112, 74113, 74125, 74126, 74128, 74130, 74132, 74133, 74134, 74135, 74136, 74137, 74138, 74139, 74140, 74145, 74147, 74148, 74151, 74152, 74153, 74155, 74156, 74157, 74158, 74160, 74161, 74163, 74164, 74165, 74166, 74171, 74173, 74174, 74175, 74176, 74177, 74180, 74182, 74190, 74191, 74192, 74193, 74194, 74195, 74197, 74242, 74243, 74247, 74248, 74249, 74251, 74253, 74256, 74257, 74258, 74259, 74260, 74266, 74279, 74280, 74283, 74290, 74293, 74295, 74298, 74350, 74352, 74353, 74365, 74366, 74367, 74368, 74375, 74378, 74379, 74390, 74393, 74395, 74425, 74426, 74445, 74447, 74490, 74595, 74670

IC Models (40, 45 series): CD4000, CD4001, CD4002, CD4006, CD4007, CD4008, CD4009, CD4010, CD4011, CD4012, CD4013, CD4014, CD4015, CD4016, CD4017, CD4018, CD4019, CD4020, CD4021, CD4022, CD4023, CD4024, CD4025, CD4026, CD4027, CD4028, CD4029, CD4030, CD4033, CD4035, CD4040, CD4042, CD4043, CD4044, CD4048, CD4049, CD4050, CD4051, CD4052, CD4053, CD4060, CD4066, CD4068, CD4069, CD4070, CD4071, CD4072, CD4073, CD4075, CD4076, CD4077, CD4078, CD4081, CD4082, CD4085, CD4093, CD4094, CD4099, CD4502, CD4503, CD4504, CD4510, CD4511, CD4512, CD4516, CD4518, CD4520, CD4522, CD4526, CD4529, CD4532, CD4539, CD4543, CD4555, CD4556, CD4584, CD40106, CD40110, CD40161, CD40162, CD40174, CD40175, CD40192, CD40193
