UT890D Digital Multimeter
  • UT890D Digital Multimeter

UNI-T UT603 LCR meter

RBD-0907

  • Resistance (Ω) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
  • Capacitance (F) 2nF/20nF/200nF/2uF/20uF/200uF/600uF
  • Inductance (H) 2mH/20mH/200mH/2H/20H
BDT 5,950.00
BDT 5,950.00 BDT 5,950.00 BDT 5,950.00 BDT 5,950.00
Tax included Tax excluded Tax included Tax excluded
BDT 5,950.00 Tax excluded
BDT 5,950.00 Tax included
BDT 0.00 Tax
BDT 5,950.00 Tax excluded
BDT 0.00 Tax
BDT 5,950.00 Tax included
Quantity
In-Stock
9 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

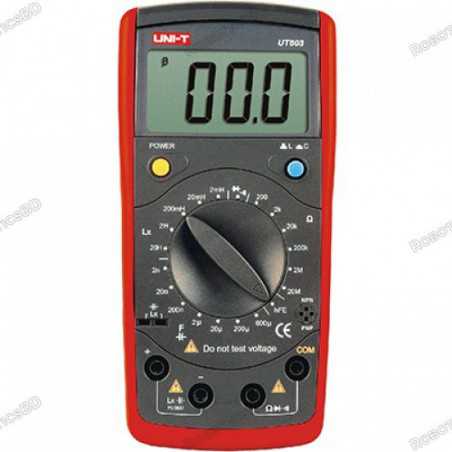

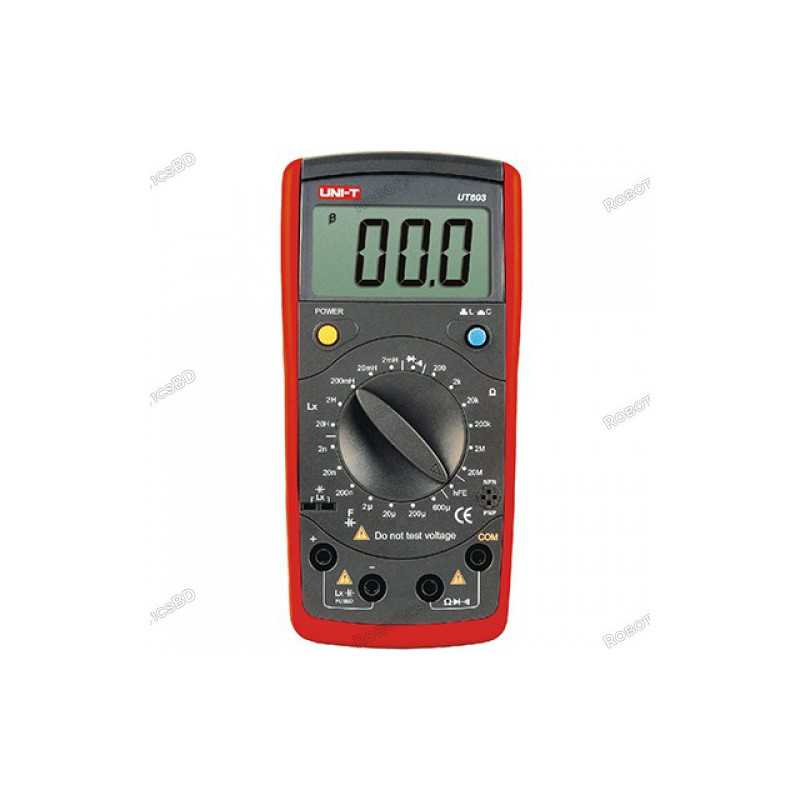

The UNI-T UT603 is an LCR meter, which is a specialized tool used to measure inductance, capacitance, and resistance values of electronic components.

The UT603 has a 3 1/2 digit LCD display and can measure capacitance up to 200 microfarads, inductance up to 20 henries, and resistance up to 20 megaohms. It also has a range selector function and a data hold function.

The UT603 is powered by a 9-volt battery and is housed in a durable and ergonomic plastic case. It also features overload protection and is designed to meet the safety standards of EN61010-1, CAT III 300V.

The UT603 is a reliable and accurate tool used in a variety of applications, such as circuit design, electronic repair, and quality control. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Features
Resistance (Ω) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(0.8%+1)
Capacitance (F)

2nF/20nF/200nF/2uF/20uF/

200uF/600uF

 ±(1%+5)
Inductance (H) 2mH/20mH/200mH/2H/20H ±(2%+8)

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Display count 2000
  2. Manual range Yes
  3. Precise Diode Measurement
  4. Transistor Measurement
  5. Continuity buzzer
  6. Low battery indication. RoboticsBD

General Specification
Power 9V battery (6F22)
Display 61mm x 32 mm
Product color Red and grey
Product net weight UT601/UT602: 310g, UT603: 312g
Product size 172mm x 83mm x 38mm
Weight (gm) 312
Shipment Weight 0.315 kg
Shipment Dimensions 17.5 × 8.5 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x UNI-T UT603 LCR meter

Product Details
RBD-0907
9 Items

Specific References

EAN13
0907
