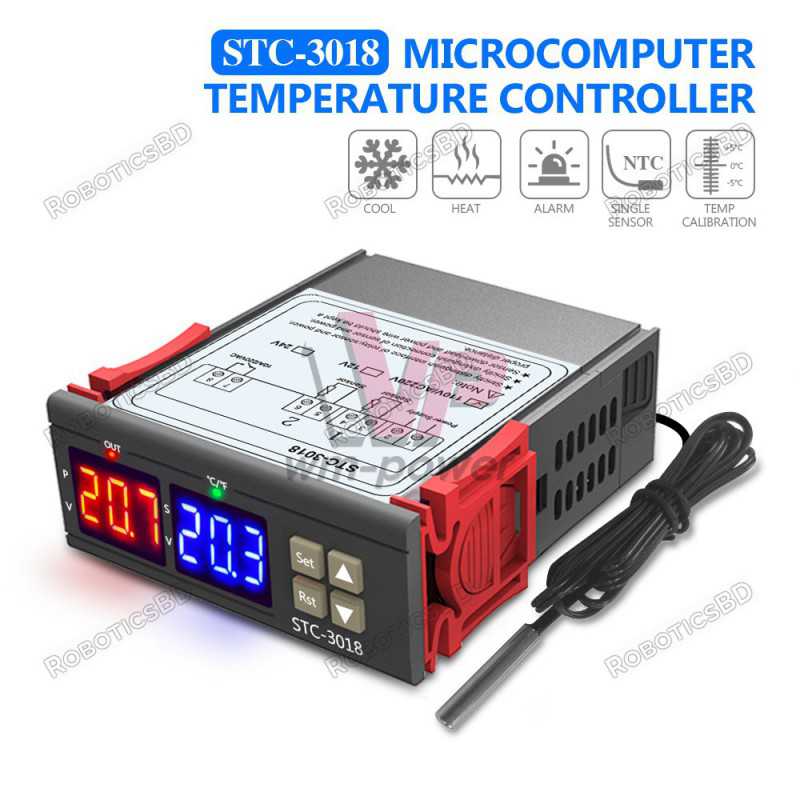

STC-3018 220V 10A Digital Temperature Controller 24V

RBD-1221

  • Display Type:Digital
  • Operating Voltage: AC110-220V
  • Temperature sensor: NTC 10K
  • Senor length:1.0m
  • Temperature measuring range: -55 ° C ~ 120 ° C
  • Resolution: 0.1 ° C
  • Accuracy:±1° C
BDT 1,700.00
BDT 1,700.00 BDT 1,700.00 BDT 1,700.00 BDT 1,700.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,700.00 Tax excluded
BDT 1,700.00 Tax included
BDT 0.00 Tax
BDT 1,700.00 Tax excluded
BDT 0.00 Tax
BDT 1,700.00 Tax included
Quantity
In-Stock
23 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

STC- 3018 AC110-220V Dual Digital Temperature Controller Thermostat is a Hygrometer C / F Thermostat. It has a Power supply of  110-220VAC. 5. It has application range is like home temperature control, farm, various cold storage, greenhouse, aquarium, etc. RoboticsBD

Normal mode: The red digital tube on the left shows the real-time temperature, the blue digital tube on the right shows the set temperature.
Setting mode: The red digital tube on the left displays the setting mode, the blue digital tube on the right displays the setting contents. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

How to set the start or stop temperature:
  1. Press the “SET” button once and the screen flashed, Press the “up” and “Down” button to set the temperature.
  2. Long press  “SET”button for 5 seconds to enter set Mode:

Wiring Diagram:

Features:

1.Heating or cooling control. Red and blue dual led display
2.Control mode of return difference; Temperature display resolution 0.1
3.Multiple alarm mode selection; Switch between ° C and °F
4.Support temperature correction and support for power loss (the parameters of the sudden power failure are still valid

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Power supply 110-220VAC
Measurement temperature range -55 ° C ~ +120 ° C
Resolution 0.1
Accuracy ±1 °C
Relay output contact capacity(heating) 10A/240VAC
Relay output contact capacity(cooling) 10A/240VCA
Temperature sensor NTC 10K
Senor length 1.0m
Power consumption <3W
Shell material gray ABS flame retardant plastic shell
Shipment Weight 0.4 kg
Shipment Dimensions 8 × 8 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x STC-3018 220V 10A Digital Temperature Controller 24V
