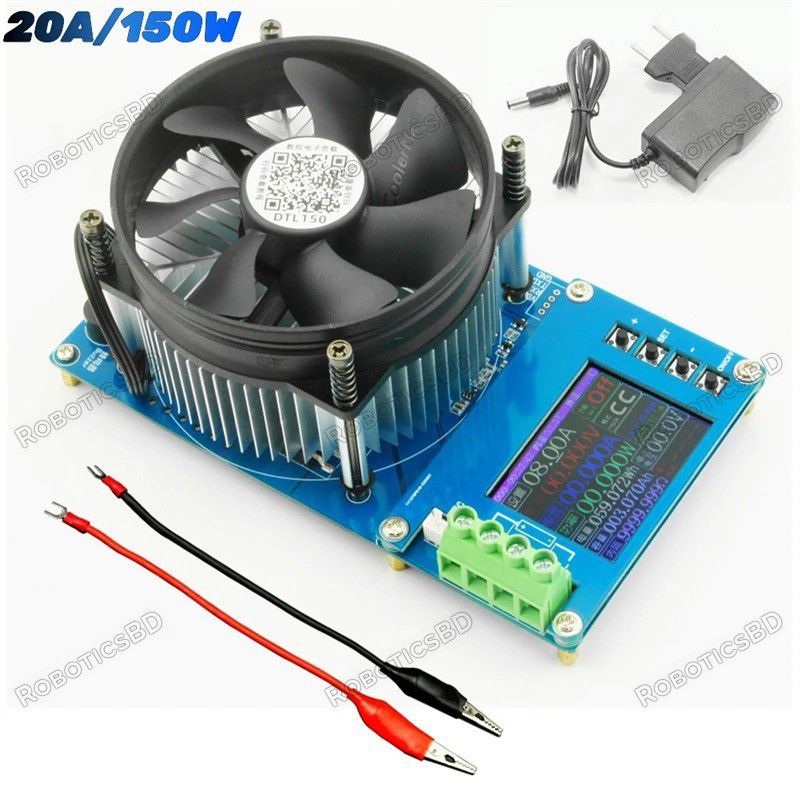

DTL150 4-WIRE Battery Capacity Tester Electronic Load Power Tester Discharge Meter 150W 20A
This Battery Discharge Tester is a versatile and reliable device designed to test and measure various parameters of power supplies, batteries, and other electronic devices. With its wide range of measurement capabilities, it is suitable for both professional and DIY applications.
It features a compact and user-friendly design, making it easy to operate and carry. It comes with a clear LCD screen that displays the measured values, allowing for quick and accurate readings. The device offers multiple measurement modes, including constant current discharge, constant resistance, constant power, and constant voltage.
Key Features:
- Test voltage range: 2~200V
- Working current range: 0.2~20A
- Constant load regulation: +/-3%+3 bytes
- Discharge power limitation: voltage × current <150W (DL24) / <180W (DL24P)
- Built-in overcurrent, overtemperature, and overpower safety protection functions
- Four ways to connect: Apple/Android mobile app, computer wired/Bluetooth online app
- Comprehensive measurement parameters: voltage, current, power, capacity, electricity, impedance, temperature, and time
- Fan cooling system with automatic control based on temperature threshold
- Screen standby time options: always on or customizable duration
- Low voltage stop range: 0~150V
- Time-limited discharge function: 0~99:59 hours:minutes
- Compact size: 155×96×80mm / Packaging size: 195×105×135mm
- Lightweight: 630g (including power supply) / 400g (net weight)
- Wide working temperature range: -10~60℃
- Working humidity: 10~80% (non-condensing)
This Battery Discharge Tester offers a variety of applications and functions. It can be used to test and evaluate power supplies, batteries, and mobile power banks. The device allows you to measure and analyze voltage, current, power, capacity, electricity, impedance, temperature, and time accumulation. It also provides over-limit alarm settings for voltage, current, and power protection.
The tester supports connection with mobile phones (Apple/Android) and computers for remote monitoring and control. You can download the dedicated app for your device or connect via Bluetooth or USB. The user-friendly interface and intuitive controls make it easy to set up and operate the tester.
Whether you are a professional electronics technician or a hobbyist, the DL24 Battery Discharge Tester is a valuable tool for testing, analyzing, and maintaining power supplies and batteries. Its compact design, comprehensive measurement capabilities, and versatile connectivity options make it an essential device for anyone working with electronic equipment.
