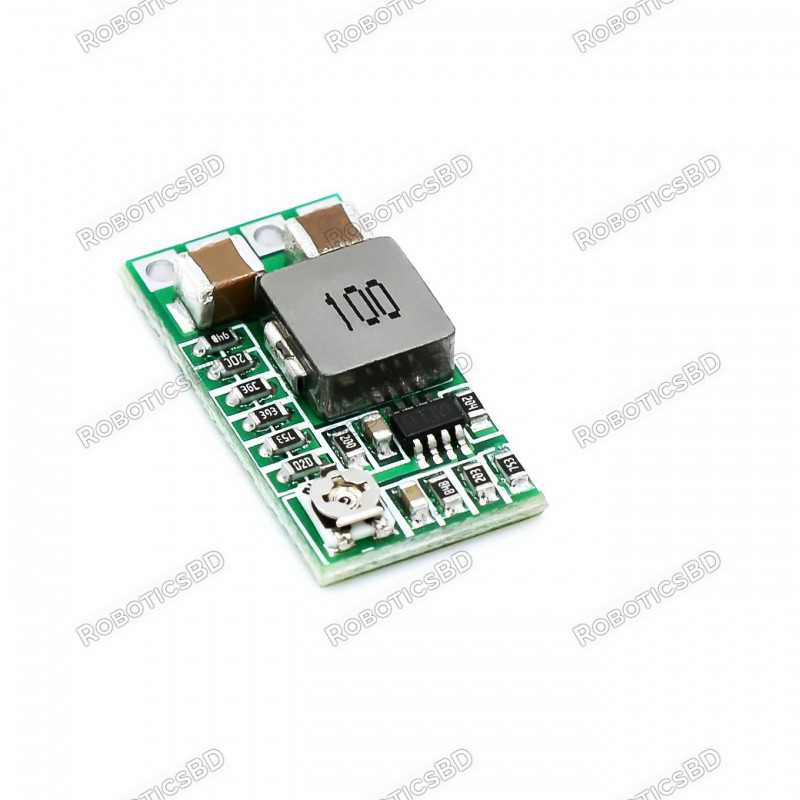

MINI Super Size (20 x 10 mm ) DC Step-Down Converter Power Module uses an integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient. This Module can be used as a DIY mobile power, monitor power supply, power buggies, camera power supply, car power, communications equipment supply, various right size and weight for demanding applications (such as aviation models, etc.)
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: Product images/ Components brand may vary from actual product as our stock rotates.
General Specification | |
Input Voltage | :DC 4.5-24V |
Output Voltage | integration adjustable and fixed output,back side can choose fiexd output voltage |
Adjustable Range | 0.8-17V,fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V) |
Output Current | 3A (max),actual testing input 12V output 1.5A |
Transform Efficiency | 97.5%(max) (6.5 to 5V 0.7A) |
Switch Frequency | 500KHz |
Output Ripple Wave | 20mV (12V to 5V 3A) 20m band width |
Operating Temp. | -40 Celsius-85 Celsius |
Output Overvoltage Protection | no |
Static Current | 0.85MA |
Load Adjust Rate | =+-1% |
Voltage Adjust Rate | =+-0.5% |
Dynamic Response Speed | 5% 200uS |
Output Short Circuit Protection | yes |
Input Transposition Protection | no |
Enable Control | yes |
Shipment Weight | 0.005 kg |
Shipment Dimensions | 3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x MINI Super Size DC Step-Down Module
