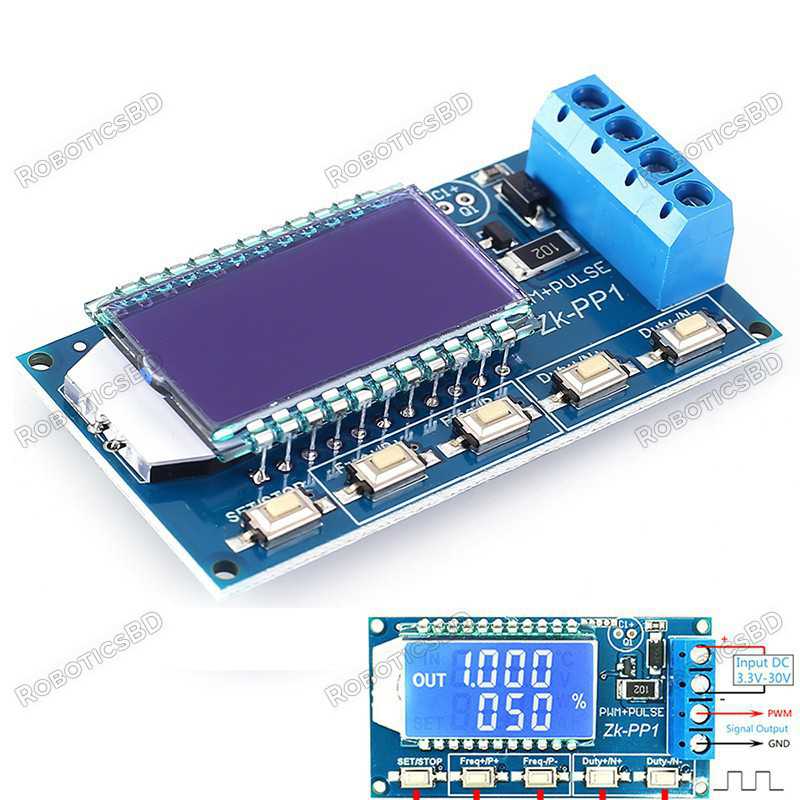

Product Description: The ZK-PP1 PWM Signal Generator is a versatile device designed to provide precise electrical signals for a variety of applications. Equipped with dual modes—PWM mode and PULSE mode—this signal generator offers flexibility and ease of use. Its LCD high-definition display allows for convenient monitoring and adjustment of frequency and duty cycle settings, ensuring accurate signal generation. With high precision detection and support for power-down memory function, this signal generator delivers reliable performance in diverse testing scenarios. Whether used as a signal source or an excitation source, the ZK-PP1 is an indispensable tool in production practices and technology.
Specifications:
- Product Name: ZK-PP1 PWM Signal Generator
- Model: ZK-PP1
- Working Voltage: DC 3.3V-30V
- Frequency Range: 1Hz~150KHz
- Frequency Accuracy: ±2%
- Duty Cycle Range: 0.00%-100%
- Output Current: Approximately 30mA
- Number of Pulses: 1~9999 or Infinite
- Delay Time: 0.000s~9999s
- Pulse Width: 0.000s~9999s
- Time Accuracy: 1ms
- Output Amplitude: Same as input voltage
- Working Temperature: -40℃~85℃
- Working Humidity: 0%~95%RH
- Size: 60 x 32 x 13.5mm
Work Modes:
-
PWM Mode:
- Frequency, Duty cycle
- Short press FREQ+/- to set output frequency.
- Short press DUTY+/- to set output duty cycle.
- Short press STOP to enable/disable output.
-
PULSE Mode:
- Pulse width, Delay, Pulse number
- Short press P+/- to set positive pulse width.
- Short press N+/- to set negative pulse width.
- Long press SET for 2 seconds to enter settings for number of pulses and delay time.
- Short press STOP to enable/disable output.
Practical Applications:
- Square wave signal generator
- Motor driver control
- MCU pulse generation
- Dimmer
- Speed governor
Package Includes: 1 x ZK-PP1 PWM Signal Generator
Notes:
- This signal generator provides 1-channel signal output.
- Maximum output current is 30mA, suitable for driving low-power devices.
- Please refer to the user manual and description before use.
