The DSO series oscilloscope is an Open Hardware pocket-size compatible 32bit digital storage oscilloscope, it based on ARM -M3, equipped with 320 x 240 colour display, SD card, USB port and recharging function. It’s compact, simple to operate; meets the basic demands of school lab, electric furniture repairment and electric engineering. As all the hardware/firmware are open for hackers, It can be also a good STM32 platform for hackers DIY Projects.
Main Highlights:
Portable:
The slim and compact design can fit perfectly inside your pocket, without losing any of the integral features found in a full-sized oscilloscope!
Powerful:
System stores files in BMP, DAT, BUF, or CSV format. Uses a built-in flash disk to save/read waveform images. Math waveforms are as follows: DATA, -DATA, Inp+D, Inp-D, -Inp. Output test signal: 10Hz—1MHz (1-2-5 sequence step). Can be used in a wide range of environments including academic, electronic maintenance, electronic engineering, etc.
LCD Screen:
The 2.8inch full-colour TFT LCD screen provides a rich display for its smaller size.
Rechargeable:
A built-in 500mAH rechargeable lithium battery provides power for your oscilloscope use, rechargeable through a mini USB port.
Large Storage:
Comes with a built-in 8MB storage for saving waveform data and images!. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Lightweight digital storage oscilloscope
- Coupling: DC/AC
- Max sampling rate: 1 MSa/s
- Analog broadband: 200kHz
- Max sampling memory depth: 8K
- Analog input impedance: 1MΩ
- Max input voltage: ±40Vpp(x1 probe)
- Vertical sensitivity: 10mv/Div~10V/Div (1-2-5 sequence step)
- Horizontal sensitivity: 1uS/Div~10S/Div (1-2-5 sequence step)
- 2.8″color TFT LCD display (320×240 pixels)
- Recharging through mini USB port
- Internal 500mAh lithium battery
- Weight: 65g
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Outdoor maintenance (AC / DC switching power supply or inverter, elevator and building fire-fighting equipment, industrial control circuit, etc…)
- Hardware maintenance or software debugging of RS232, RS485, I2C, CAN and other communications interface circuits, LED display and keyboard scan driver circuit, the brushless motor drive circuit
- Analyze audio devices and circuits, electronic toys and remote control models, automotive electronics circuits
- Academic use provided practice for student development of small electronic production
- Observe signal changes in certain circuits (such as relay and switch contacts jitter, battery charge and discharge curve, the load transient response power supply, temperature sensor characteristic measurement, etc…)
- Power supply related electronic circuits (SCR voltage regulation, power factor correction, electronic energy-saving lamps, sodium lamps, dysprosium lamp mercury xenon lamps lamp drive circuit, etc…)
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Model |
DS211 |
| MCU |
STM32F103VC |
| ADC |
MCU internal ADC |
| Number of Channel |
1 Analog + 1 internal |
| Analog Bandwith |
200KHz |
| Maximum Sampling Rate |
1MSa/s |
| Maximum Memory Depth |
8K |
| Horizontal Scanning Speed |
1uS/Div~2S/Div(1-2-5 Sequence Step) |
| Vertical Sensitivity |
20mv/Div~10V/Div(1-2-5 Sequence Step) |
| Input Resistance |
1MΩ |
| Coupling |
DC/AC |
| Trigger Mode |
Ascend/Descend Edge Trigger Mode |
| Auto Adjustment Mode |
Auto Fit |
| Operation |
-A, RecA, A+RecA |
| Signal Output Wavesforms |
Square, Sine, Triangle, and Sawtooth |
| Storage |
8 MB Built U Disk |
| APP can be loaded Quantity |
1 |
| USB Interface |
Micro USB |
| Battery |
550 mAh |
| Screen Size |
2.8" |
| Screen Resolution |
320 x 240 |
| Dimensions(LxWxH)mm |
107 x 56 x 12 |
| Weight |
65g |
| Color |
Black-White |
| Shipment Weight |
0.175 kg |
| Shipment Dimensions |
10 × 8 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Datasheet
- Firmware
Package Includes:

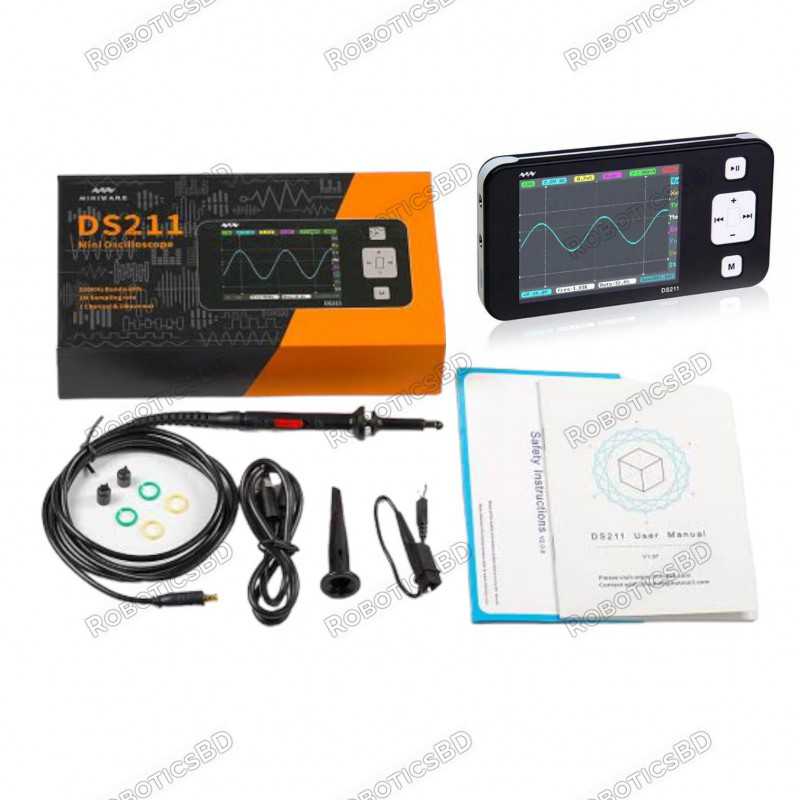

1 x DS211 Mini Pocket Portable Oscilloscope
