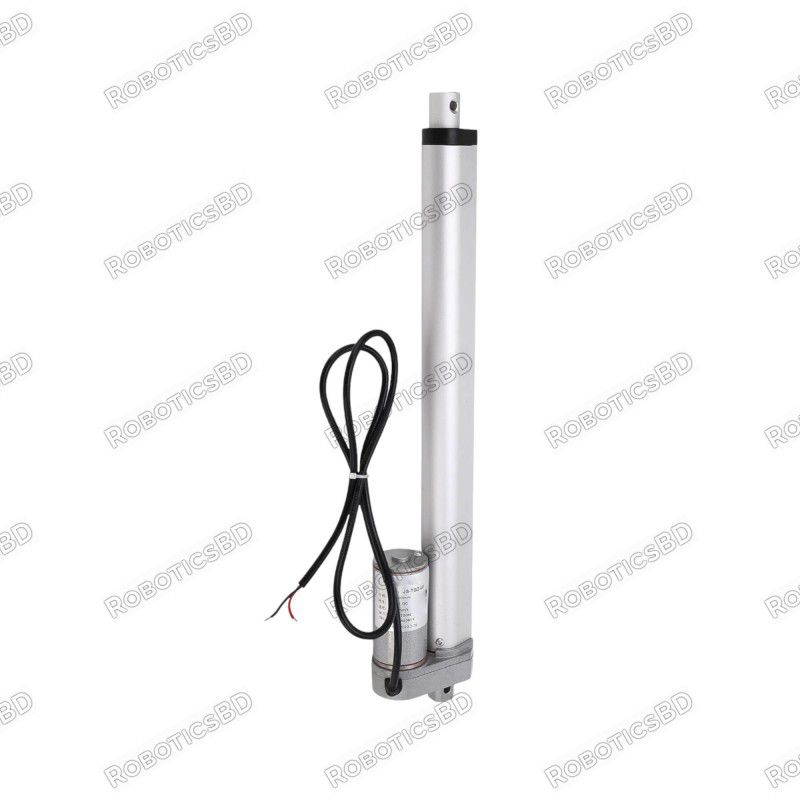

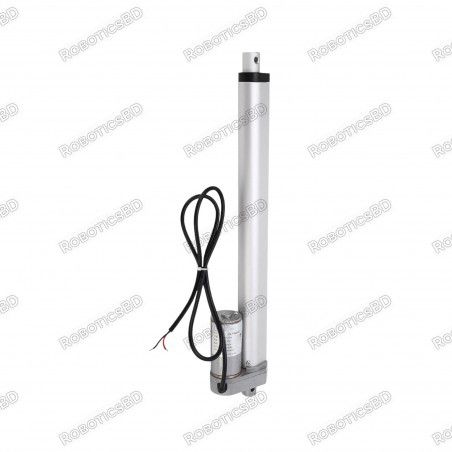

The 12V DC heavy-duty linear actuator (300mm stroke) is a powerful and reliable solution for various industrial, agricultural, and construction applications requiring long-stroke linear motion. This actuator boasts a maximum force of 900N and a stroke length of 300mm, making it suitable for demanding tasks like pushing, pulling, lifting, and adjusting.
Built to Last:
Engineered for harsh environments, this actuator features a sturdy metal construction for long-lasting durability. Additionally, the IP54 weather resistance rating ensures protection against dust, water, and other external elements. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Note:
1. The following conditions can cause serious damage to the product.
1. Direct connect with AC power
2. Use in the above standard voltage environment
3. Push/Pull exceed the maximum value of the product show
4. The stroke did not finish, still with power, forced to cease.
2. The following conditions may shorten the product’s life.
1. High-frequency operation
2. High temperature
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Linear Actuator Parts:
The following figure shows various parts of the Linear Actuator. Also, please refer to the schematic provided in the attachments for the dimensions of the actuator. Featured By RoboticsBD.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Aluminum frame and extension tube
- Compact Design
- Built-in Limit Switch
- Low Noise
- Moisture-proof Surface
- Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
- Permanent magnet DC motor drive: Voltage 12VDC
Applications:
- Autos, solar tracking system, agricultural machinery, the wedding system, industrial electric lifting system
- The medical electric bed, surgical bed, traction bed
- Electric equipment: Electric sofa, Electric lifting lever, Electric booth, electric sunroof, etc;
- Chair for medical use: Electric wheelchair, massage chair, dental chair.
- Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras, and more. RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Voltage |
12V DC |
| Speed |
20 mm/s |
| Maximum Force |
500N |
| Duty Cycle |
20% |
| Stroke Length |
300mm |
| Total Length |
550mm (retracted) |
| Mounting Type |
Fixture H |
| Operating Temp. |
-25°C to 65°C |
| Safety Features |
Limit switches |
| Weatherproofing |
IP65 |
| Shipment Weight |
1.345 kg |
| Shipment Dimensions |
42 x 10 x 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x 12V DC Long-Stroke Linear Actuator - 300mm
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
If you need actuators in different sizes, we also have those available. Please check the links below.
