Power Transformer 12V 1A

RBD-1503

  • Input Voltage: 230V AC
  • Output Voltage: 12V or 0V
  • Output Current: 1 Amp
  • Soft Iron Core.
  • 1 Amp Current Drain.
BDT 245.00
BDT 245.00 BDT 245.00 BDT 245.00 BDT 245.00
Tax included Tax excluded Tax included Tax excluded
BDT 245.00 Tax excluded
BDT 245.00 Tax included
BDT 0.00 Tax
BDT 245.00 Tax excluded
BDT 0.00 Tax
BDT 245.00 Tax included
Quantity
Last items in stock
3 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

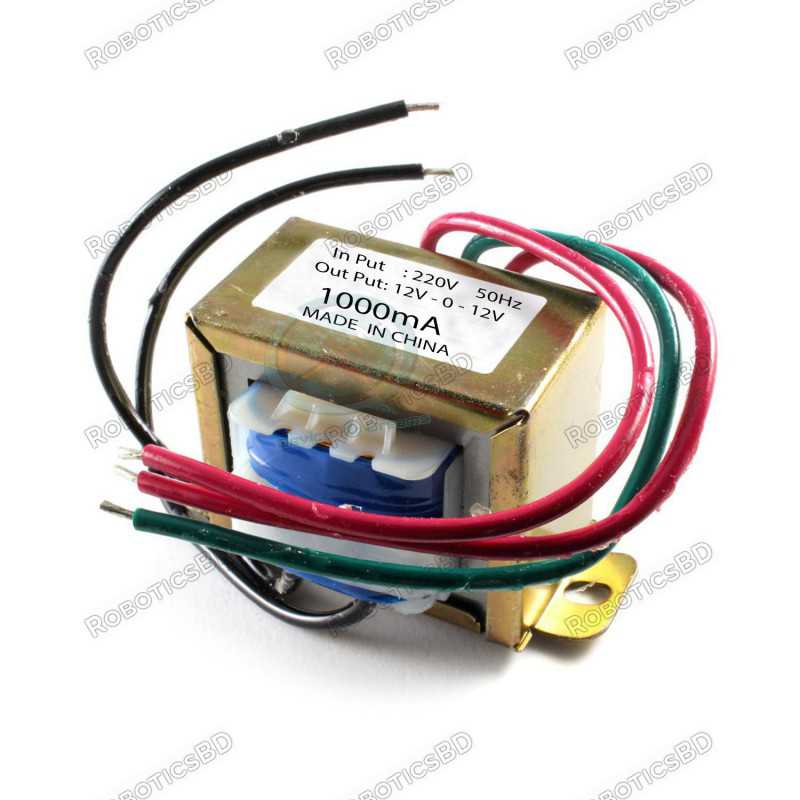

12-0-12 1Amp Step-Down Transformer is a general-purpose chassis mounting mains transformer. The transformer has 230V primary winding and non-centre tapped secondary winding. The transformer has flying coloured insulated connecting leads ( Approx 100 mm long ). The Transformer act as a step down transformer reducing AC – 230V to AC – 12V. RoboticsBD

The Transformer gives outputs of 12V and 0V. The Transformer’s construction is written below with details of Solid Core and Winding.

The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformer’s core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding. The transformer has cores made of high permeability silicon steel. The steel has a permeability many times that of free space and the core thus serving to greatly reduce the magnetizing current and confine the flux to a path that closely couples the winding.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD



Features:

  1. Soft Iron Core.
  2. 1 Amp Current Drain.
  3. 100% Copper Winding
  4. DIY projects Requiring In-Application High current drain.
  5. On chassis AC/AC converter.
  6. Designing a Battery Charger.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Input Voltage (V AC) 230V AC
Output Voltage(V) 12V or 0V
Max Output Current (mA) 1000
Winding Type Copper
Mounting Type Vertical mount type
Shipment Weight 0.283 kg
Shipment Dimensions 8 × 6 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 12V 1A Power Transformer.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1503
3 Items

Specific References

EAN13
1503
