    DT-06 TTL to WIFI Module Robotics Bangladesh
    • DT-06 TTL to WIFI Module Robotics Bangladesh

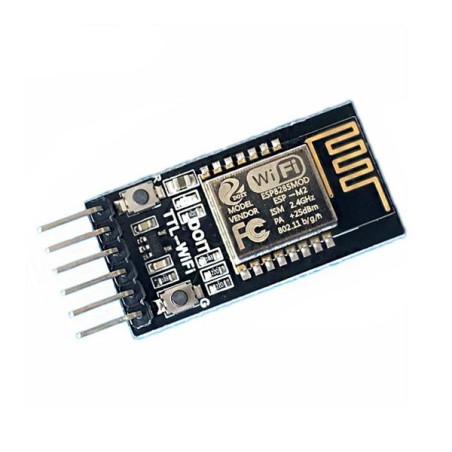

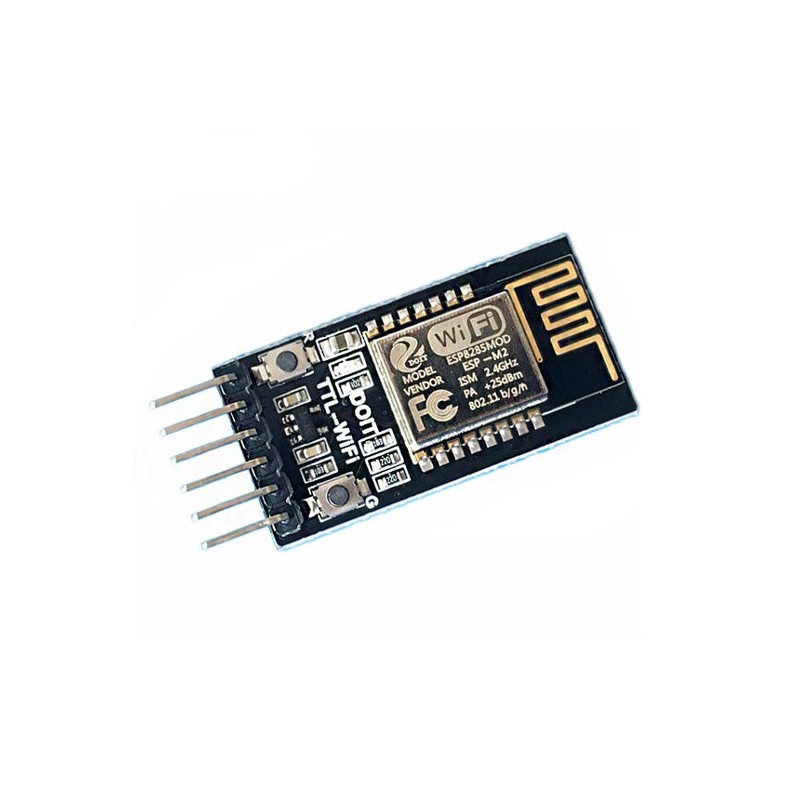

    DT-06 TTL to WIFI Module

    RBD-1578

    • Support serial AT command
    • Support re-programmable, OTA firmware update
    • Seamless transparent transmission between serial and WiFi
    • Built-in HTTP Web Server, support configure parameters by web page
    BDT 490
    BDT 490 BDT 490 BDT 490 BDT 490
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 490 Tax excluded
    BDT 490 Tax included
    BDT 0 Tax
    BDT 490 Tax excluded
    BDT 0 Tax
    BDT 490 Tax included
    Quantity
    In-Stock
    10 Items

    36 people have purchased this item
    10 items in stock
    Description

    DT-06 Module is based on ESP8285 ESP M2 module and provides easy to use WIFI to any UART Serial port and is pin compatible to HC-06 Bluetooth modules. If a project already uses Bluetooth then you can very easily convert into Wi-Fi without any change in code. RoboticsBD

    Using the built-in web interface transparent WIFI-UART communication can be setup for TCP or UDP sockets on any port.

    This module requires NO configuration to get started!

    This module powers up as a standalone Access Point at DOIT_WIFI_XXXX with an IP address of 192.168.4.1.

    Any message sent to 192.168.4.1 on port TCP 9000 will be sent to TX/RX @ 9600bps and vice-versa.

    Connect module to Arduino or TX/RX of USB to Serial adapter. RoboticsBD

    Connect phone or PC via Wi-Fi to Access Point (SSID will show up as DOIT_WIFI_XXXX or something similar -- no password).

    Use a TCP Terminal or your own applications to send and receive messages to and from 192.168.4.1 on port TCP 9000.

    Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Applications:

    1. Smart home
    2. Wireless data connection
    3. Transparent transmission
    4. Smart car control
    5. Wireless serial printer
    6. LED light industrial control etc.

    Features:

    1. Fully compatible with the original electrical interface and physical interface for the serial transparent Bluetooth.
    2. Built-in the industrial transparent transmission firmware V3.0 with stability and reliability by using the Web Configuration.
    3. Built-in the high performance Wi-Fi module ESP-M2 with size : 34mm*17mm*4mm.
    4. Working voltage : 4.5V~6.0V, TTL working voltage : 3.3V (compatible with 5.0V).
    5. Provided pins : STATE, TXD, RXD,EN.
    6. Average current : 80mA; when data sent, it is 170mA; but it is 20μA at deep sleep mode.
    7. Support serial AT command.
    8. Support re-programmable, OTA firmware update.
    9. Seamless transparent transmission between serial and Wi-Fi.
    10. Built-in HTTP Web Server, support configure parameters by web page.
    11. Support re-connect automatically at Wi-Fi STA mode and TCP Client.
    12. Support set baud rate, data bit, parity check, stop bits, and/or subcontracting time.
    13. Support baud rate (bps) 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 74800, 115200, 230400, 460800, 921600, 1843200, 3686400.
    14. Support AP enable, self-defined SSID/password, self-defined IP and network duration.
    15. Automatically scan the peripheral Wi-Fi hotspot, support STA enable,DHCP, self-defined IP.
    16. Support TCP Server, TCP Client, UDP Server, UDP Client and UDP local broadcast.
    17. Support DNS resolution automatically for the remote sever address.
    18. Support checking the status by AT command.
    19. Provide IO4 to show the Wi-Fi status.
    20. Working temperature : -40°C-125°C.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    Working voltage: 4.5V~6.0V
    Provided pins: STATE, TXD, RXD,EN;
    OTA firmware updateYes
    WiFi module ESP-M2
    Working temperature: -40℃-125℃
    Mounting TypeThrough Hole
    Shipment Weight0.005 kg
    Shipment Dimensions9 × 6 × 2 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation:

    1. Datasheet
    2. Github Repository

    Package Includes:

    1 x DT-06 TTL to WIFI Module.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Product Details
    RBD-1578
    10 Items

    Specific References

    EAN13
    1578
