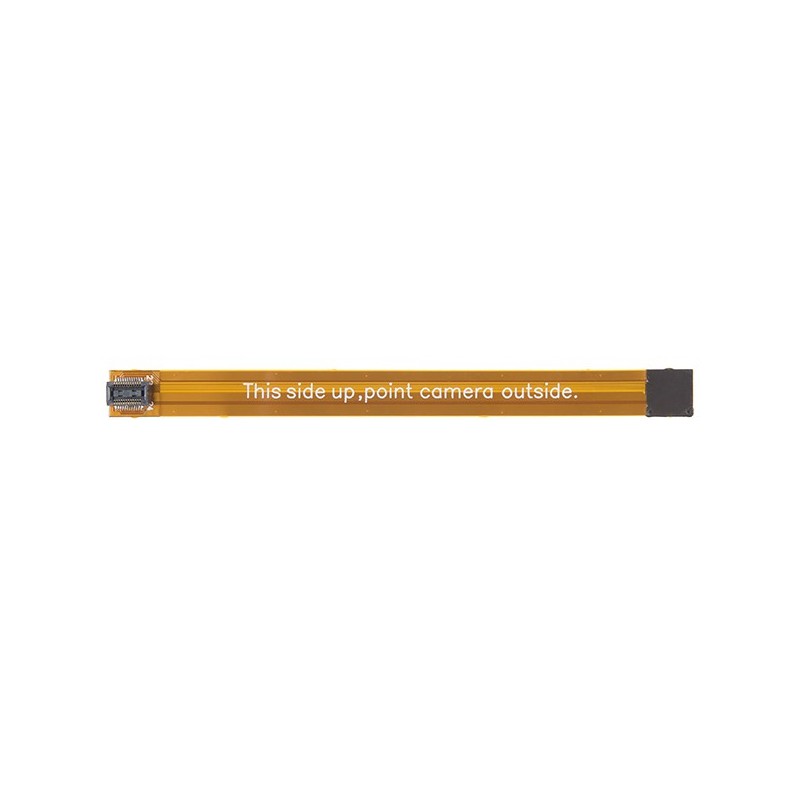

Camera Module - pcDuino V3 (2MP)

Reference RBD-1696

Brand SparkFun Electronics

Camera Module - pcDuino V3 (2MP)
PLL support
Windowing support
MIPI interface support

Description
Product Details

Description

GC2035 is a high quality 2Mega CMOS image sensor, for mobile phone camera applications and digital camera products. GC2035 incorporates a 1616V x 1232H pixel array, on-chip 10-bit ADC, and image signal processor. The on-chip ISP provides a very smooth AE (Auto Exposure) and accurate AWB (Auto White Balance) control. It provides various data formats, such as Bayer RGB, RGB565, YCbCr 4:2:2. It has a commonly used two-wire serial interface for host to control the operation of the whole sensor. Internal master clock can be generated by on-chip Phase Lock Loop(PLL) oscillator. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

This product has been retired and won't be available again if the stock runs out. This page is made available for those looking for datasheets and the simply curious. RoboticsBD

Overview:

This 2M pixel camera module is capable of capturing 1616 x 1232 pixel array video and images and connects directly to your pcDuino V3. Connect the included ribbon cable to the CSI (Camera Serial Interface) port on your pcDuino, boot it up, and you are good to go!
The real strength of this camera module comes from the GC2035 image sensor. The GC2035 is a high quality CMOS image sensor, for mobile phone camera and digital camera applications. The GC2035 incorporates a 1616V x 1232H pixel array, on-chip 10-bit ADC, and image signal processor. It provides various data formats, such as Bayer RGB, RGB565, YCbCr 4:2:2.
Note: This module is only capable of taking pictures and video, not sound.

Applications:

Cellular Phone Cameras
Notebook and desktop PC cameras
PDAs
Toys
Digital still cameras and camcorders
Video telephony and conferencing equipment
Security systems
Industrial and environmental systems

Features:

Standard optical format of 1/5 inch
Various output formats: YCbCr4:2:2, RGB565, Raw Bayer
PLL support
Windowing support
MIPI interface support
Horizontal /Vertical mirror
Image processing module
Package: CSP/wafer

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Optical Format	1/5 inch
Pixel Size	1.75um x 1.75um
Active pixel array	1616 x 1232
ADC resolution	10 bit ADC
Shutter type	Electronic rolling shutter
Max Frame rate	15fps@24Mhz, UXGA~30fps@24Mhz, SVGA
Power Supply	DVDD18: 1.7~1.9V DVDD18: 1.7~1.9V IOVDD: 1.7~3.0V
Power Consumption 180mW(Active)	180mW(Active) <100uA(Standby)
Operating temperature:	-20~70℃
Stable Image temperature	0~50℃
Optimal lens chief ray angle(CRA)	25º（non-linear）
Package type	CSP/wafer
Shipment Weight	0.005 kg
Shipment Dimensions	12 × 8 × 2.5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Datasheet

Package Includes:

1 x Camera Module - pcDuino V3 (2MP)

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details

Reference RBD-1696

In stock 1 Item

Specific References

EAN13: 1696

Comments (0)

Grade

No customer reviews for the moment.

16 other products in the same category:

Reference: RBD-0813

Liquid Suspended Particles Turbidity Sensor Detection Module Kit

(0)

Operating Voltage: 5VDC. Current: 30mA (MAX). Operating temperature: -30 ° C to 80 ° C. Compatible with Arduino, Raspberry Pi, AVR, PIC, etc. Measuring Range: 0 ~ 1000 NTU.

BDT 820

BDT 820 tax incl.

BDT 820 tax excl.

BDT 820 tax incl.

BDT 0 Tax

BDT 820 tax excl.

BDT 0 Tax

BDT 820 tax incl.

In-Stock

In stock: 45

Out-of-Stock

Reference: RBD-3911

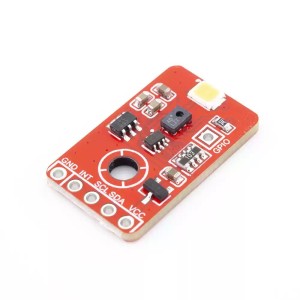

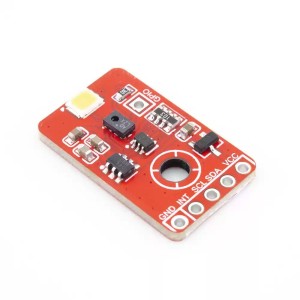

AS7341 11-Channel Multispectral Sensor Module Color & Light Spectrum Detection

(0)

The AS7341 is an advanced 11-channel multispectral color and light sensor, ideal for color analysis, ambient light monitoring, and spectral research.It measures light intensity across multiple wavelengths from 350 nm to 1000 nm, covering visible and near-infrared (NIR) regions, making it suitable for both color sensing and environmental light analysis.

BDT 2,450

BDT 2,450 tax incl.

BDT 2,450 tax excl.

BDT 2,450 tax incl.

BDT 0 Tax

BDT 2,450 tax excl.

BDT 0 Tax

BDT 2,450 tax incl.

Out-of-Stock

In stock: 0

Reference: RBD-3470

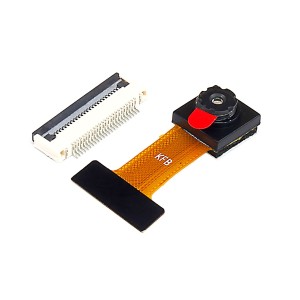

OV7670 Camera Module with Connector – 30W Pixel

(0)

OV7670 Camera Module 30W Pixel with VGA 640×480 resolution Maximum frame rate 30fps at VGA Wide 67° viewing angle for broader image capture Low power consumption: 60mW active at 15fps 1/6" CMOS sensor with high SNR (46dB) Compact design suitable for embedded vision systems

BDT 380

BDT 380 tax incl.

BDT 380 tax excl.

BDT 380 tax incl.

BDT 0 Tax

BDT 380 tax excl.

BDT 0 Tax

BDT 380 tax incl.

In-Stock

In stock: 24

Reference: RBD-1860

KS-RG22 High Precision Electric Eye Color Sensor

(0)

Model KS-RG22 Coaxial reflection type Supply voltage DC10-30V±10%

BDT 4,790

BDT 4,790 tax incl.

BDT 4,790 tax excl.

BDT 4,790 tax incl.

BDT 0 Tax

BDT 4,790 tax excl.

BDT 0 Tax

BDT 4,790 tax incl.

In-Stock

In stock: 5

GM77 Barcode and QR Code Scanning Module Robotics Bangladesh

Reference: RBD-3233

Brand: DFRobot

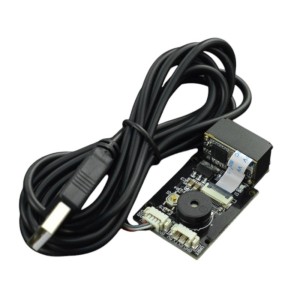

GM77 Barcode and QR Code Scanning Module

(0)

GM77 Barcode & QR Code Scanner Module with 15m/min scan speed. Equipped with 0.3MP CMOS sensor, white LED illumination, and red focus light. Automatically senses and scans codes in low-light or high-density environments. Supports both TTL-232 and USB interfaces, plug-and-play operation. Compatible with Windows, Linux, Android, and Mac systems. Ideal...

BDT 10,950

BDT 10,950 tax incl.

BDT 10,950 tax excl.

BDT 10,950 tax incl.

BDT 0 Tax

BDT 10,950 tax excl.

BDT 0 Tax

BDT 10,950 tax incl.

Last items in stock

In stock: 2

Raspberry Pi Camera Module 3 Robotics Bangladesh

Reference: RBD-2663

Brand: Raspberry Pi Official

Raspberry Pi Camera Module 3

(0)

Equipped with Sony IMX708 12MP back-illuminated CMOS sensor for high-quality stills and video Features Phase Detection Autofocus (PDAF) for rapid and accurate focusing Supports HDR mode up to 3MP output for enhanced detail in high-contrast scenes Compatible with Full HD video recording and multiple frame rates (1080p50, 720p100, 480p120) Fully supported...

BDT 6,880

BDT 6,880 tax incl.

BDT 6,880 tax excl.

BDT 6,880 tax incl.

BDT 0 Tax

BDT 6,880 tax excl.

BDT 0 Tax

BDT 6,880 tax incl.

In-Stock

In stock: 10

Reference: RBD-2348

TCS34725 Color Sensor RGB Module

(0)

TCS34725 RGB Color Sensor Module for precise color measurement Provides digital output for red, green, blue, and bright light sensing Integrated IR blocking filter for accurate color detection High sensitivity and wide dynamic range for versatile applications Adjustable integration time and gain for use in varying light conditions

BDT 480

BDT 480 tax incl.

BDT 480 tax excl.

BDT 480 tax incl.

BDT 0 Tax

BDT 480 tax excl.

BDT 0 Tax

BDT 480 tax incl.

In-Stock

In stock: 16

Reference: RBD-3547

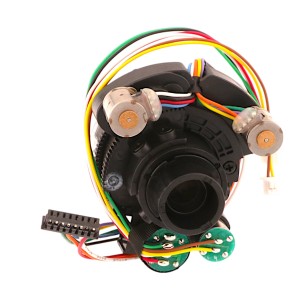

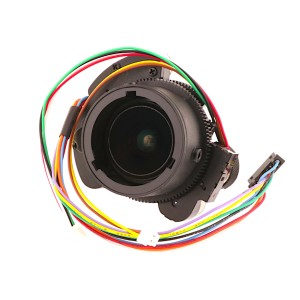

3-9mm Electric Zoom Lens with Auto-Iris and Stepper Motor Drive – F1.4, 1/2.8" Format

(0)

The 3-9mm Electric Zoom Lens with Auto-Iris is a high-performance motorized lens designed for professional imaging and surveillance applications. With a 1/2.8" format and an F1.4 large aperture, it delivers excellent low-light performance and precise image clarity. This lens features motorized zoom and focus control via stepper motors, enabling smooth and...

BDT 690

BDT 690 tax incl.

BDT 690 tax excl.

BDT 690 tax incl.

BDT 0 Tax

BDT 690 tax excl.

BDT 0 Tax

BDT 690 tax incl.

In stock

In stock: 29

Reference: RBD-3018

50mm Telephoto 8MP F1.45 C-Mount Lens - Raspberry Pi Camera

(0)

50mm focal length with 8MP resolution Narrow angle of view for distant subjects Adjustable aperture from F1.4 to F16 Compatible with Raspberry Pi High Quality Camera Includes front and back covers for protection

BDT 6,299

BDT 6,299 tax incl.

BDT 6,299 tax excl.

BDT 6,299 tax incl.

BDT 0 Tax

BDT 6,299 tax excl.

BDT 0 Tax

BDT 6,299 tax incl.

Last items in stock

In stock: 1

Raspberry Pi NoIR Camera V2 8MP Robotics Bangladesh

Reference: RBD-0722

Brand: Raspberry Pi Official

Raspberry Pi NoIR Camera V2 8MP

(0)

8-Megapixel native resolution high-quality Sony IMX219 image sensor Cameras are capable of 3280 x 2464 pixel static images Capture video at 1080p30, 720p60 and 640x480p90 resolutions All software is supported within the latest version of Raspbian Operating System No Infrared filter making it perfect for taking Infrared photographs or photographing objects...

BDT 3,999

BDT 3,999 tax incl.

BDT 3,999 tax excl.

BDT 3,999 tax incl.

BDT 0 Tax

BDT 3,999 tax excl.

BDT 0 Tax

BDT 3,999 tax incl.

In-Stock

In stock: 4

Raspberry Pi High Quality Camera with 6mm Lens Robotics Bangladesh

Reference: RBD-1423

Brand: Raspberry Pi Official

Raspberry Pi High Quality Camera with 6mm Lens

(0)

Sony IMX477R stacked, back-illuminated sensor. Resolution: 12.3 megapixels. Compatible with Raspberry Pi 1/2/3/4 boards Output: RAW12/10/8, COMP8 Back focus: Adjustable (12.5 mm–22.4 mm) Lens standards: C-mount, CS-mount (C-CS adapter included) IR cut filter: Integrated Wide Field of View suitable for CCTV applications Suitable for macro photography...

BDT 16,450

BDT 16,450 tax incl.

BDT 16,450 tax excl.

BDT 16,450 tax incl.

BDT 0 Tax

BDT 16,450 tax excl.

BDT 0 Tax

BDT 16,450 tax incl.

Last items in stock

In stock: 1

Reference: RBD-3778

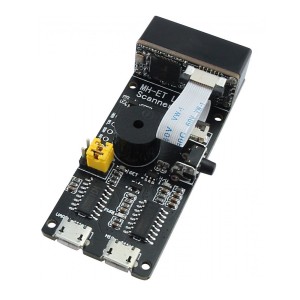

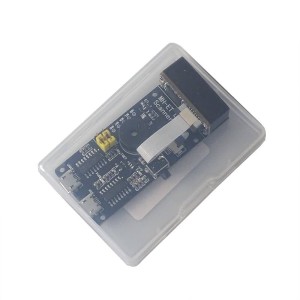

MH-ET LIVE Barcode Scanner V3.0
