The Intel RealSense Depth Camera D435 is a high-performance, wide field-of-view stereo depth camera designed for AI, robotics, automation, and AR/VR applications. Equipped with global shutter sensors, it captures fast-moving objects with exceptional accuracy, even in dynamic or low-light environments. Delivering depth resolutions up to 1280×720 at 90 FPS and a 2MP RGB stream (1920×1080 @30 FPS), the D435 provides superior depth perception for both indoor and outdoor environments. It integrates Intel’s D4 Vision Processor and D430 depth module, offering real-time 3D sensing and precise depth mapping. With built-in on-chip calibration, the camera can self-calibrate in under 15 seconds, ensuring reliable, consistent results without manual adjustment. Compact, lightweight, and easy to mount, the D435 is the ideal choice for developers working on intelligent robotics, depth-based tracking, and environmental mapping. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Stereo depth camera powered by Intel RealSense D430 module and D4 processor.
Global shutter sensors for sharp, accurate imaging of fast-moving subjects.
Wide depth field of view (87°×58°) for enhanced scene coverage.
High depth resolution up to 1280×720 @90 FPS.
Integrated 2MP RGB camera (1920×1080 @30 FPS) for color imaging.
On-chip self-calibration feature for quick setup without external tools.
Cross-platform compatibility with Intel RealSense SDK 2.0.
USB-C 3.1 Gen 1 interface for high-speed data transfer.
Compact and lightweight design (90×25×25mm) with multiple mounting points.
Ideal for robotics, AR/VR, automation, and machine vision systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Robotics navigation and obstacle avoidance.
3D scanning and mapping for SLAM and vision-based localization.
Gesture and motion tracking in AR/VR applications.
Industrial automation and object detection.
AI training and computer vision research.
Autonomous drones and vehicles for real-time depth sensing.
Healthcare and human-tracking systems requiring precise spatial awareness.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Model | Intel RealSense Depth Camera D435 |
| Depth Sensing Technology | Stereoscopic Depth |
| Ideal Depth Range | 0.3m – 3m |
| Minimum Depth Distance | ~28 cm |
| Depth Accuracy | < 2% at 2m |
| Depth Field of View (FOV) | 87° × 58° |
| Depth Resolution | Up to 1280 × 720 |
| Depth Frame Rate | Up to 90 FPS |
| RGB Sensor Resolution | 2 MP (1920 × 1080 @ 30 FPS) |
| RGB Sensor Type | Rolling Shutter |
| RGB Field of View | 69° × 42° |
| Vision Processor | Intel RealSense D4 |
| Depth Module | Intel RealSense D430 |
| Connectivity Interface | USB-C 3.1 Gen 1 |
| Calibration | On-chip self-calibration |
| Mounting | 1× 1/4-20 UNC thread, 2× M3 mounting holes |
| Operating Environment | Indoor and Outdoor |
| Dimensions | 90 × 25 × 25 mm |
| SDK Compatibility | Intel RealSense SDK 2.0 (Windows, Linux, ROS) |
| Country of Origin | China |
| Shipment Weight | 0.180 kg |
| Shipment Dimensions | 11 × 6 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The Intel RealSense D435 is part of the D400 series, offering plug-and-play functionality. With built-in calibration, SDK support, and cross-platform compatibility, it allows developers to easily integrate depth-sensing technology into their applications.
Upgrade your robotics, AI, or 3D vision system with the Intel RealSense Depth Camera D435 and experience next-level depth perception and object recognition.

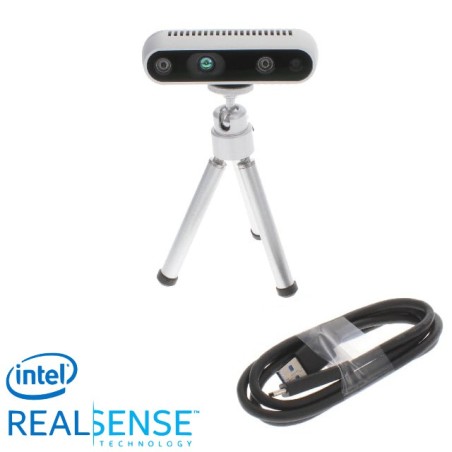

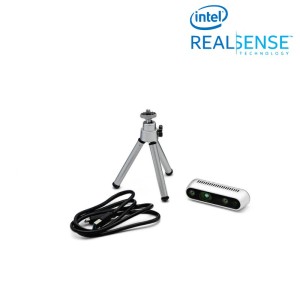

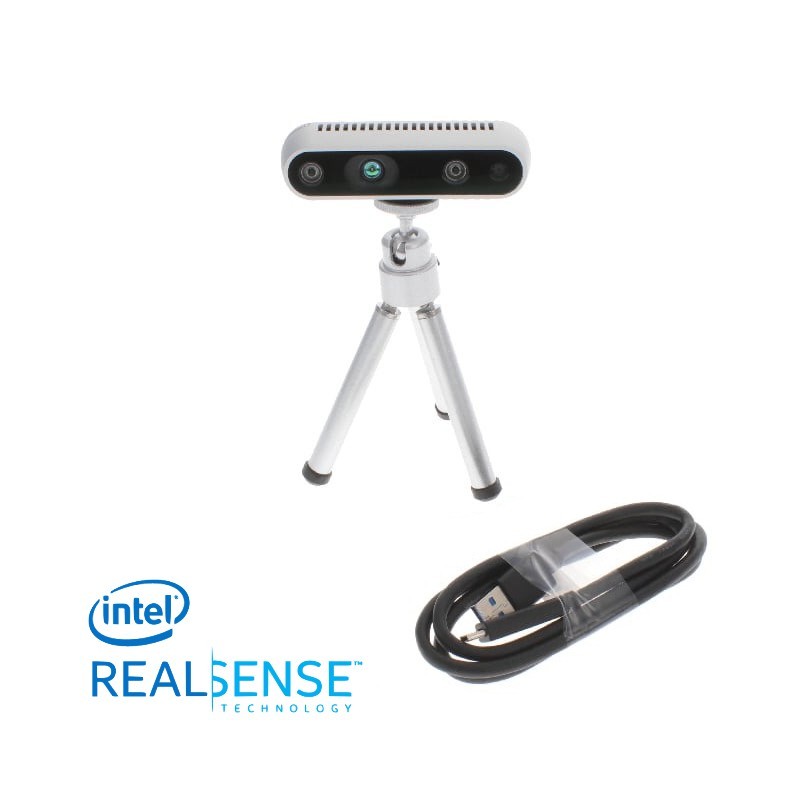

1 x Intel RealSense Depth Camera D435
