The TOF400C Laser Distance Ranging Sensor is a high-precision time-of-flight (ToF) module based on the VL53L1X chip, designed for accurate and reliable distance measurement up to 400 cm. Utilizing ST’s FlightSense™ technology and a SPAD (Single Photon Avalanche Diodes) array, it measures absolute distance regardless of the target’s color or surface finish.
Product Description:
The TOF400C Laser Distance Ranging Sensor is a high-precision time-of-flight (ToF) module based on the VL53L1X chip, designed for accurate and reliable distance measurement up to 400 cm. Utilizing ST’s FlightSense™ technology and a SPAD (Single Photon Avalanche Diodes) array, it measures absolute distance regardless of the target’s color or surface finish.
Operating at an infrared wavelength of 940 nm with advanced optical filtering, it delivers stable performance even under strong ambient light conditions. With a wide 27° field of view, a 50 Hz measurement rate, and 1D gesture detection capability, this sensor is ideal for robotics, automation, and object detection applications.
Key Features:
Long-Range Measurement: Accurate detection from 4 cm to 400 cm.
FlightSense™ ToF Technology: Reliable results regardless of object color or material.
Ambient Light Resistance: Works well in challenging lighting environments.
Gesture Detection: Detects simple 1D gestures for user interaction.
Fast Response: Measurement frequency up to 50 Hz.
Wide Field of View: 27° FOV for broader coverage.
I2C Interface: Easy integration with microcontrollers and development boards.
Compact Design: Includes protective cover and M2 mounting holes.
Technical Specifications:
Chipset: VL53L1X
Measurement Range: 4 – 400 cm
Dead Zone: 0 – 4 cm
Field of View (FOV): 27°
Interface: I2C (default address 0x52, programmable)
Measurement Rate: Up to 50 Hz
Gesture Detection: 1D motion sensing
Interrupt Output: Yes
Operating Voltage: 3 – 5 V
Current Consumption: ~40 mA
Operating Temperature: -20°C to +70°C
Mounting: 2 × M2 screw holes
Wavelength: 940 nm IR
Applications:
Obstacle detection in mobile robots
Object presence detection in industrial automation
Proximity sensing for interactive installations
Gesture-based control interfaces
Level measurement in containers or bins
Package Includes:

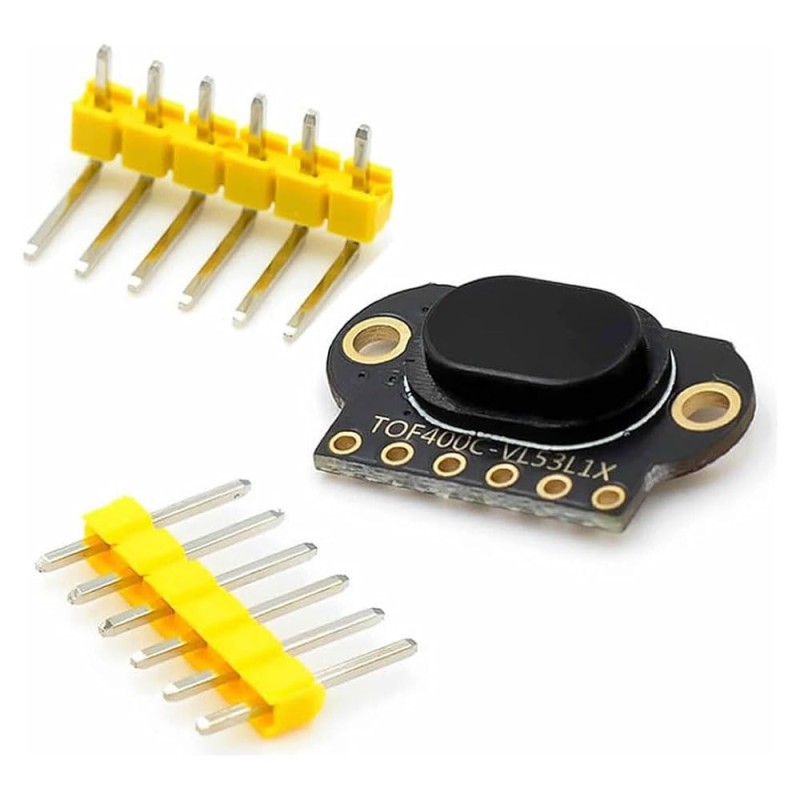

1 × TOF400C VL53L1X Laser Distance Sensor Module
Why Choose the TOF400C VL53L1X Sensor?
With its long range, high precision, fast update rate, and ambient light immunity, the TOF400C offers a reliable solution for distance measurement and gesture detection in robotics, IoT, and automation projects. Its I2C interface and ready-to-use API make integration quick and effortless.
Achieve precise and dependable distance sensing—upgrade your project with the TOF400C VL53L1X today!
