Semiconductor coolers are a form of solid state cooling that incorporates both semiconductor technologies and electronic assembly techniques. One such example is the Thermoelectric Peltier Refrigeration Cooling System DIY Kit.

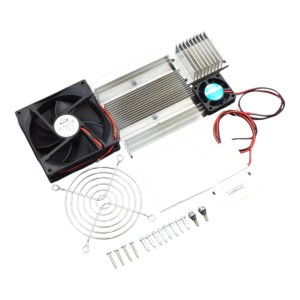

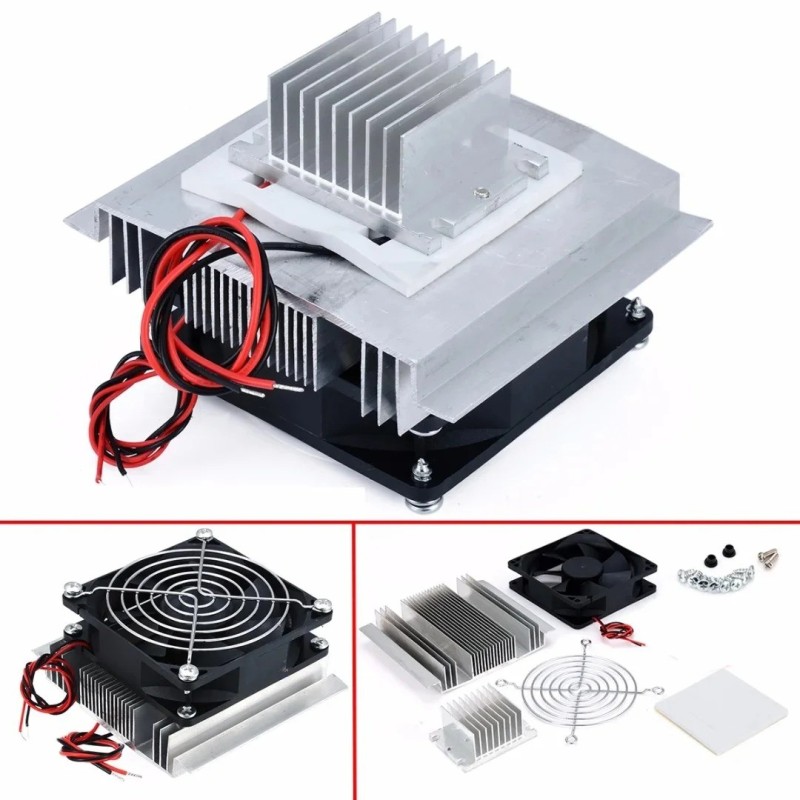

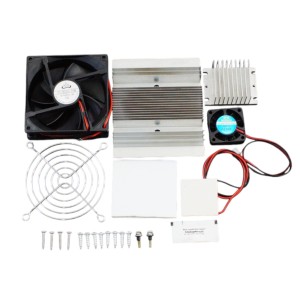

The DIY kit is a semiconductor cooling kit which uses a TEC1-12706 Thermoelectric Cooler 6A Peltier Module. The kit has 2 heat sinks: the bigger one is for the hotter side and the smaller one is for the cooler side. The bigger the heat sink, the greater dissipation of the heat.
The fan, also included in this kit acts as a radiator. This is attached to the bigger heat sink. The TEC1-12706 thermoelectric Peltier module is sandwiched between the two heat sinks. The module will reduce the temperature.
The kit when assembled takes up less space and is ideal for Pet Space air conditioning( dogs house, chicken, etc), small refrigerator. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Note:
- This is an unassembled kit.
- The kit does not include TEC1-12706 Thermoelectric Peltier Module which is available at RoboticsBD
- Please allow a tolerance of 5% on all dimensions as it is done manually.
Features:
- Using GL style of the refrigerator, effectively release the thermal deformation ability of the refrigerator produce at work.
- Small volume, does not occupy space, installation is simple.
- This semiconductor cooler is a form of solid-state cooling that incorporates both semiconductor technologies and electronic assembly techniques.
- It can be used as a Pet Air Conditioner (chicken, little dog, etc.) or a little fridge.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Electronics Cooling: The Thermoelectric Peltier Refrigeration Cooling System DIY Kit can be used to cool electronic components and prevent them from overheating. This is especially useful for high-performance computers, gaming consoles, or other devices that generate a lot of heat.
Medical and Laboratory Equipment: The Thermoelectric Peltier Refrigeration Cooling System DIY Kit can be used to regulate the temperature of medical and laboratory equipment, such as centrifuges or microscopes. Precise temperature control is essential for many types of research and diagnostic procedures.
Food and Beverage Service: The Thermoelectric Peltier Refrigeration Cooling System DIY Kit can be used to keep food and beverages cold or warm, such as in a mini fridge or portable cooler. This is useful for picnics, camping, or outdoor events.
Automotive Applications: The Thermoelectric Peltier Refrigeration Cooling System DIY Kit can be used to cool or heat car seats, beverage holders, or other small spaces in a vehicle. This can make driving more comfortable in extreme temperatures or climates.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Voltage(V) | 12 |
| Operating Current (A) | 6 |
| Material | Metal and plastic |
| Dimensions in mm (LxWxH) | Depend upon Stock |
| Weight (gm) | 390 |
| Shipment Weight | 0.465 kg |
| Shipment Dimensions | 12 × 8 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

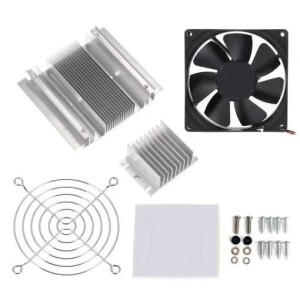

Package Includes:
1 x Cooling Fan
1 x Fan Gauze
1 x Guide cold plate
1 x Radiator
1 x Thermal insulation gasket
1 x Pack of Screws
