The Hi-Link HLK-LD6001C 60GHz Millimeter Wave Radar Passenger Flow Statistics Sensor Module is an advanced FMCW-based radar designed for accurate people counting and movement detection in a wide range of environments. Unlike traditional vision or infrared sensors, this module offers non-intrusive and privacy-safe operation, functioning flawlessly in any lighting condition. With a detection range of 0.5–8 meters and a coverage angle of ±60°, it can effectively monitor entrances, corridors, and public spaces. Consuming only 0.3W average power and featuring a fast processing cycle of under 30ms, it ensures real-time responsiveness. Its compact 29.36mm × 28mm design allows easy integration into embedded, commercial, or IoT systems. Perfect for smart buildings, retail analytics, and automation projects, the HLK-LD6001C brings professional-grade sensing performance to modern intelligent environments. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
High-Precision FMCW Radar: Ensures accurate detection and tracking within 0.5–8m range.
Privacy-Safe Sensing: Non-visual detection eliminates privacy concerns in sensitive areas.
All-Day Operation: Works reliably in both bright and dark conditions.
Wide Coverage: ±60° detection angle with effective 3.5m ground radius at 2.7m height.
Low Power, High Efficiency: Average power consumption only 0.3W, peak 1.7W.
Fast Response Time: Processes data in less than 30ms for real-time monitoring.
Compact Design: 29.36mm × 28mm module fits easily into embedded systems.
Flexible Communication: TTL serial port for easy microcontroller or host integration.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Smart Building Automation: Real-time monitoring of entrances and hallways.
Retail Analytics: Customer footfall tracking and in-store traffic insights.
Security Systems: Privacy-friendly detection for access-controlled areas.
Transportation Hubs: Crowd monitoring in airports, subways, and stations.
Healthcare Facilities: Tracking patient and staff flow for operational efficiency.
IoT and Smart Devices: Integration with intelligent occupancy and energy systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Product Type | 60GHz Millimeter Wave Radar Sensor Module |
| Model | HLK-LD6001C |
| Technology | FMCW (Frequency Modulated Continuous Wave) |
| Frequency Range | 60–64GHz |
| Detection Range | 0.5–8 meters |
| Coverage Angle | ±60° |
| Installation Height | 2.7m (3.5m ground projection radius) |
| Operating Voltage | 3.3V DC |
| Average Power Consumption | 0.3W |
| Peak Power Consumption | 1.7W |
| Communication Interface | TTL Serial Port |
| Processing Cycle | <30ms |
| Installation Type | Overhead/Top-mounted |
| Module Dimensions (mm) | 29.36 × 28 |
| Privacy Protection | Non-visual sensing |
| Recommended Use | Entrance/Exit People Counting |
| Operating Environment | Indoor/Outdoor (all light conditions) |
| Application Areas | Smart Buildings, Retail, IoT Systems |
| Shipment Weight | 0.0042 kg |
| Shipment Dimensions (cm) | 3 × 3 × 2 |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
How to Use:
Assembly:
- Follow the provided PDF manual to assemble the chassis, tracks, and motors.
- Secure all components, ensuring proper alignment for smooth operation.
Electronics Integration:
- Connect the motors to a motor driver or microcontroller, such as Arduino or Raspberry Pi, for control.
- Add sensors, mechanical arms, or other components as needed for your project.
Power Supply:
- Use a DC power supply (6-12V) to power the motors. Ensure the voltage matches your application requirements.
Programming and Control:
- Program your microcontroller to control the chassis, motors, and additional components like mechanical arms or sensors.
Experiment and Learn:
- Test and refine your robot's movements and functions through hands-on experimentation.
Package Includes:

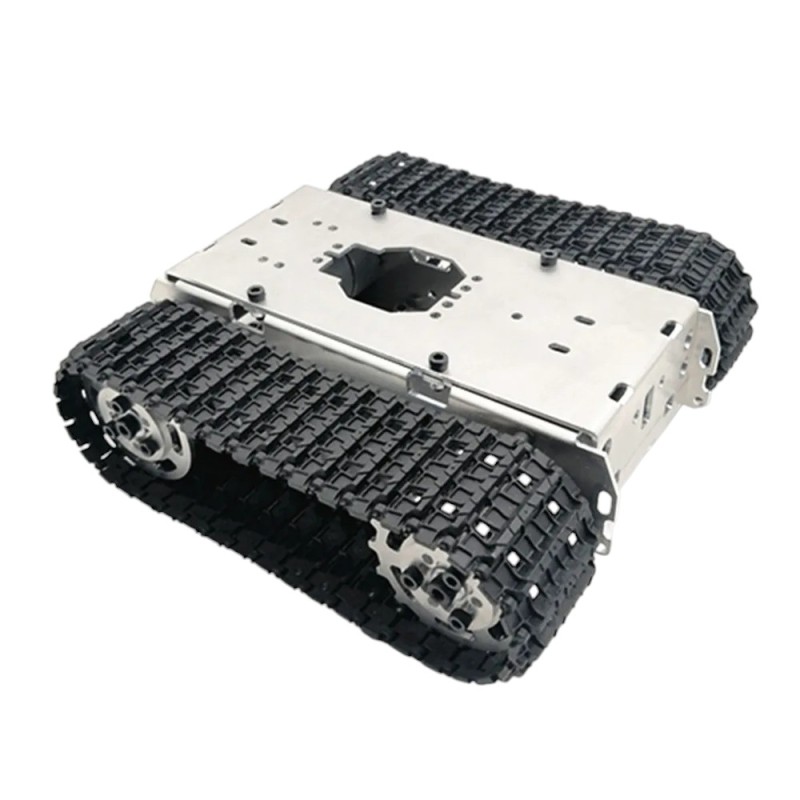

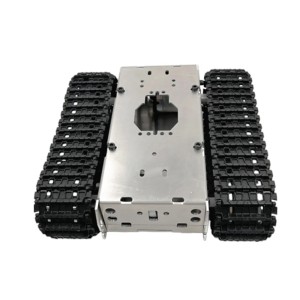

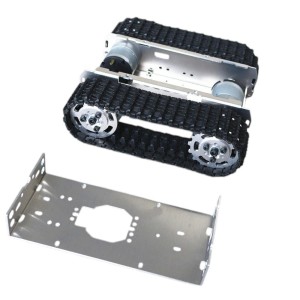

1 x Metal Robot Tracked Tank Chassis Car Kit for RC Robot Arm & DIY STEM Projects
