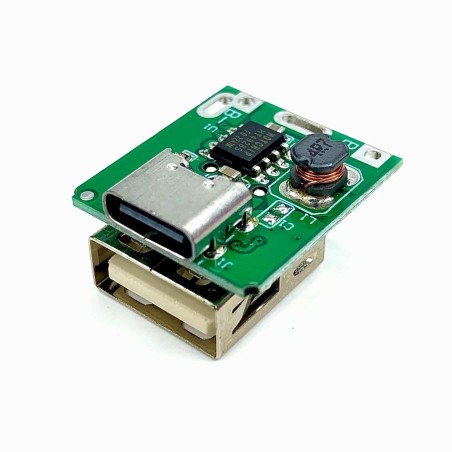

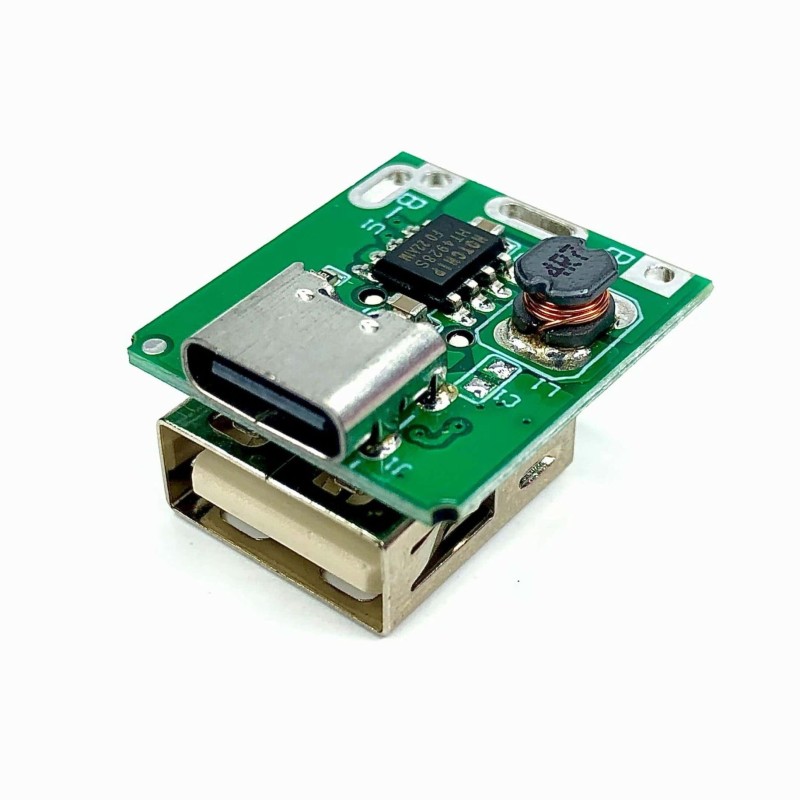

Type-C USB 5V 1A Step-Up Boost Converter Power Bank Charging Module

Reference RBD-3172

Type-C USB 5V 1A Boost Converter for power bank and portable charging applications.
Supports 3.7V–5.5V input and boosts to a stable 5V output at 1A current.
Integrated charging/discharging management with overcharge, over-discharge, and overcurrent protection.
LED indicators for real-time charging and discharging status.
Supports up to four 18650 lithium-ion batteries in parallel for extended capacity.
Ideal for DIY power banks, mobile charging, and portable USB-powered projects.

Description
Product Details

Description

The Type-C USB 5V 1A Step-Up Boost Converter Power Bank Charging Module is a compact and efficient solution for building custom portable charging systems. Designed for lithium-ion batteries, it intelligently manages both charging and discharging processes while offering multiple safety protections such as overcharge, over-discharge, and overcurrent protection. The module supports up to four 18650 batteries in parallel, delivering a consistent 5V output suitable for mobile phones, tablets, and other USB-powered devices. With built-in LED indicators showing charge, discharge, and full-charge states, this module provides a user-friendly and reliable design for DIY enthusiasts. It’s compatible with TP4056, XL6009, and LM2596-based circuits, making it versatile for robotics, flashlight, or wireless charging applications. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Stable Step-Up Conversion: Boosts input voltage (3.7V–5.5V) to 5V for USB-powered devices.
High Efficiency: Provides 1A output current with minimal voltage loss.
Comprehensive Protection: Includes overcharge, over-discharge, overcurrent, and thermal protection.
LED Status Indicators: Red (charging), red steady (full), blue (discharging).
Battery Support: Works with up to four 18650 lithium-ion batteries connected in parallel.
Type-C USB Input: Enables universal compatibility with modern charging standards.
Compact and Portable: Small design ideal for handheld or embedded devices.
DIY Friendly: Easily integrates into custom power banks and mobile power projects.
Smart Charging Management: Supports trickle mode and zero-voltage charging.
Reliable Build: Ensures safety and long-term performance with integrated circuit protection.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

DIY Power Banks: Build your own rechargeable battery packs.
Mobile Charging: Power smartphones, tablets, and portable USB devices.
Robotics and IoT Devices: Suitable for battery-powered embedded projects.
Portable Lighting: Ideal for bike lights, torches, or emergency lamps.
Educational and DIY Electronics: Perfect for learning power management circuits.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Input Voltage	3.7V–5.5V (Type-C USB input)
Output Voltage	5V
Output Current	1A
Battery Type	Lithium-ion (18650)
Battery Capacity	Supports up to 4 cells in parallel
Charging Management	Intelligent charge/discharge control
Protection Features	Overcharge, over-discharge, overcurrent, overtemperature
LED Indicators	Red (charging), red steady (full), blue (discharging)
Supported Modules	TP4056, TPA4056, LM2596, XL6009
Dimensions	2 × 2 × 2 cm
Applications	Power bank, USB charger, DIY electronics
Shipment Weight	0.0034 kg
Shipment Dimensions	2 × 2 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x Type-C USB 5V 1A Step-Up Boost Converter Power Bank Charging Module
