    YZC-161B 8KG Half Bridge Weight Scale Sensor Robotics Bangladesh
    • YZC-161B 8KG Half Bridge Weight Scale Sensor Robotics Bangladesh

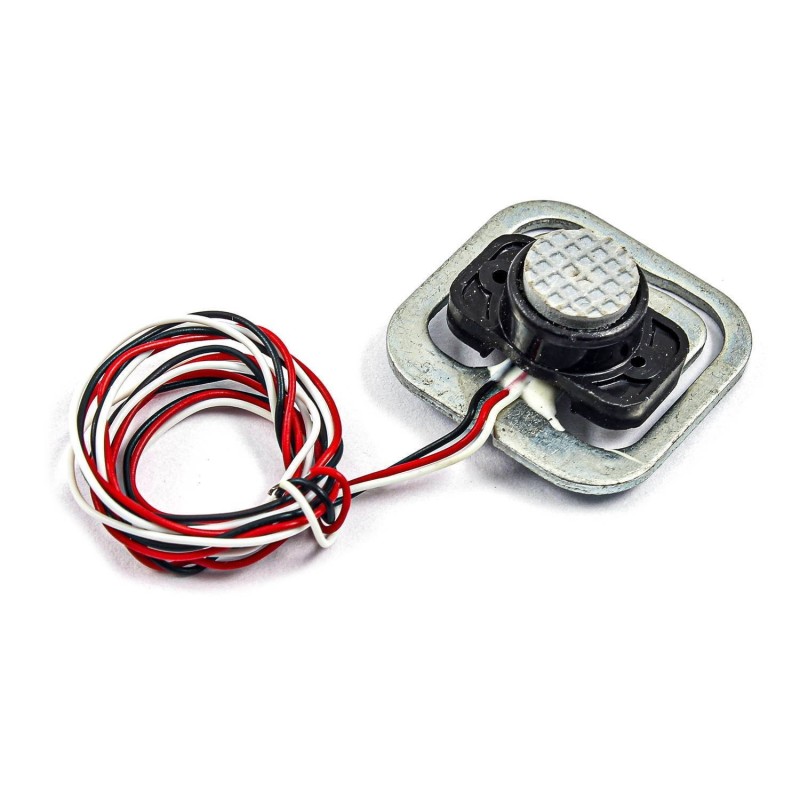

    YZC-161B 8KG Half Bridge Weight Scale Sensor

    RBD-3477

    • YZC-161B 8KG Load Cell Sensor for precise weight measurement
    • Half-bridge strain gauge design with analog mV output
    • Durable alloy steel construction with IP65 protection
    • High accuracy with low hysteresis and excellent repeatability
    • Recommended 5V excitation (Max 8V DC)
    • Ideal for digital scales, HX711 modules, and DIY projects
    BDT 350
    BDT 350 BDT 350 BDT 350 BDT 350
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 350 Tax excluded
    BDT 350 Tax included
    BDT 0 Tax
    BDT 350 Tax excluded
    BDT 0 Tax
    BDT 350 Tax included
    Quantity
    In-Stock
    15 Items

    4 people have purchased this item
    15 items in stock
    Description

    The YZC-161B 8KG Load Cell Sensor is a compact and high-precision half-bridge weight sensor designed for accurate force and weight measurement up to 8 kilograms. Built from strong alloy steel, this load cell ensures durability and long-term stability even in demanding environments. It uses a strain gauge mechanism that converts mechanical deformation into a small analog voltage signal (mV/V), which can be amplified using modules like HX711 or connected to a high-resolution ADC system. With excellent linearity, low hysteresis, and strong repeatability performance, this sensor delivers consistent readings over time. Its IP65 protection rating provides resistance against dust and moisture, making it suitable for industrial, laboratory, and embedded applications.Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. High Precision Measurement – Designed with low nonlinearity and minimal hysteresis for accurate readings.

    2. 8KG Rated Capacity – Perfect for small to medium weighing applications.

    3. Half-Bridge Strain Gauge Output – Provides stable analog output compatible with HX711 and other ADC modules.

    4. Durable Alloy Steel Body – Ensures long-term mechanical strength and reliability.

    5. IP65 Protection – Resistant to dust and light moisture for safe operation in various environments.

    6. Compact Form Factor – Ideal for space-constrained embedded and smart scale projects.

    7. Low Temperature Drift – Maintains stable performance across wide temperature ranges.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Applications:

    1. Electronic Weighing Scales – Build compact digital scales for home or industrial use.

    2. Industrial Weight Monitoring – Integrate into automation systems for force measurement.

    3. Robotics Force Detection – Detect load and pressure in robotic arms or grippers.

    4. Smart Kitchen Scales – Design intelligent food weighing solutions.

    5. Laboratory Equipment – Use in precision measurement setups.

    6. DIY Embedded Projects – Interface with microcontrollers for custom measurement systems.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specifications
    Product NameYZC-161B 8KG Half Bridge Weight Scale Sensor
    Rated Load8Kg
    Output TypeAnalog (mV/V)
    Rated Output1.0 ± 0.1 mV/V
    Nonlinearity0.08% F.S
    Hysteresis0.1% F.S
    Repeatability0.05% F.S
    Zero Balance±0.1000 mV/V
    Input Impedance1000 ± 20% Ω
    Output Impedance1000 ± 10% Ω
    Insulation Resistance> 2000 MΩ
    Safe Overload120% F.S
    Ultimate Overload150% F.S
    Recommended Voltage5V DC
    Maximum Voltage8V DC
    Protection RatingIP65
    Operating Temperature-20°C to +65°C
    Dimensions26mm × 26mm × 17mm
    Shipment Weight0.006 kg

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Package Includes:

    1 x YZC-161B 8KG Half Bridge Weight Scale Sensor
