Product Description:

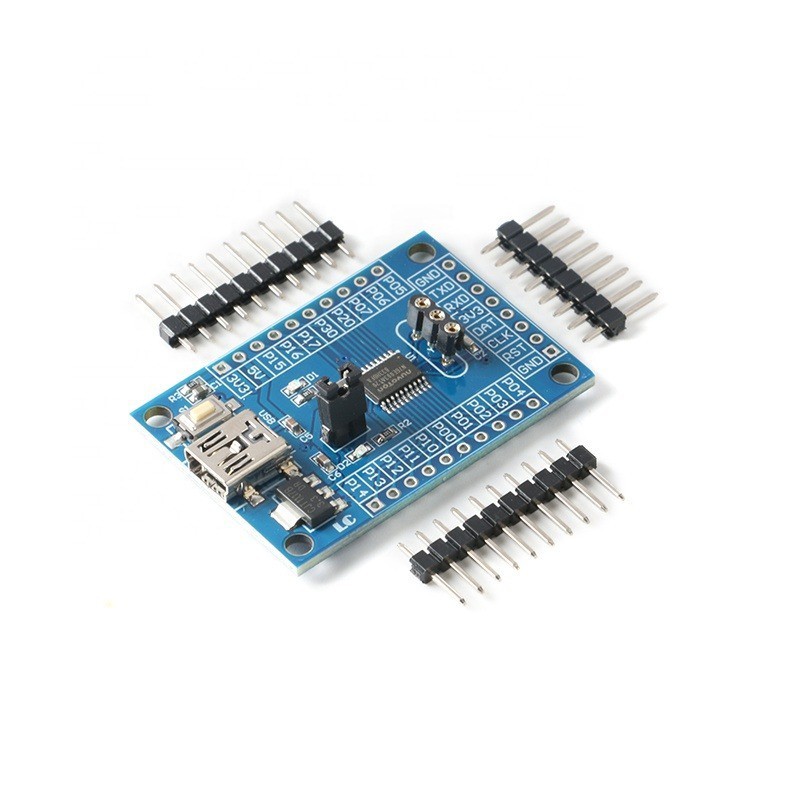

The Nuvoton N76E003AT20 Development Board is a compact, high-performance 8051-core microcontroller board designed for embedded systems, prototyping, and learning. Powered by a 1T 8051 processor, it offers 18KB Flash ROM, configurable Data Flash, and 1KB SRAM, all in a small TSSOP20 package. With wide operating voltage support (2.4V – 5.5V), industrial-grade temperature tolerance (-40°C to 105°C), and robust ESD/EFT protection, this board is built for reliable operation in demanding applications.
Equipped with two UARTs, SPI, I²C, six-channel PWM, and eight-channel 12-bit ADC, the N76E003 delivers rich peripherals for diverse project requirements. Onboard components include a MINI USB power interface, AMS1117-3.3V regulator, reset button, programmable LED, and external crystal oscillator interface. All I/O pins are broken out to 2.54mm headers for easy prototyping.
Key Features:
Core: 1T 8051 processor for faster instruction execution
Clock: High-precision 16MHz internal RC oscillator (<±2% full range) & 10kHz low-speed RC
Memory: 18KB Flash ROM, 1KB SRAM, configurable Data Flash
Peripherals:
2 × UART (up to 115200 bps)
1 × SPI (up to 8 Mbps)
1 × I²C (up to 400 kHz)
6 × PWM channels (16-bit) with programmable dead-zone generator
8 × 12-bit ADC channels (up to 500 kSPS)
Brown-out detector, wake-up function
I/O: 17 + 1 input pins via 2.54mm headers
Power Supply: MINI USB (5V) or external 5V/3.3V
Dimensions: 43 × 29.8 mm
Protection: ±8kV ESD (HBM), ±4kV EFT immunity
Operating Temperature: -40°C to 105°C
Applications:
Access control systems
Smart home devices
Industrial control
Thermostats and metering equipment
Bluetooth speaker controllers
Battery charging systems
Educational microcontroller training
Package Includes:
Why Choose This Development Board?
This Nuvoton-based development board delivers a perfect balance of performance, rich interfaces, and durability in a compact design. Whether for learning 8051 programming or building robust embedded solutions, it offers exceptional flexibility and reliability at a competitive price.
