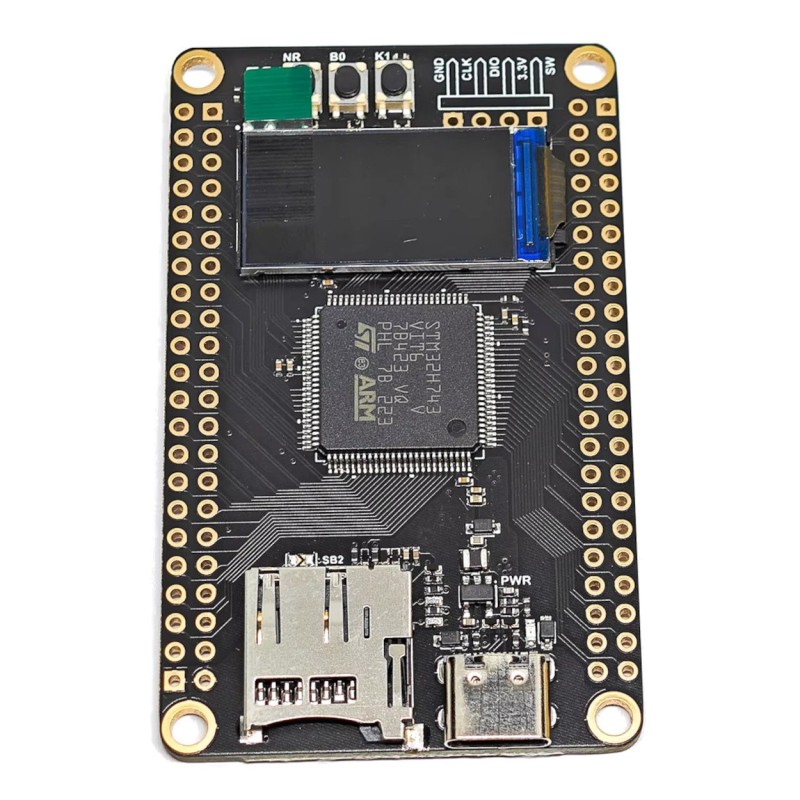

The WeAct Studio STM32H743VIT6 Development Core Board is based on the high-performance Arm® Cortex®-M7 32-bit RISC core operating at up to 480 MHz. With advanced DSP instructions, double-precision FPU, and an integrated memory protection unit (MPU), this board is designed for developers who need a reliable and powerful platform for rapid prototyping, evaluation, and embedded applications.
It comes equipped with 2 MB Flash memory, 1 MB RAM, and a 0.96-inch SPI TFT LCD for display, making it an excellent choice for projects involving GUI graphics, embedded imaging, or advanced control systems.
Features
32-bit Arm® Cortex®-M7 core with double-precision FPU, up to 480 MHz
2 MB Flash memory and 1 MB RAM
0.96-inch TFT LCD (ST7735 SPI display driver) onboard
USB Type-C for power and programming
Onboard SWD header for debugging
SD Card Connector using SDIO Peripheral
Supports SWD & JTAG debugging interfaces
4-Kbyte embedded trace buffer
Up to 35 communication peripherals
Low power consumption
Applications
Advanced image and signal processing
GUI and graphical display projects
Sensor interfacing and IoT projects
DIY embedded applications
Ideal for learning and prototyping with STM32H7 series
Specifications
Product: STM32 Development Board
Microcontroller: STM32H743VIT6
Core Frequency: 480 MHz (Cortex-M7 core)
Package: LQFP100
Power Supply: 1.5V and 2.8V
RAM: 1 MB
Flash Memory: 2 MB
Display: Onboard 0.96" TFT LCD (SPI, ST7735 driver)
Clock Management:
Internal: 64 MHz HSI, 48 MHz HSI48, 4 MHz CSI, 32 kHz LSI
External: 4–48 MHz HSE, 32.768 kHz LSE
Graphics Support:
USB Interface: USB Type-C
Package Includes
