Product Description

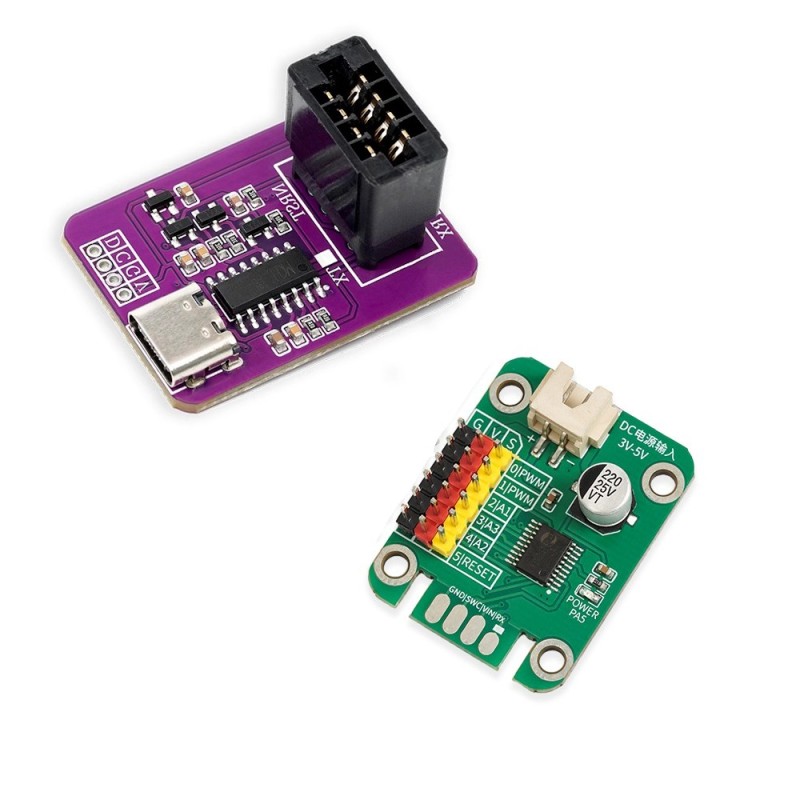

The Air001 Development Board (ATR-13 version) paired with the Air001 Downloader is a complete starter solution for learning, prototyping, and building embedded applications. Based on the powerful ARM® Cortex®-M0+ 32-bit core, the ATR-13 board integrates essential peripherals such as ADC, USART, SPI, I²C, timers, and DMA while providing an easy-to-use pin header layout and onboard power management. The included Air001 Downloader ensures seamless code uploading and debugging via the Arduino IDE or LuatOS environment.
This combo package offers everything you need to get started quickly — from powering and programming the Air001 to deploying real projects in robotics, IoT, and sensor-driven applications.
Key Features

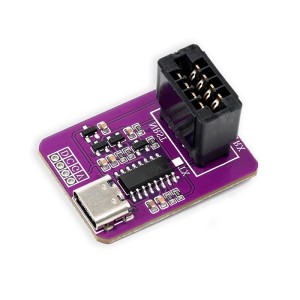

Complete Package: Includes both the Air001 Downloader (USB-C programmer) and Air001 ATR-13 Development Board
Powerful Core: ARM® Cortex®-M0+ running up to 48 MHz
Memory: 32 KB Flash, 4 KB RAM
Peripheral Support: 9 timers, 12-bit ADC (9 channels), 2 USART, 2 SPI, 1 I²C, 2 comparators, 3-channel DMA
Power Input: Wide supply range (1.7V–5.5V), onboard DC input support (3V–5V)
Easy Prototyping: Clearly labeled pins (PWM, I/O, RESET, VCC, GND) with convenient header layout
Low Power: Standby current as low as 2 μA
Arduino IDE Compatible: Supports programming via additional board manager URL
LuatOS Support for scripting and advanced IoT development

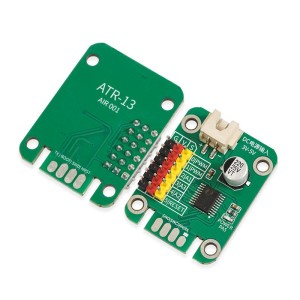

Technical Specifications (ATR-13 Board)
Core: ARM® Cortex®-M0+ 32-bit
Clock Speed: Up to 48 MHz
Memory: 32 KB Flash, 4 KB RAM
Voltage Supply: 1.7V–5.5V, supports USB or battery input (DC input 3V–5V)
Oscillator: Internal RC oscillators (4/8/16/22.12/24 MHz)
ADC: 12-bit, 9 input channels
Timers: 9 total
Communication: 2 × USART, 2 × SPI, 1 × I²C
DMA: 3 channels for efficient data transfer
Standby Power Consumption: ~2 μA
Board Size: ~41 × 32 mm (larger than mini version)
Applications
IoT and wireless sensor nodes
Robotics and automation control
Low-power embedded systems
Education, prototyping, and learning ARM microcontrollers
DIY electronics projects requiring reliable, low-cost MCUs
Package Includes
Why Choose This Combo?
This bundle provides everything you need to start coding and testing Air001 projects immediately. The ATR-13 board offers flexibility and a robust set of I/O options, while the downloader guarantees easy programming with the Arduino IDE. Together, they form a cost-effective and developer-friendly platform for embedded system learning and prototyping.
Start building smarter, faster, and more efficiently — get the Air001 ATR-13 Development Board + Downloader combo today!
