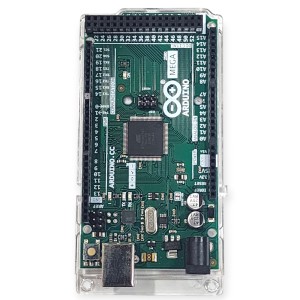

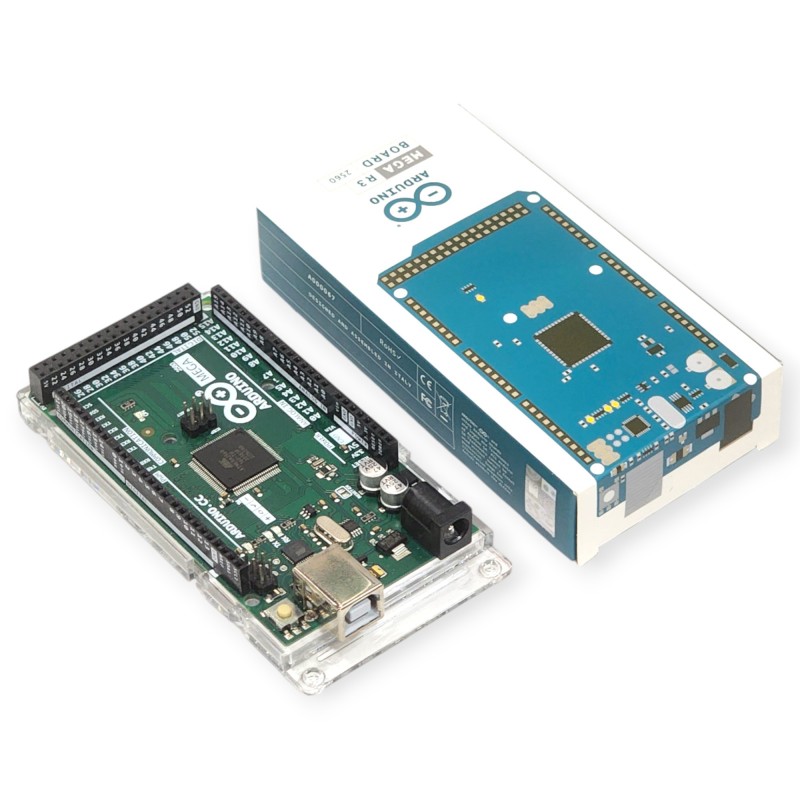

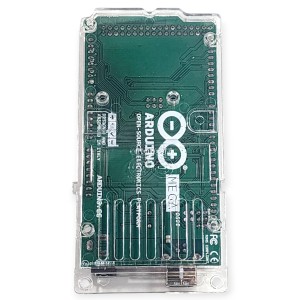

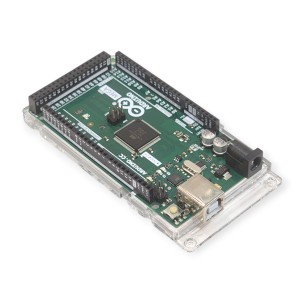

Arduino Mega 2650 R3 is a microcontroller board based on the ATmega2650 chip. It is one of the boards in the Arduino family and has 54 digital input/output pins, 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, and a power jack. It can be used for various DIY electronics and IoT projects.
Ideal for project work and often used in schools, teaching, motor control, robotics, and similar applications; the Arduino platform allows for rapid application development using either Java (cross-platform) or Processing (a C derivative used to write sketches using Arduino IDE downloadable from Arduino.cc website.) Featured by RoboticsBD.
Input voltage should be limited to 6 ~ 12V, but if the voltage supplied is less than 6V, I / O port may not be supplied to a voltage of 5V, and therefore readings may become unstable. If the voltage is greater than 12V, the regulator device may overheat causing damage to the control board. It is therefore recommended that you supply between 6.5 and 12V, utilizing typical power supplies of 7.5V or 9V. Featured by RoboticsBD.
The Mega 2560 ATmega2560-16AU Board plus USB Cable compatible with Arduino is fully compatible with the Arduino software and has complete hardware compatibility with the Arduino Shield high-performance processor and enough memory to handle even complex solutions. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD Robotics
Application :
Robotics: Arduino Mega 2650 R3 can be used to control the movements and actions of robots and other automated machines.
Home Automation: It can be used to control and automate various household appliances, lights, and other electronic devices.
Internet of Things (IoT) Devices: It can be used to build and control IoT devices such as smart home sensors and controllers, weather stations, and smart energy systems.
Artistic Installations: It can be used in interactive art installations, musical instruments, and other creative projects that involve electronics.
Prototyping and Product Development: Arduino Mega 2650 R3 is often used as a development platform for prototyping and testing new ideas and designs, making it an ideal choice for inventors, engineers, and entrepreneurs.
Features :
- Large number of digital I/O pins
- Multiple hardware serial ports
- 16 analog inputs
- A USB connection for programming and power
- Real-time Counter with Separate Oscillator
- Programmable Watchdog Timer with Separate On-chip Oscillator
- On-chip Analog Comparator
- Interrupt and Wake-up on Pin Charge
- Power-on Reset and Programmable Brown-out Detection
- Internal Calibrated Oscillator
- External and Internal Interrupt Sources
- Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and Extended Standby
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Analog I/O Pins | 16 |
| Architecture | AVR |
| Clock Speed | 16 MHz |
| Color | Blue |
| Digital I/O Pins | 54 digital input / output terminals (14 of which have programmable PWM outputs) |
| Flash Memory | 256 KB |
| Country of Origin/Manufacture | China |
| Microcontroller | ATmega2560 |
| Operating Voltage (VDC) | 6 ~ 12 |
| PWM Output Pins | 14 |
| Weight (gm) | 35 |
| Dimensions (mm) LxWxH | 110 x 53 x 15 mm. |
| Shipment Weight | 0.05 kg |
| Shipment Dimensions | 5 × 3 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Datasheet
Power Supply: Ensure that the power supply used with the Arduino Mega 2650 R3 is within the recommended voltage and current limits to avoid damaging the board.
Electrostatic Discharge (ESD) Protection: Take precautions to avoid electrostatic discharge, such as using an anti-static wrist strap, when handling the board to avoid damaging the electronics.
Input/Output Pin Limits: Ensure that the input and output pins are not overdriven, as this can cause damage to the board and connected devices.
Connecting Devices: When connecting external devices to the board, ensure that the voltage and current levels are within the recommended limits, and that the wiring and connections are secure.
Software: Always use the latest version of the Arduino Integrated Development Environment (IDE) and libraries to avoid compatibility issues, and ensure that the code uploaded to the board does not cause damage or data corruption.
Package Includes :
1 x Arduino Mega 2560 Board
