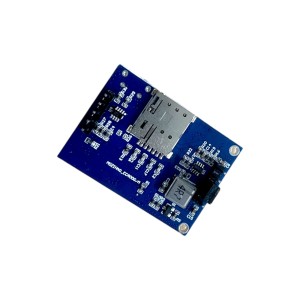

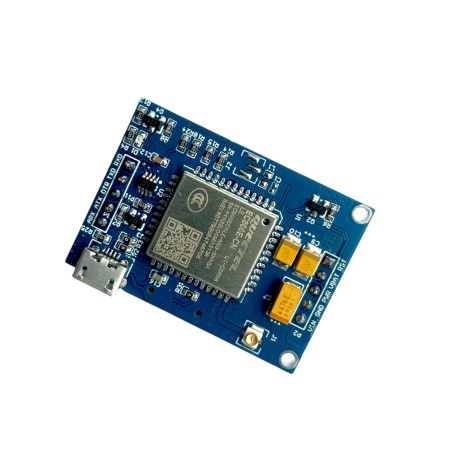

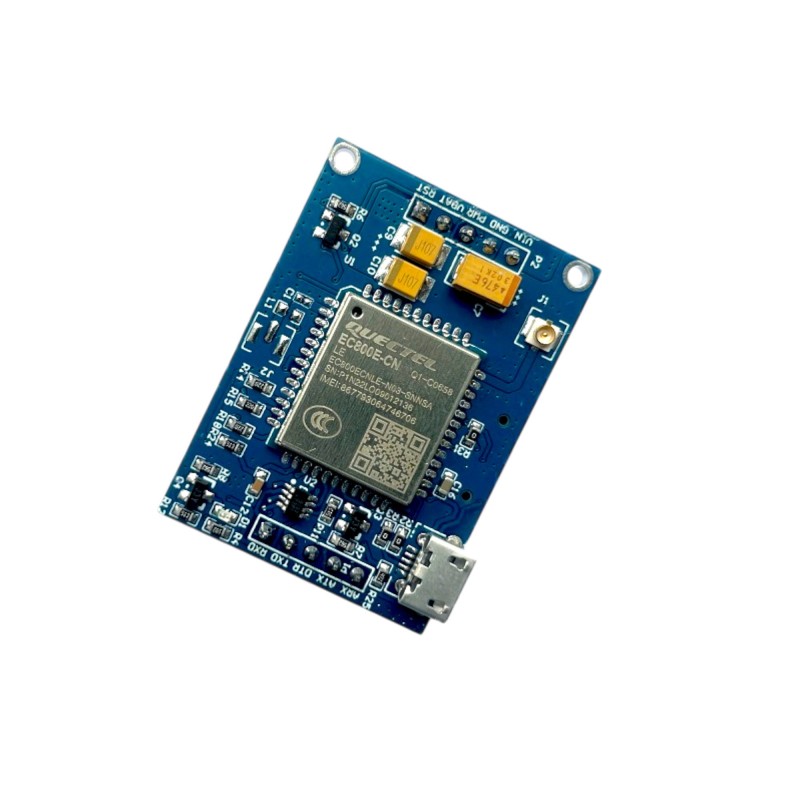

Quectel EC800M-CN LTE 4G IoT CAT1 Module

The Quectel EC800M-CN is a compact and powerful LTE Cat 1 bis wireless communication module designed specifically for M2M and IoT applications across the European market. With maximum data rates of 10Mbps downlink and 5Mbps uplink, this ultra-compact module offers reliable, efficient, and cost-effective connectivity, ideal for smart terminals and compact IoT devices.

Built with a durable LGA form factor measuring only 17.7mm × 15.8mm × 2.4mm, the EC800M-CN is engineered for excellent mechanical strength, improved heat dissipation, and superior performance even in harsh environments.

Offering a rich set of internet protocols, remote DFOTA capabilities, and wide compatibility with multiple operating systems, the EC800M-CN is the perfect choice for IoT applications such as smart POS systems, industrial PDAs, and smart safety equipment.

Key Features:

• LTE Cat 1 bis module optimized for M2M and IoT applications

• Compact size: 17.7mm × 15.8mm × 2.4mm

• High data rates: Up to 10Mbps (download) / 5Mbps (upload)

• Remote DFOTA (Firmware Update Over-the-Air): Simplifies device maintenance

• Extended operating temperature range: -40°C to +85°C

• Ultra-low power consumption: Ideal for battery-operated devices

• Durable construction: Laser-engraved surface for improved heat dissipation and ruggedness

• Multiple OS support: USB drivers available for Windows 8.1/10/11, Linux, and Android

Technical Specifications:

• Module Type: EC800M-CN

• Wireless Technology: LTE Cat 1 bis

• Form Factor: LGA

• Dimensions: 17.7mm × 15.8mm × 2.4mm

• Max Data Rates:

  • Downlink: 10Mbps

  • Uplink: 5Mbps

• Operating Temperature: -40°C to +85°C

• Interface Support: USB, UART, SIM, GPIOs

• Power Supply: Typical IoT device voltage ranges

• Regulatory Compliance: Designed for European network standards

How to Use:

1. Integrate the module onto your IoT device or PCB using the LGA interface.

2. Configure communication protocols and operating parameters via AT commands.

3. Connect to LTE networks

4. Perform firmware updates remotely using DFOTA for easy maintenance.

Applications:

• Smart POS and payment terminals

• Industrial handheld devices (PDAs)

• Remote monitoring systems

• Smart security and safety devices

• Data card and IoT gateway solutions

Package Includes:

• 1 x Quectel EC800M-CN-EU 4G IoT CAT1 Module

Why Choose the Quectel EC800M-CN-EU Module?

• Compact and powerful connectivity for space-constrained designs

• Fast and reliable LTE Cat 1 bis performance

• Simplified maintenance through DFOTA support

• Robust build quality ensures long-term reliability in tough environments

Bring reliable 4G connectivity to your IoT devices with the Quectel EC800M-CN LTE 4G IoT CAT1 Module.
Order now and elevate your M2M and IoT solutions with compact, efficient wireless communication!
