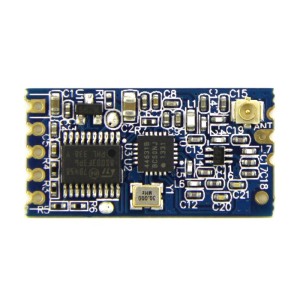

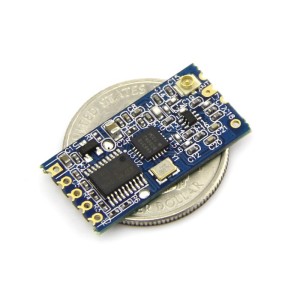

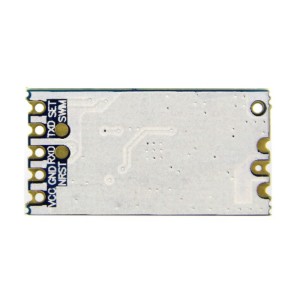

HC-12 433Mhz Wireless Serial Transceiver Module - 1 Kilometer

RBD-0440

  • 433MHz operation
  • Ultra-low power consumption (3.5mA or 22mA depending on mode) with sleep option (80μA).
  • 10dBm output power and high sensitivity providing long range in the open environment.
  • 3V-6V operating voltage.
  • Serial pass-through mode to replace the serial cable (half duplex).
  • IO pass-through modes. RoboticsBD

BDT 590
BDT 590 BDT 590 BDT 590 BDT 590
Tax excluded Tax includedTax excludedTax includedTax excluded
BDT 590 Tax excluded
BDT 590 Tax included
BDT 0 Tax
BDT 590 Tax excluded
BDT 0 Tax
BDT 590 Tax included
Quantity
In-Stock
49 Items

46 people have purchased this item
49 items in stock
Description

HC-12 wireless serial port communication module is a new-generation multichannel embedded wireless data transmission module. Its wireless working frequency band is 433.4-473.0MHz, multiple channels can be set, with the stepping of 400 KHz, and there are totally 100 channels. The maximum transmitting power of module is 100mW (20dBm), the receiving sensitivity is -117dBm at baud rate of 5,000bps in the air, and the communication distance is 1,000m in open space. RoboticsBD

The module is encapsulated with stamp hole, can adopt patch welding, and its dimension is 27.8mm×14.4mm×4mm (including antenna cap, excluding spring antenna), so it is very convenient for customers to go into application system. There is a PCB antenna pedestal ANT1 on the module, and user can use external antenna of 433M frequency band through coaxial cable; there is also an antenna solder eye ANT2 in the module, and it is convenient for user to weld spring antenna. User could select one of these antennas according to use requirements. RoboticsBD

There is MCU inside the module, and user don’t need to program the module separately, and all transparent transmission mode is only responsible for receiving and sending serial port data, so it is convenient to use. The module adopts multiple serial port transparent transmission modes, and user could select them by AT command according to use requirements. The average working current of three modes FU1, FU2 and FU3 in idle state is 80μa, 3.6mA an 16mA respectively, and the maximum working current is 100mA (in transmitting state). Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. Long-distance wireless transmission (1,000m in open space/baud rate 5,000bps in the air)
  2. Working frequency range (433.4-473.0MHz, up to 100 communication channels)
  3. Maximum 100mW (20dBm) transmitting power (8 gears of power can be set)
  4. Three working modes, adapting to different application situations
  5. Built-in MCU, performing communication with external device through serial port
  6. The number of bytes transmitted unlimited to one time

Specification :

  1. Working frequency: 433.4MHz to 473.0MHz
  2. Supply voltage: 3.2V to 5.5VDC
  3. Communication distance: 1,000m in the open space
  4. Serial baud rate: 1.2Kbps to 115.2Kbps（default 9.6Kbps）
  5. Receiving sensitivity: -117dBm to -100dBm
  6. Transmit power: -1dBm to 20dBm
  7. Operating temperature: -40℃ to +85℃
  8. Dimensions: 27.8mm x 14.4mm x 4mm

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating Voltage (VDC)3.3 ~ 5
Frequency Range434 MHz
Communication Distance1M to 40M (indoor)
Serial Baud Rate1.2Kbps to 115.2Kbps
Receiving Sensitivity-117dBm to -100dBm
Transmit Power1dBm to 20dBm
Interface ProtocolUART/TTL
Operating Temperature (°C)-40 to 90
PCB Size ( L x W ) mm28 x 14
Antenna Length (mm)16
Shipment Weight0.07 kg
Shipment Dimensions4 × 4 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

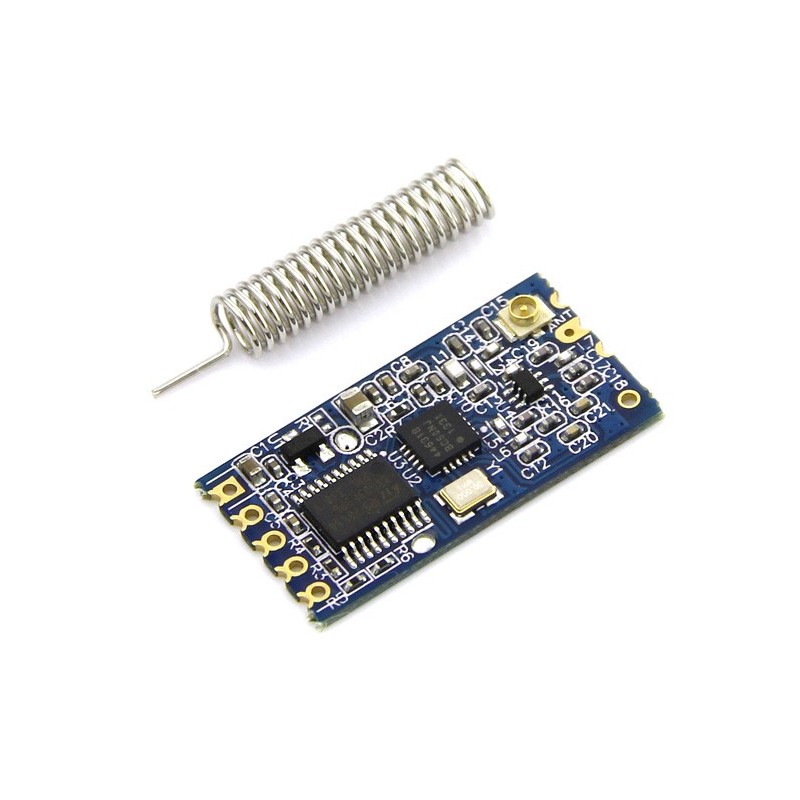

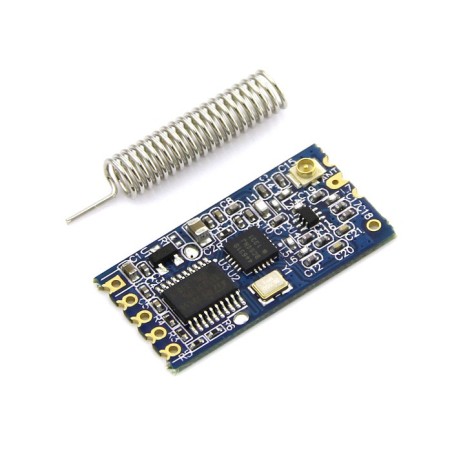

Package Includes :

1  x 433Mhz Wireless Serial Transceiver Module - 1 Kilometer

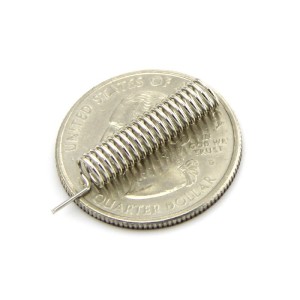

1  x  Spring antenna.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0440
49 Items

Specific References

EAN13
0440
